1 / 6Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]
- 61,440Wh of storage61.4 kWh usable energy for longer runtimes.
Chat with our team, call support or check your expected loads before ordering.
Rich Solar SRx12-H12Kx1-NO NOVA 12K Hybrid Inverter & 61.44kWh Battery Kit
The Rich Solar SRx12-H12Kx1-NO is a large 48V solar storage kit built around one NOVA 12K split-phase hybrid inverter and twelve ALPHA 5 PRO server rack LiFePO4 batteries. With 61.44kWh of included battery storage, 120/240V split-phase output support, high PV input capacity, Wi-Fi monitoring, BMS communication, and two included battery racks, this kit is designed for serious home backup, off-grid, and hybrid solar power systems.
Kit Includes
This kit combines the core inverter, battery storage, and rack components needed to build a large 48V hybrid solar and backup power system.
Product Overview
The Rich Solar SRx12-H12Kx1-NO is designed for customers who need a larger solar battery storage system with serious backup power capability. The included NOVA 12K hybrid inverter supports split-phase power, high PV input, generator input, AC coupling, Wi-Fi monitoring, BMS communication, and advanced safety features, making it a strong foundation for residential backup, off-grid buildings, farms, workshops, and hybrid solar installations.
With twelve ALPHA 5 PRO batteries included, this kit provides 61.44kWh of lithium iron phosphate storage from the start. That makes it a much larger storage package than a basic backup system and a strong option for customers who want extended runtime, battery expansion capability, and a more complete 48V energy storage setup.
The ALPHA 5 PRO batteries include built-in BMS protection, long cycle life, low-maintenance operation, inverter compatibility, and RS485, RS232, and CAN communication ports. Each battery provides 5.12kWh of storage, and the included racks help organize the system into a cleaner server-style battery layout.
Best Uses
- Whole-home solar backup systems
- Large 48V battery storage installations
- Off-grid homes, cabins, farms, and workshops
- Hybrid solar systems using grid, battery, and solar power
- Generator-supported backup power systems
- AC-coupled solar and storage projects
- Customers who want large battery capacity from the start
Key Benefits
- Includes one NOVA 12K split-phase hybrid inverter
- Includes twelve ALPHA 5 PRO 5.12kWh LiFePO4 batteries
- 61.44kWh total included battery capacity
- 12000W maximum PV input and 10000W rated output
- Supports 120/240V split-phase and 120/208V split-phase configurations
- Built-in AC coupled function
- Generator input compatible
- Built-in Wi-Fi for mobile monitoring
- RS485 BMS communication support
- User-adjustable charging current and voltage
- Parallel operation up to 6 inverter units
- Includes two battery racks for a cleaner battery setup

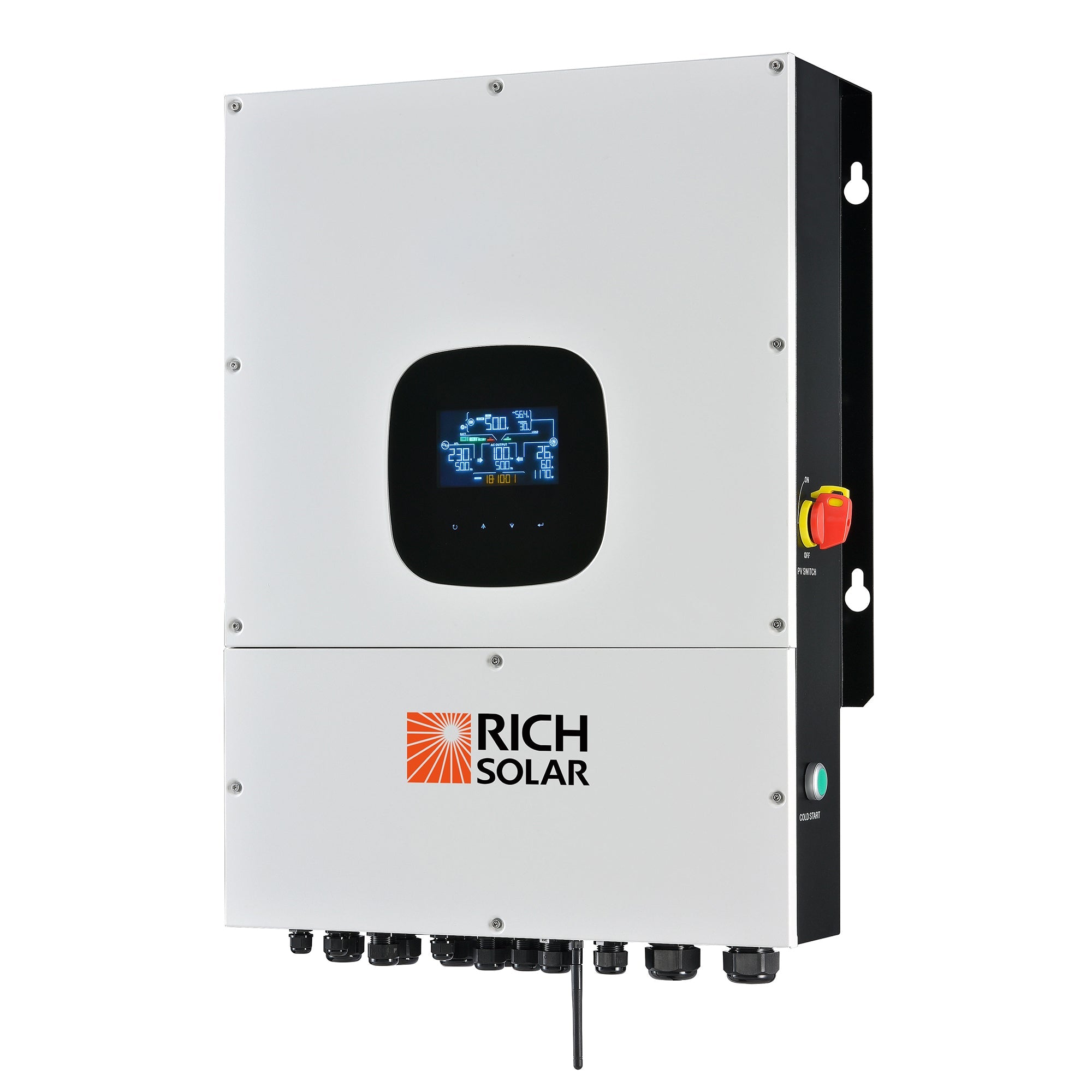

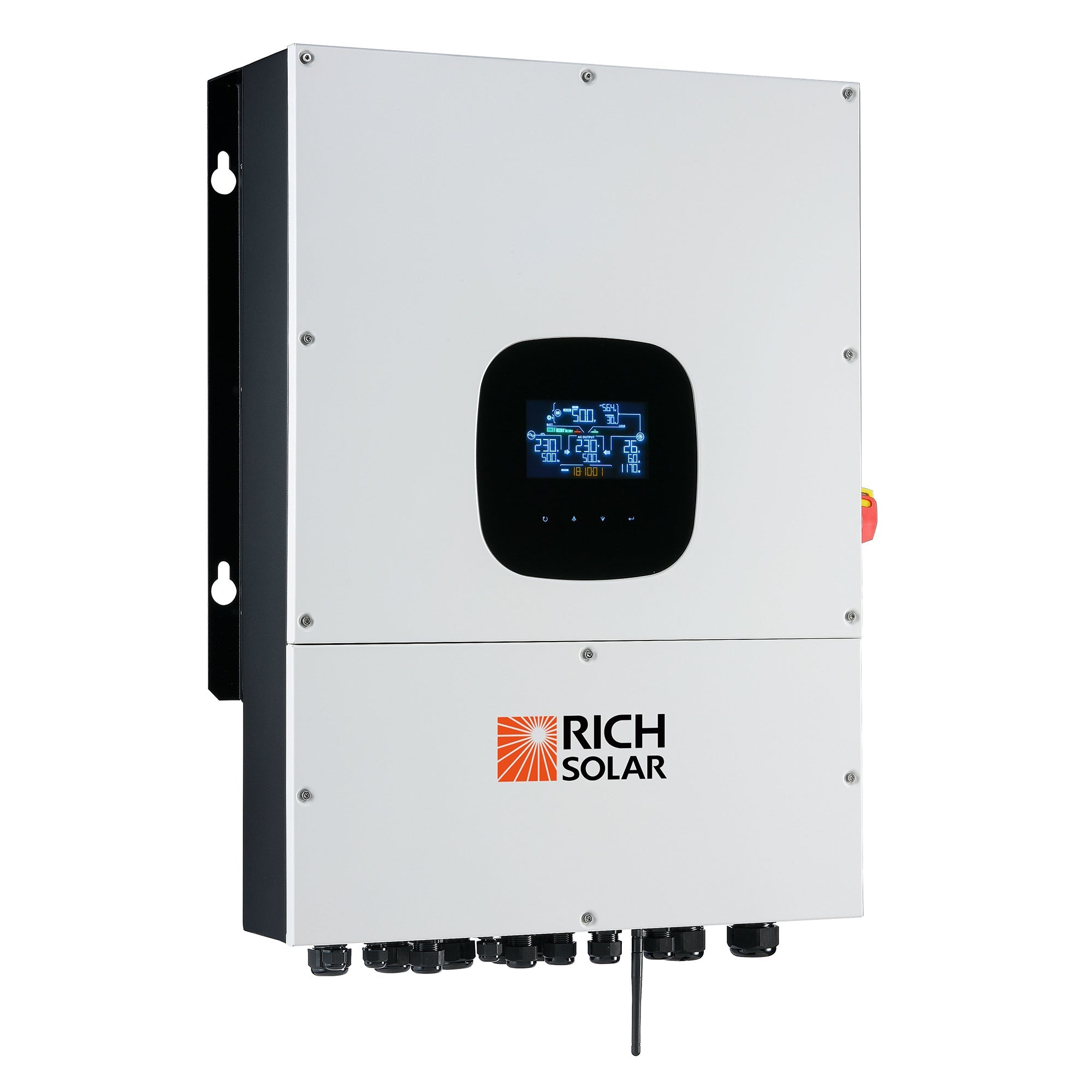

NOVA 12K Hybrid Inverter
The included NOVA 12K inverter is designed for large solar and battery systems that need split-phase output, high PV input capacity, and flexible operating modes. It supports 120/240V split-phase and 120/208V split-phase configurations, making it suitable for advanced residential and light commercial backup power designs.
The inverter includes built-in Wi-Fi monitoring, a door-style cable compartment, integrated DC and AC breakers, AC coupling support, generator input compatibility, RS485 BMS communication, arc fault detection, rapid shutdown support, and an external CT sensor for self-consumption-focused system design.
ALPHA 5 PRO Battery Storage
The included ALPHA 5 PRO batteries use lithium iron phosphate chemistry for long cycle life, stable performance, and low-maintenance energy storage. Each battery provides 5.12kWh of capacity, and this kit includes twelve batteries for a total of 61.44kWh of storage.
The batteries include a sophisticated BMS for overcharge, over-discharge, overcurrent, and short-circuit protection. Communication ports include RS485, RS232, and CAN for compatible inverter integration. The ALPHA 5 PRO platform also supports parallel expansion, making it a strong battery foundation for larger solar storage systems.
Installation & Compatibility Note
This is a high-capacity hybrid solar and battery storage system that should be designed and installed carefully. System planning should account for utility interconnection, solar array sizing, battery communication, generator input, AC coupling design, CT sensor placement, wire sizing, overcurrent protection, grounding, ventilation, permitting, and local electrical code requirements.
