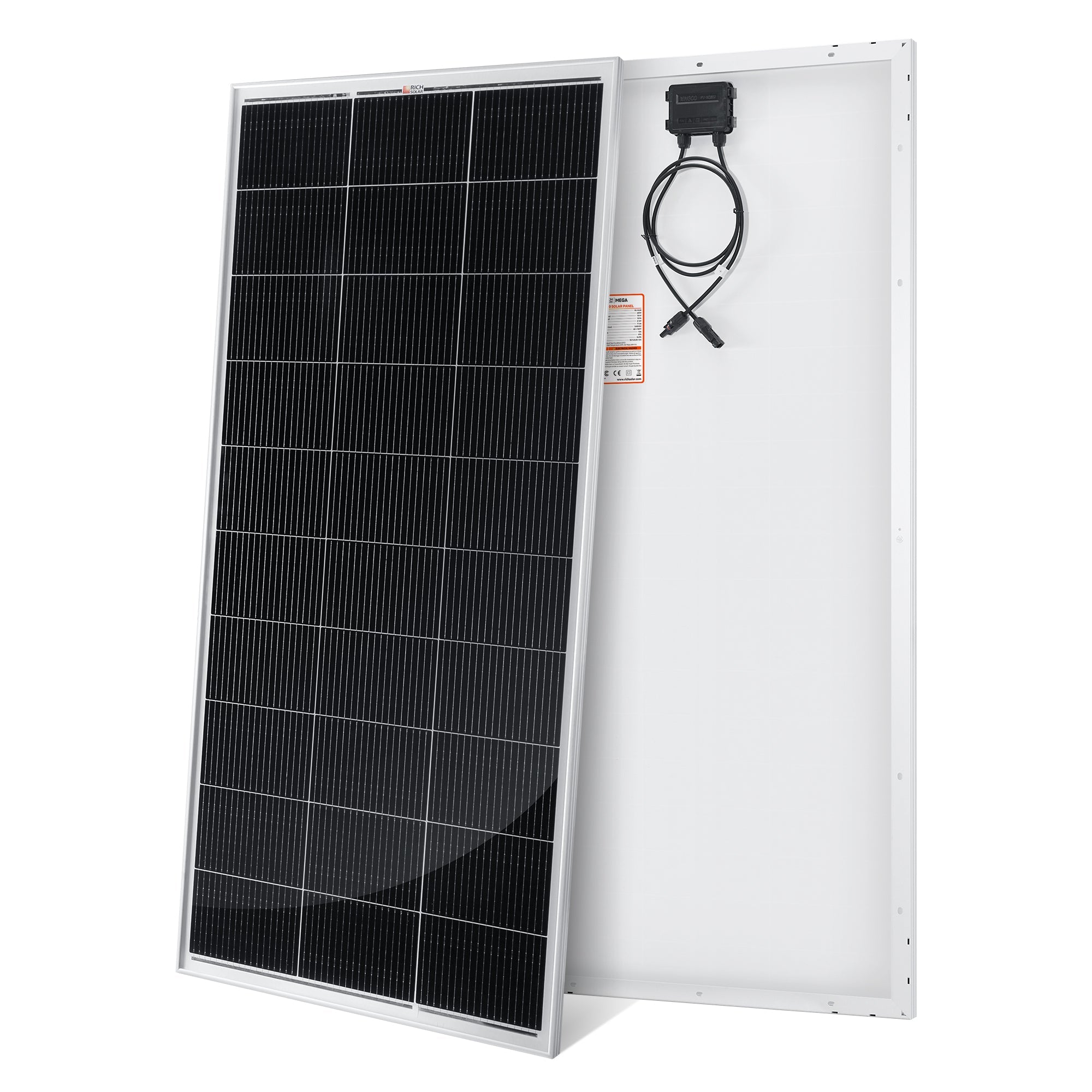

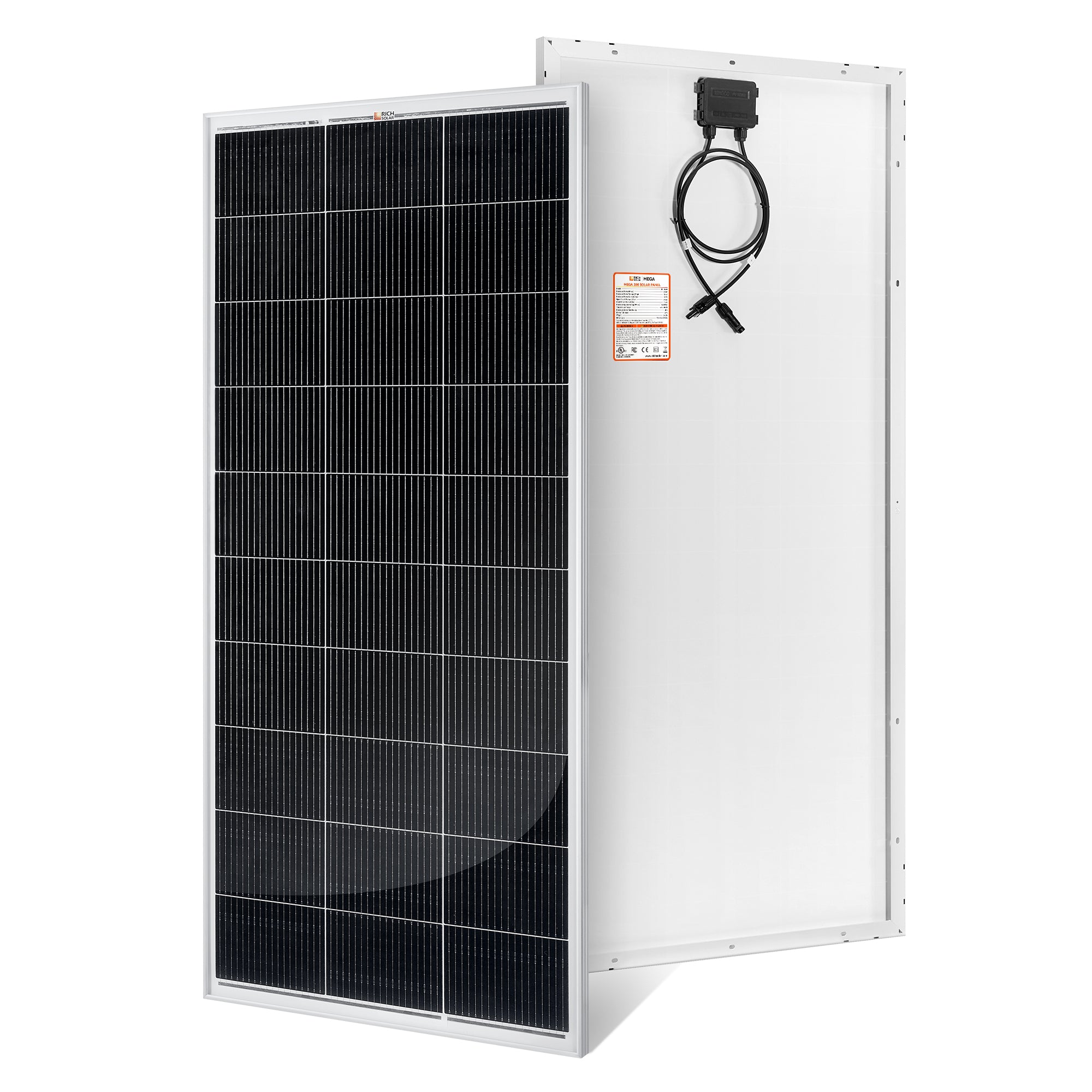

Rich Solar MEGA 200 — 200 Watt 12V Solar Panel

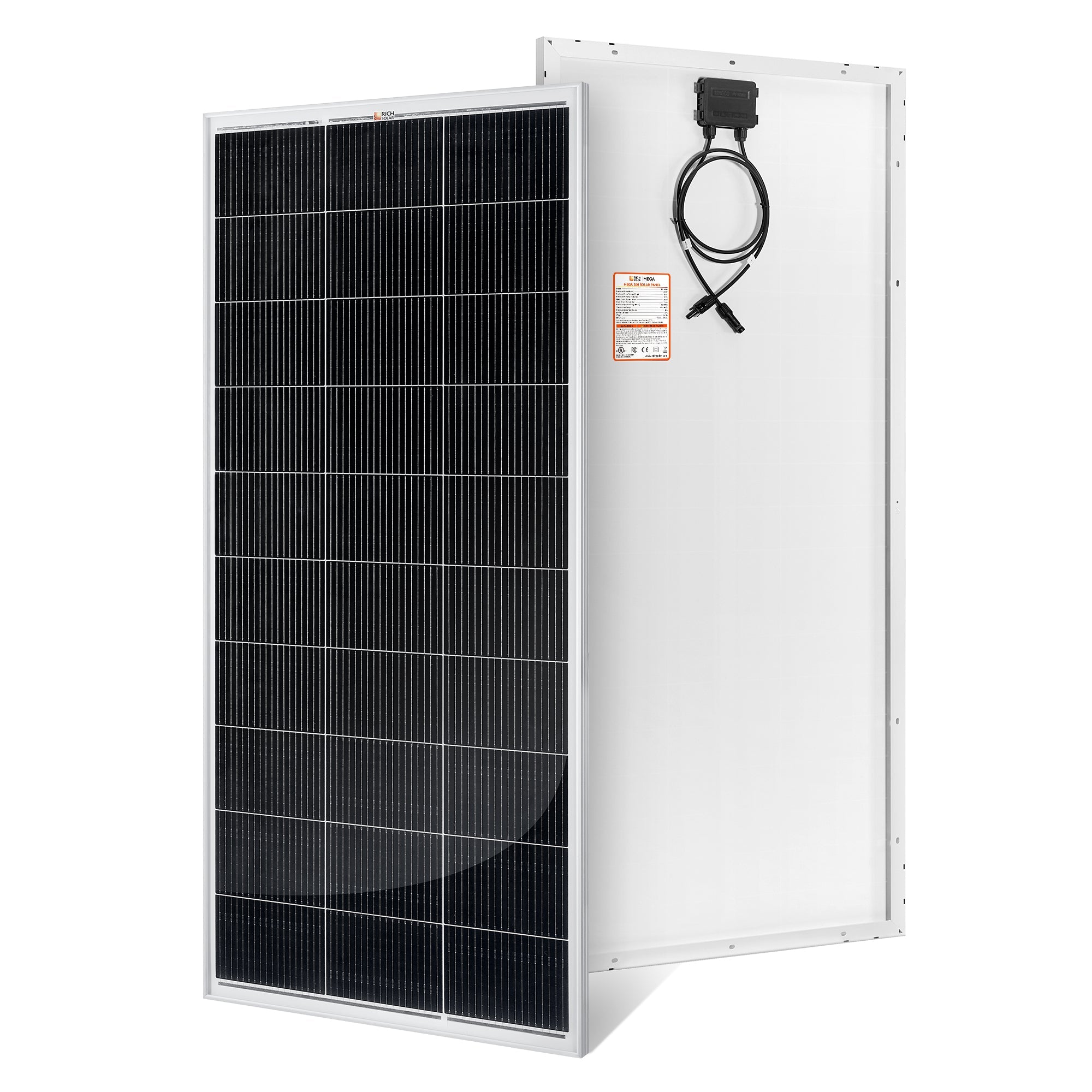

The MEGA 200 is a 200-watt, 12-volt monocrystalline solar panel built for dependable off-grid power across a wide range of mobile and stationary installations. With 24.8% maximum cell efficiency, 16-busbar half-cut monocrystalline cells, 14 pre-drilled mounting holes, and an IP67-rated plug-and-play junction box, it delivers reliable 12V solar charging for RVs, vans, boats, cabins, and DIY off-grid systems — all backed by a 25-year output warranty and 30+ in-house quality tests.
200W at 24.8% Cell Efficiency
High-efficiency 16-busbar half-cut monocrystalline cells with a 30-cell module configuration deliver 200 watts at 18.4V Vmp — purpose-built for 12V battery systems in RVs, vans, boats, and off-grid cabins.
All-Weather Certified Performance
Rated for 2400 Pa wind loads, 5400 Pa snow loads, and 35mm hail at 97 km/h. The IP67 junction box and bypass diodes maintain stable output in rain, partial shade, and year-round outdoor conditions.
25-Year Output Warranty
Backed by a 25-year linear power output warranty: 95%+ at year 5, 90%+ at year 10, and 80%+ at year 25. Every panel ships with 0~+5W positive power tolerance and passes 30+ mechanical and electrical quality tests.
Product Overview

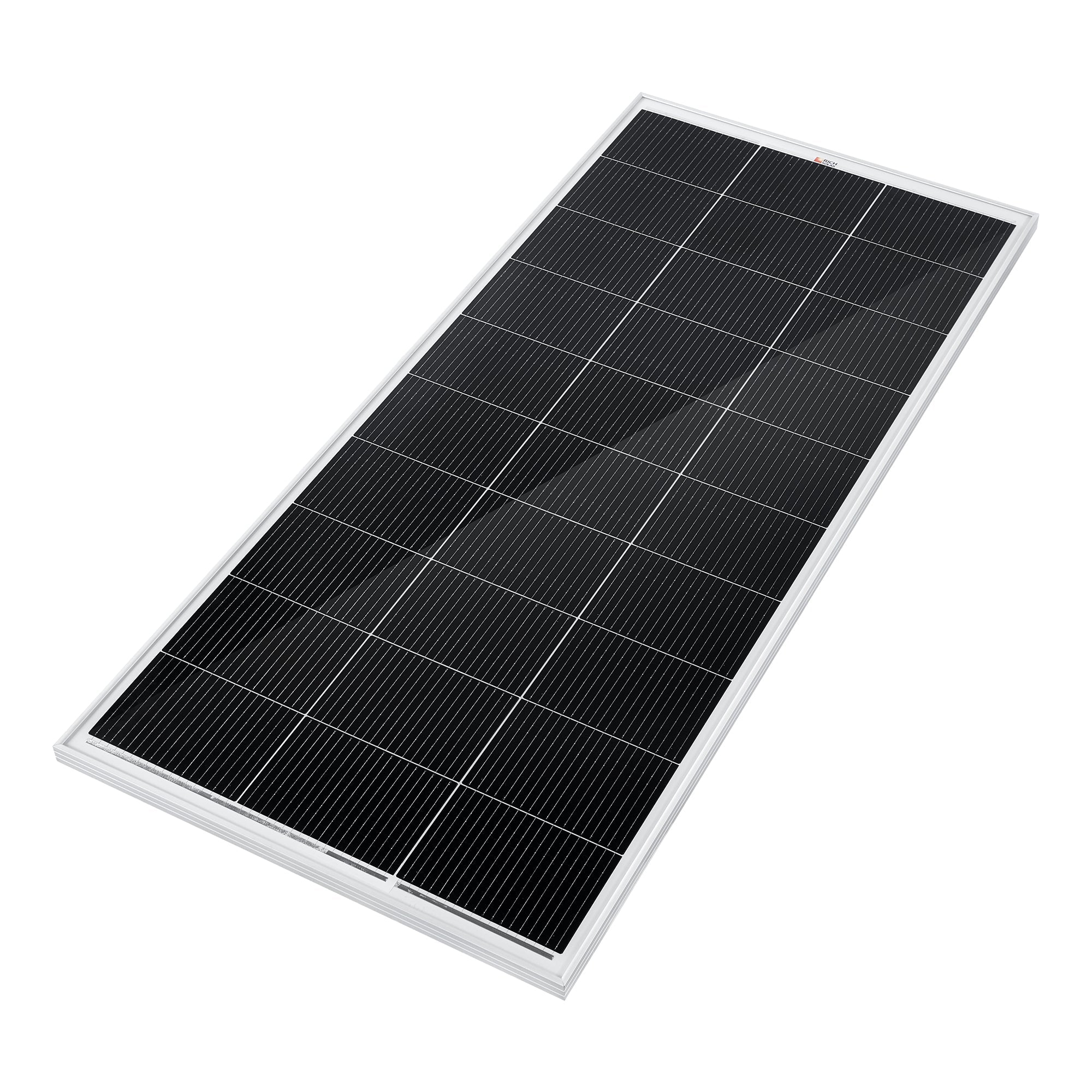

The Rich Solar MEGA 200 is a 200-watt monocrystalline solar panel designed for 12-volt off-grid systems in both mobile and stationary applications. Operating at 18.4V maximum power voltage (Vmp) and 21.8V open circuit voltage (Voc), it fits directly into standard 12V battery charging setups and pairs with both PWM and MPPT charge controllers used in RV, van, marine, cabin, and DIY applications.

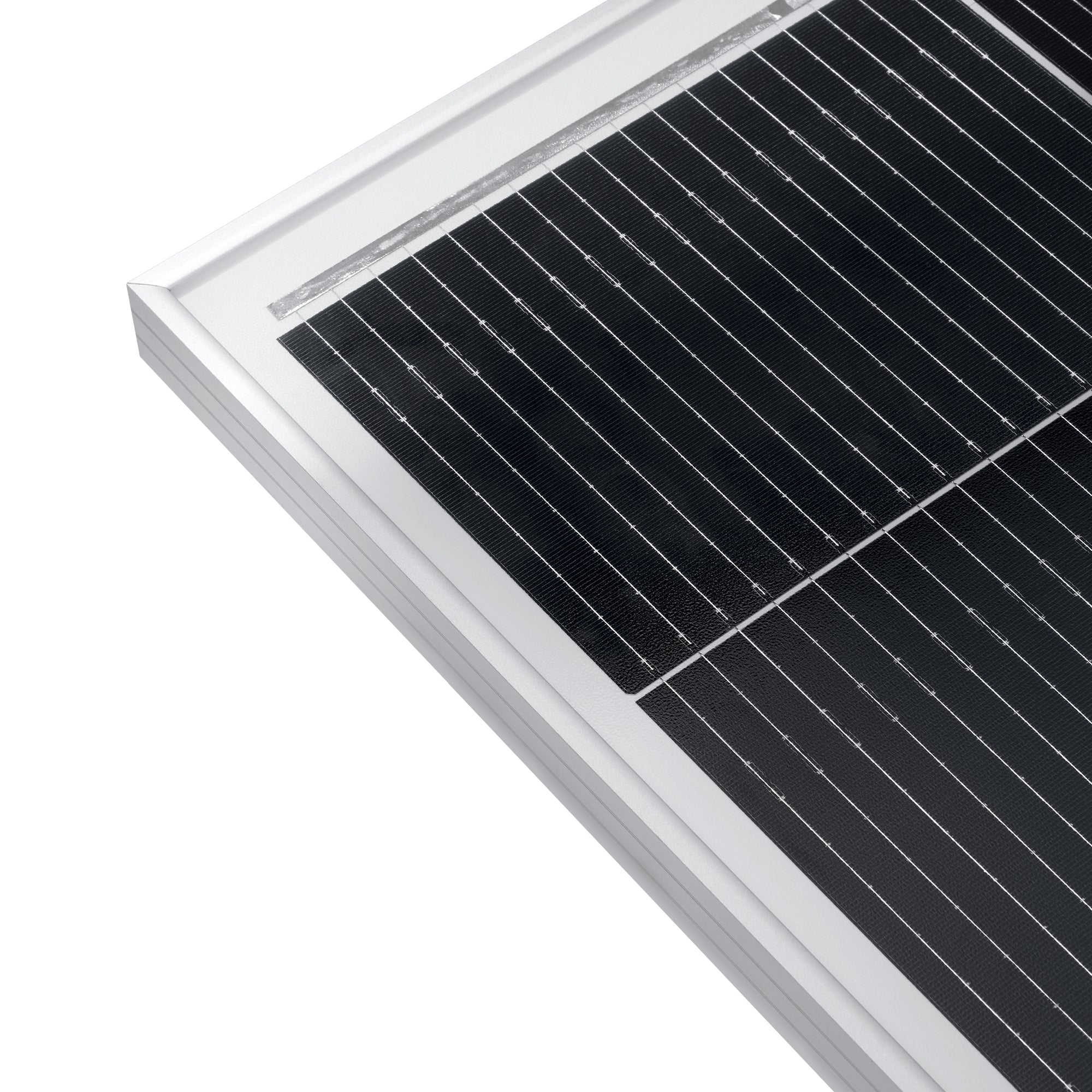

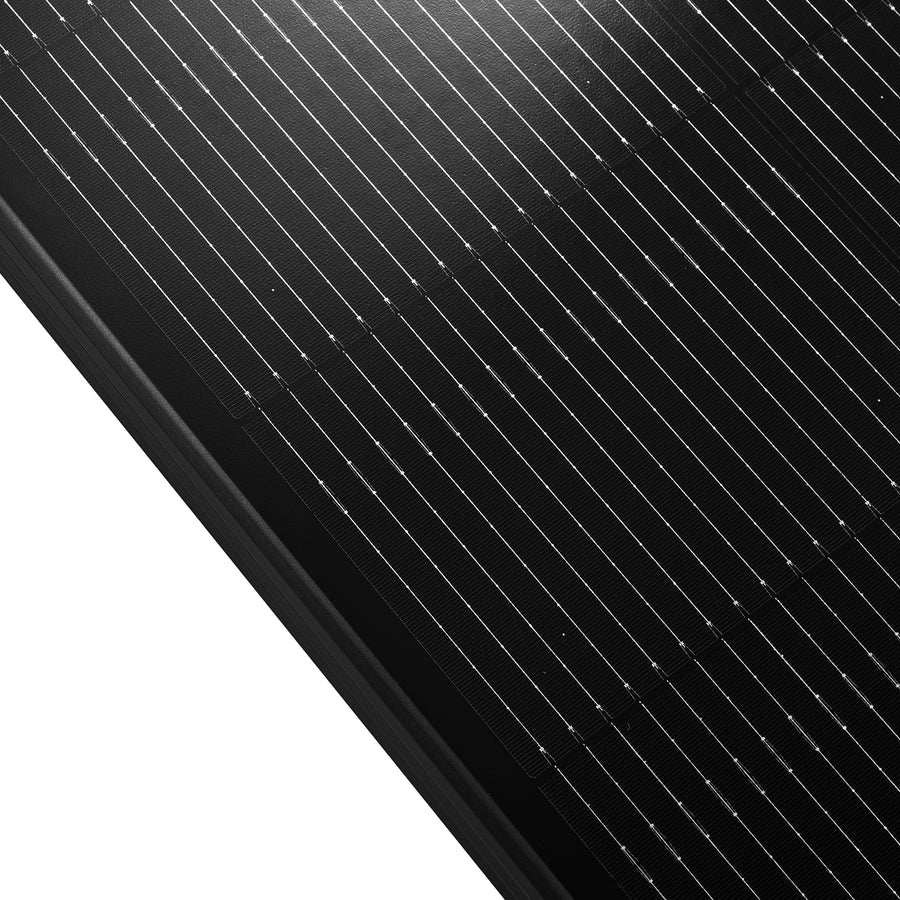

The panel's 30-cell, 16-busbar half-cut module layout is a meaningful performance advantage over older full-cell designs. Cutting each cell in half reduces the current each cell carries, which lowers resistive losses and reduces the heat generated during peak output — two of the primary causes of long-term efficiency degradation in standard panels. Combined with built-in bypass diodes, the MEGA 200 maintains more stable array output when partial shading from roof vents, antennas, tree cover, or surrounding structures reduces light to one section of the panel.

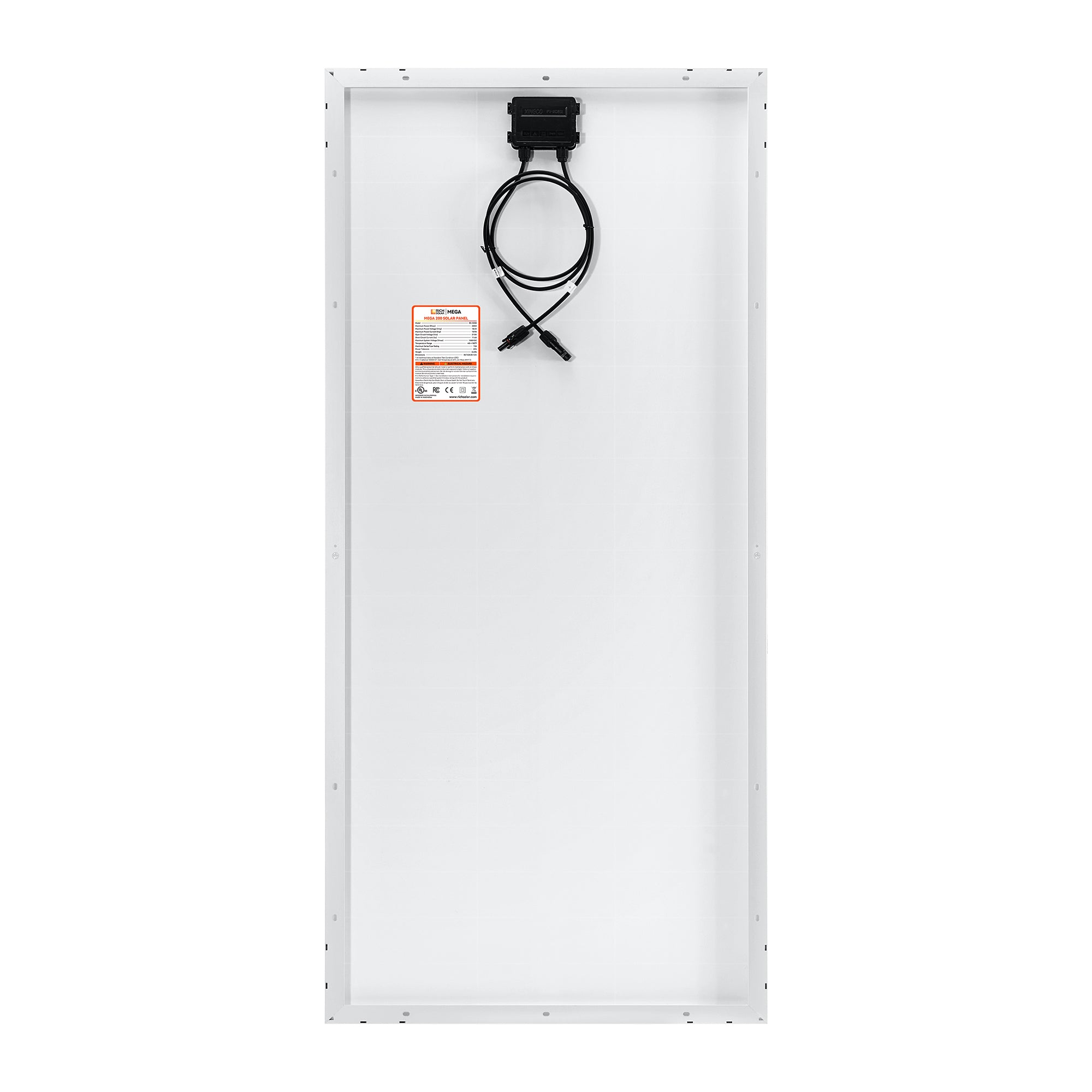

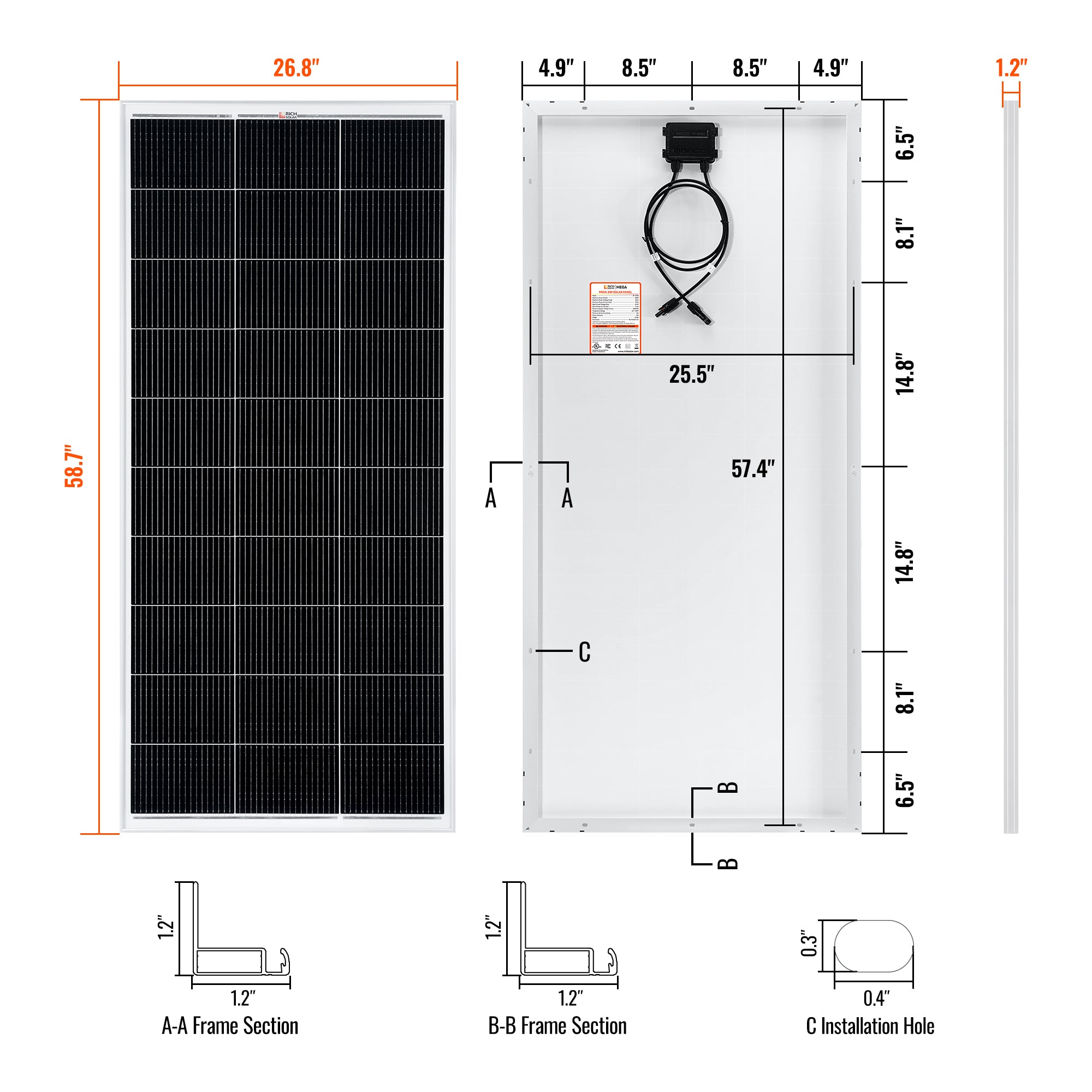

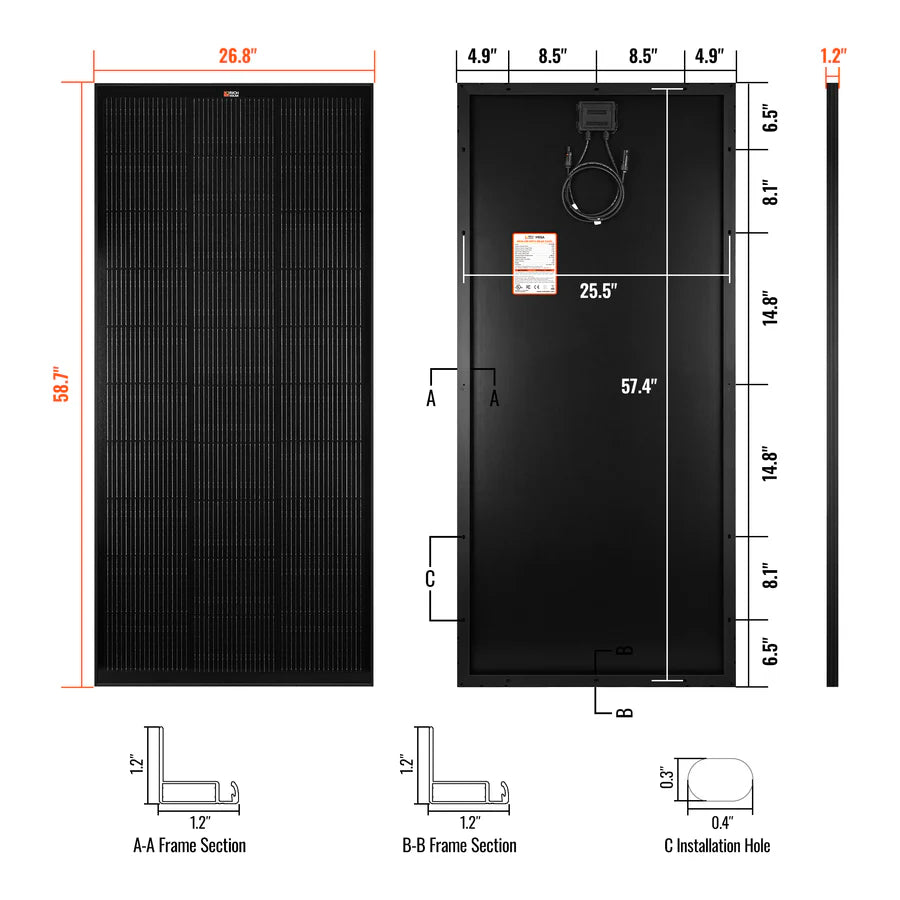

At 58.7 × 26.8 × 1.2 inches and 24.0 lbs, the MEGA 200 is manageable for solo installation. Fourteen pre-drilled mounting holes give you flexible positioning across Z-bracket, tilt-mount, pole-mount, and ground-mount hardware without additional drilling. The 35-inch on-panel cable length with plug-and-play MC4 connectors makes wiring straightforward for most rooftop and stationary installations. Available in both silver and all-black Onyx frame finishes.
Built for Extreme Weather Conditions
- Wind Load Certified: Engineered to withstand 2400 Pa wind pressure — suitable for permanent rooftop installs on RVs, cabins, and structures in high-wind regions.
- Snow Load Certified: Rated for 5400 Pa snow load — handles heavy winter accumulation without structural compromise.
- Hail Impact Resistant: Validated against 35mm hail at 97 km/h — the same impact resistance standard used across the MEGA lineup.
- Ultra-Wide Temperature Range: Operates reliably from -40°F to +185°F, covering the full range of conditions from mountain winters to desert summer rooftops.

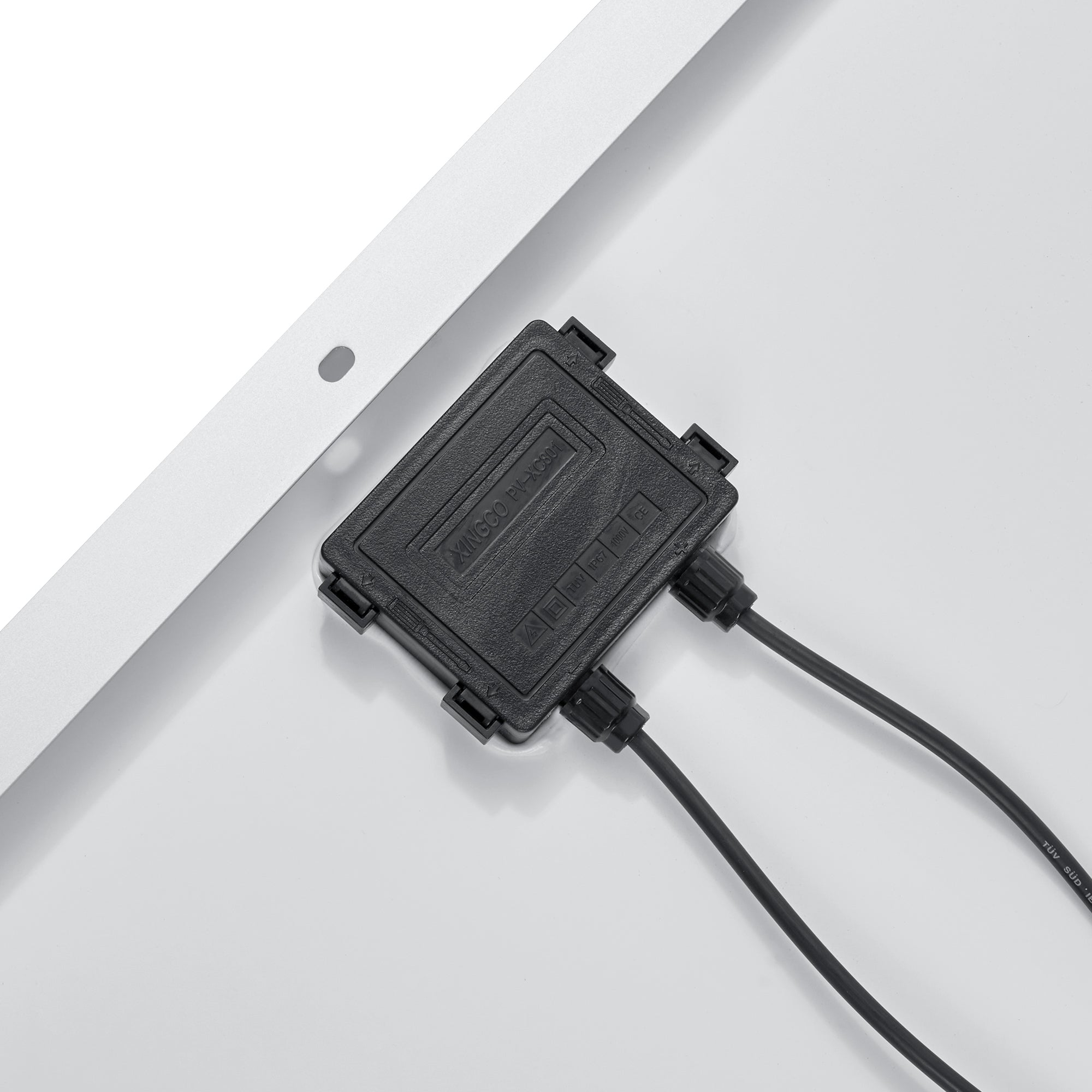

- IP67 Junction Box: Fully sealed against dust ingress and water submersion — reliable through rain, condensation, and high-humidity marine environments.

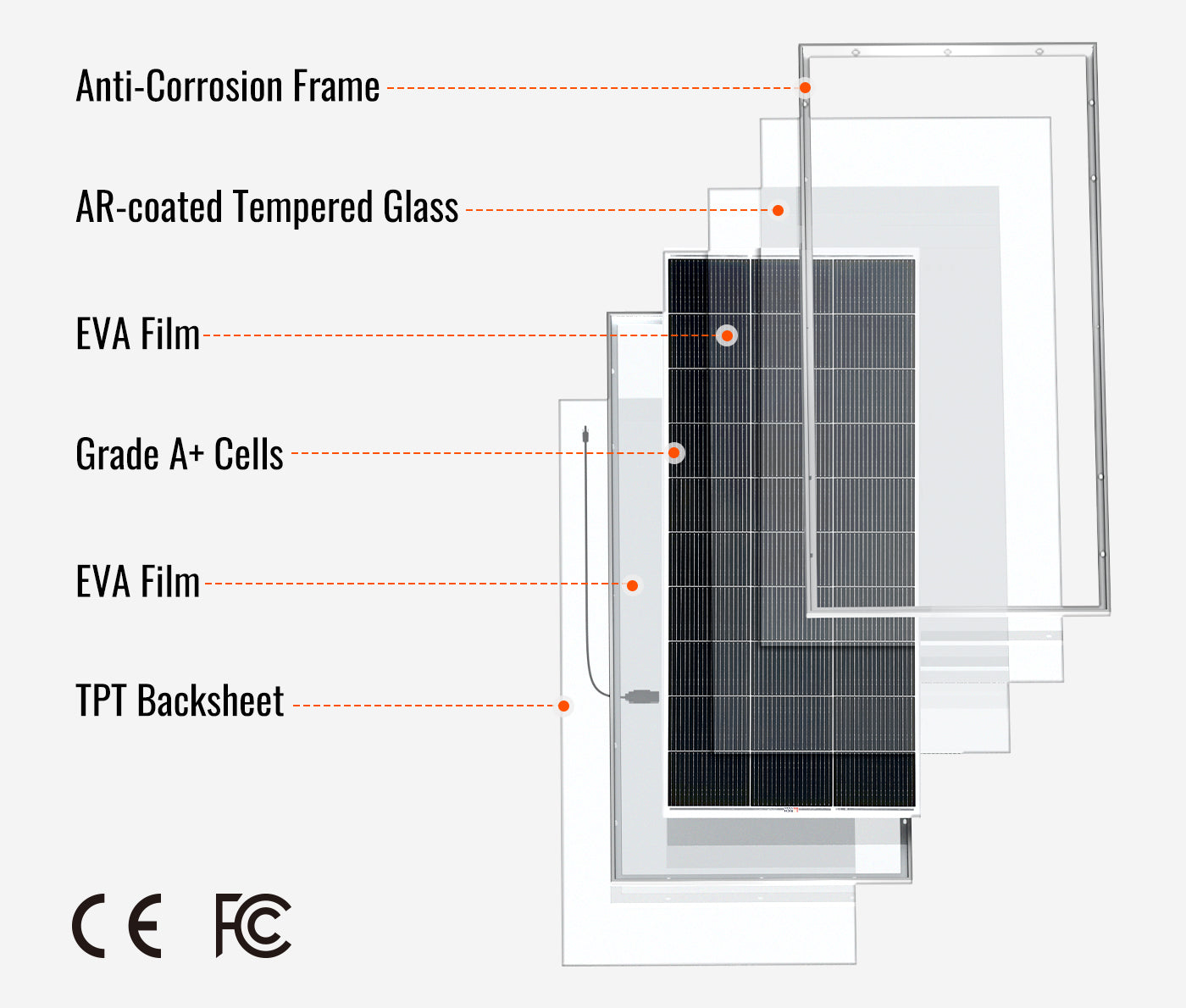

Long-Lasting Power, Grade A+ Cells

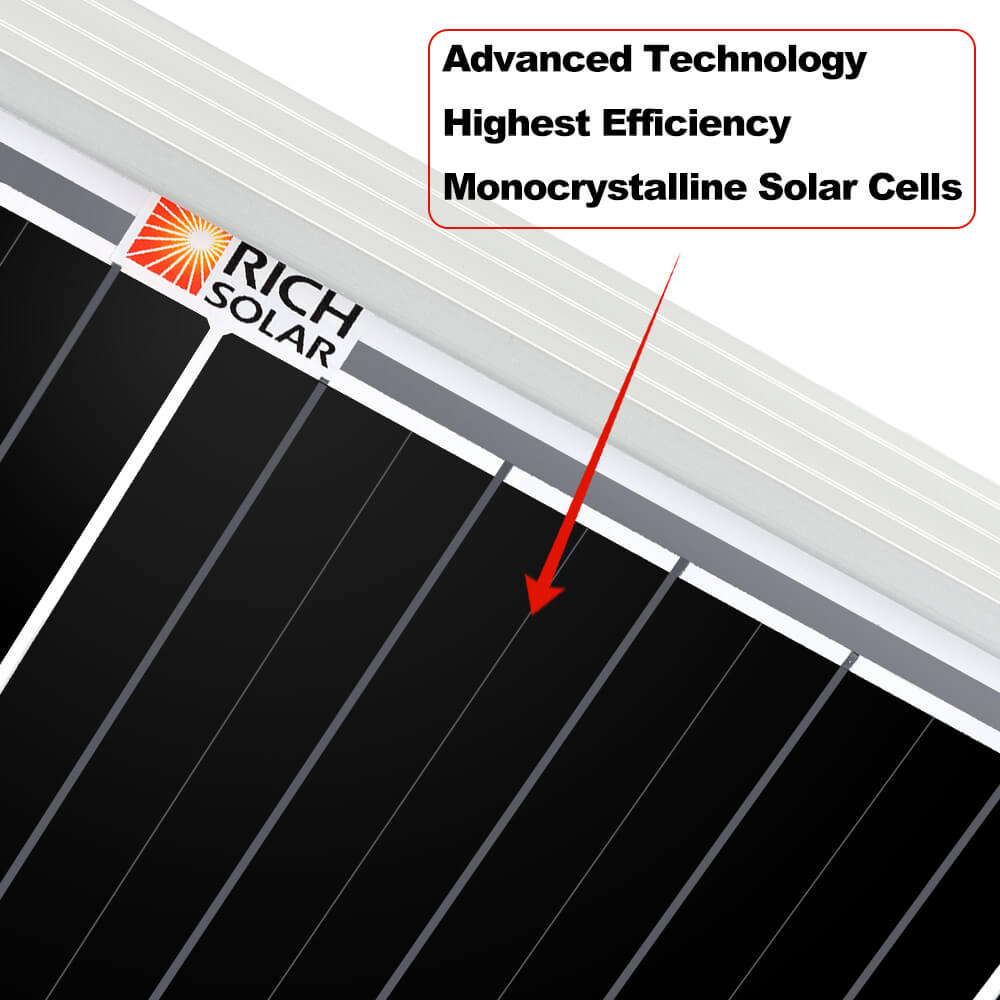

- Grade A+ Monocrystalline Cells: Premium-binned cells selected for consistent efficiency, electrical stability, and long operational service life.
- 24.8% Maximum Cell Efficiency: High-density cell design extracts more power from each square inch of panel surface than standard monocrystalline designs.
- 30+ Quality Tests: Every panel passes mechanical and electrical testing including PID resistance validation and 100% EL (electroluminescence) imaging to catch micro-cracks before shipment.
- 0~+5W Positive Tolerance: Output is tested at or above the 200W nameplate rating at standard test conditions — no underperforming panels leave the factory.
- PID Resistant: Engineered to prevent potential-induced degradation, protecting long-term output in higher-voltage string configurations.
Easy Setup, Reliable Power

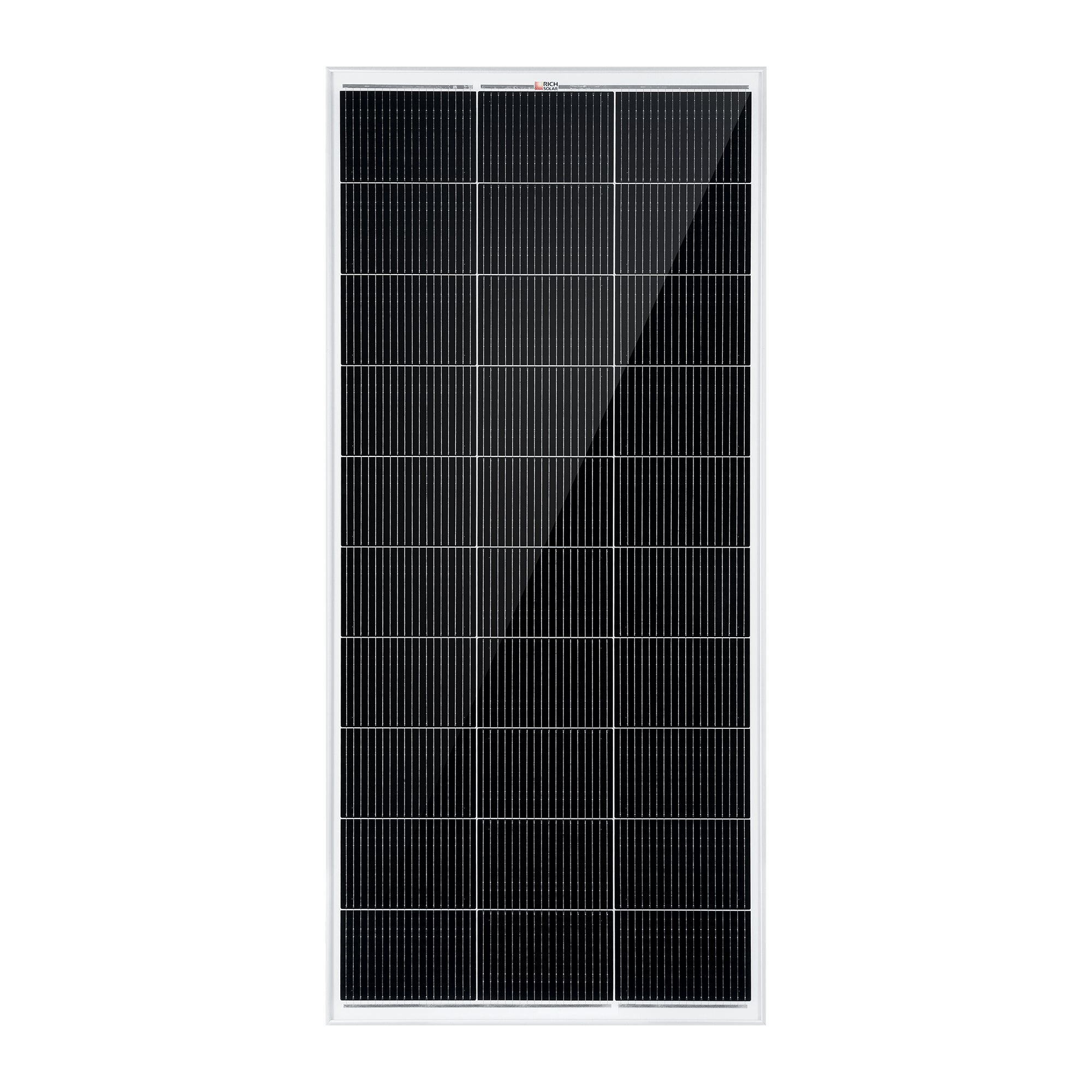

- 14 Pre-Drilled Mounting Holes: More hole positions than most competing panels — compatible with Z-brackets, tilt mounts, pole mounts, and ground-mount frames without additional drilling.

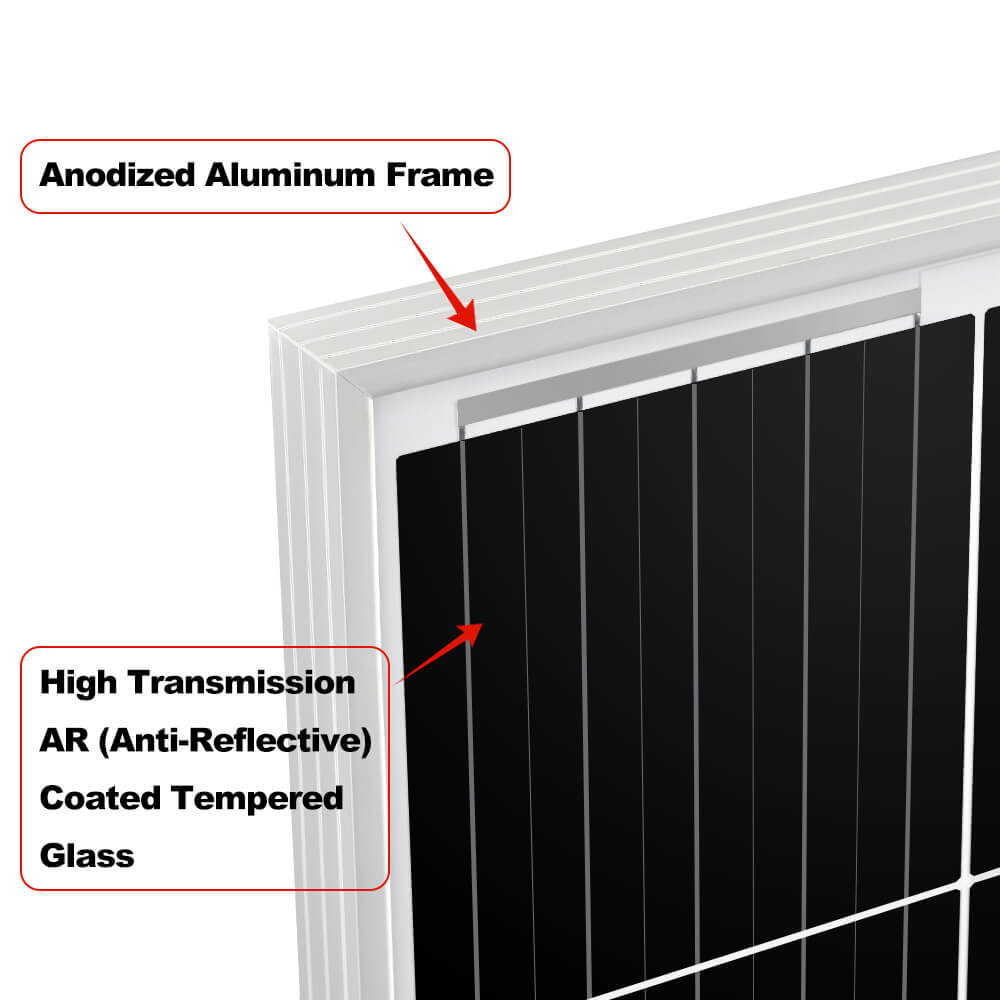

- Lightweight Anodized Aluminum Frame: At 24.0 lbs with a corrosion-resistant frame, the MEGA 200 is manageable for solo rooftop installation without specialized lifting equipment.

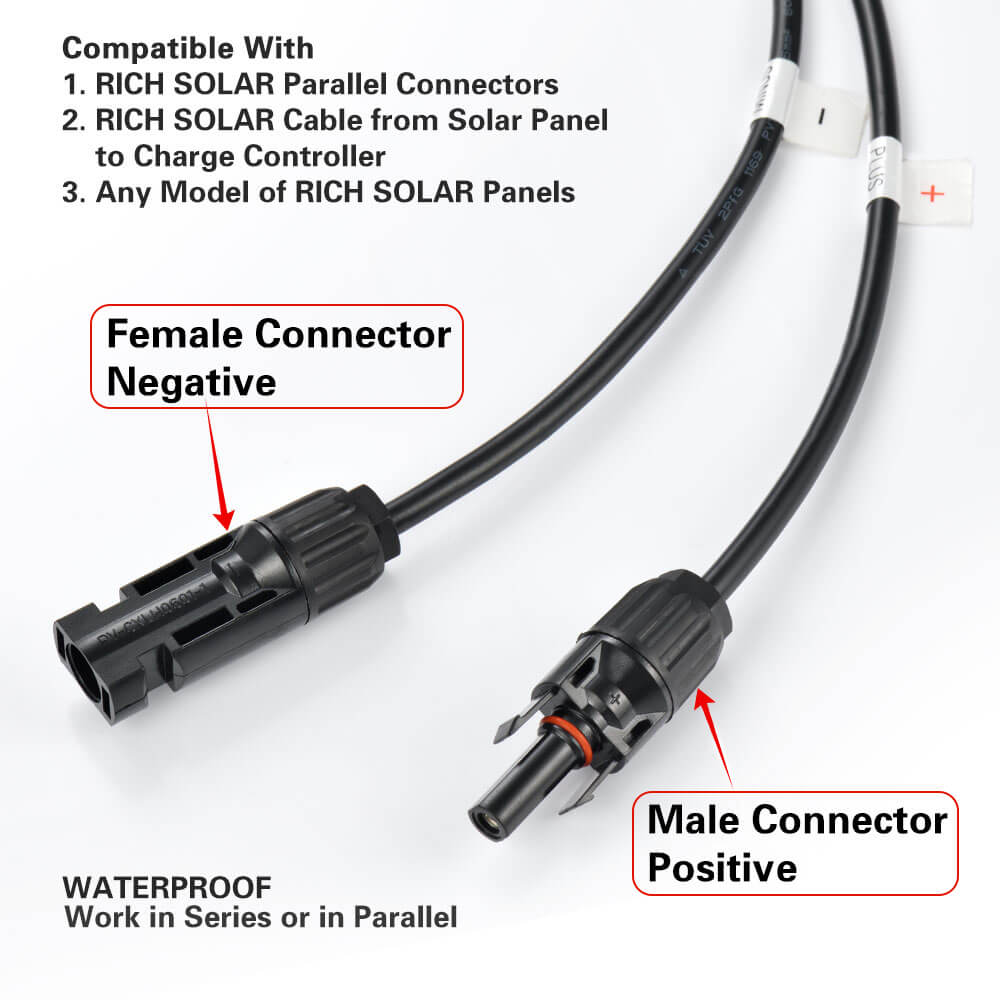

- Plug-and-Play MC4 Junction Box: IP67-rated box with pre-attached 35-inch MC4 leads for fast, tool-free connection to your charge controller or adjacent panels.
- Built-In Bypass Diodes: Prevent shaded sections of the panel from pulling down the output of unshaded cells — critical for rooftop installs near vents, racks, or antennas.

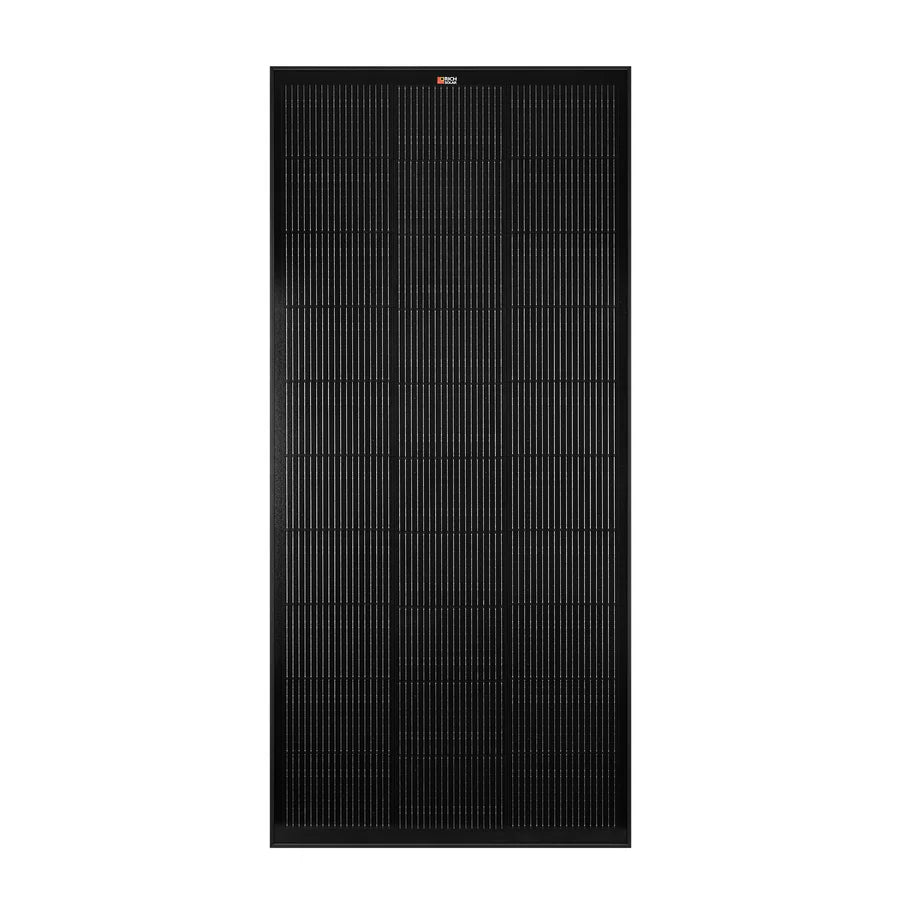

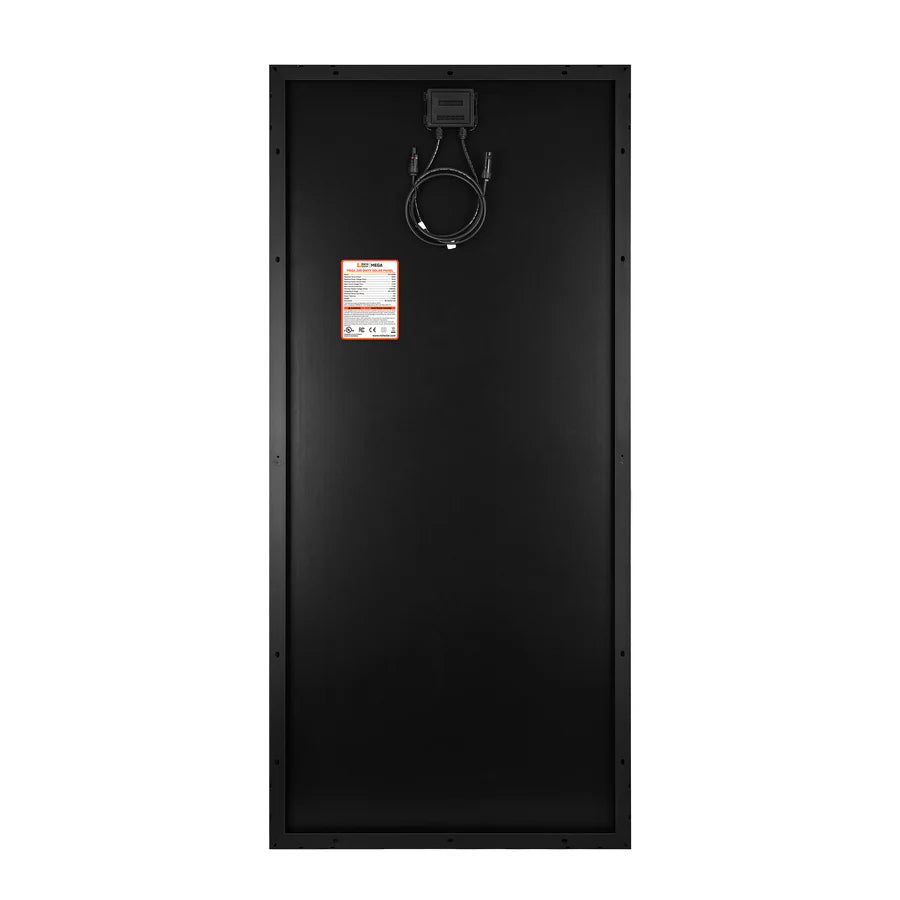

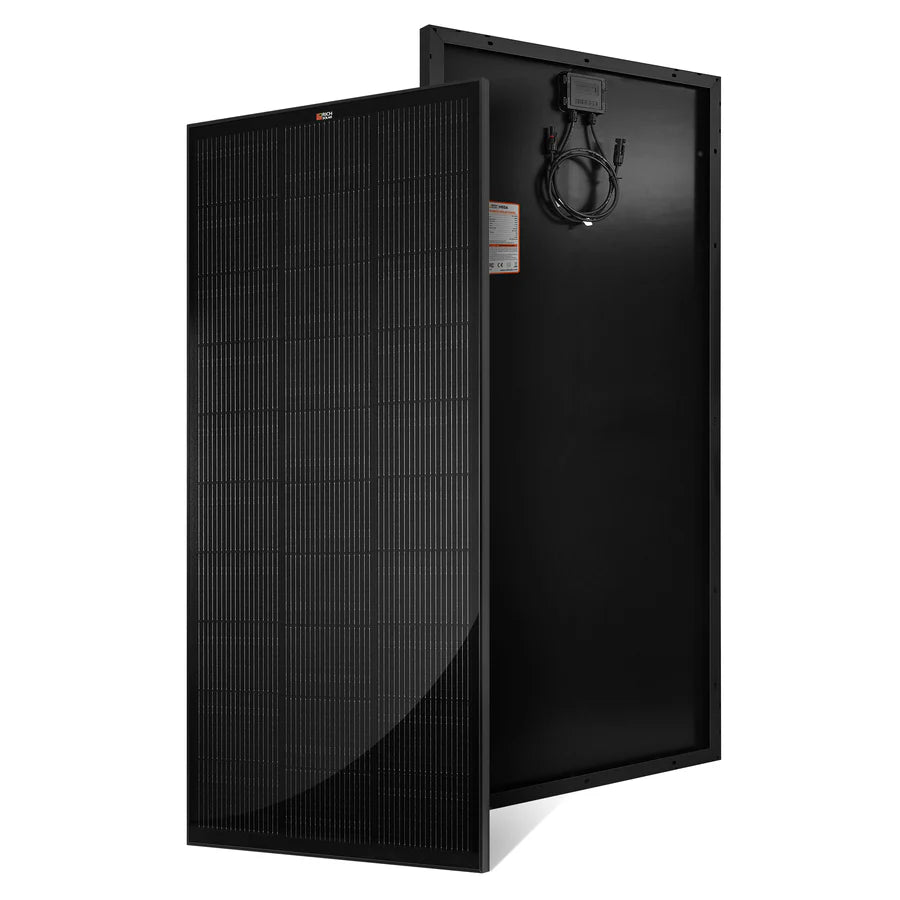

- Silver or Onyx Frame: Available in both standard silver aluminum and all-black Onyx finish to match your vehicle or installation aesthetic.
Works With Most Controllers and Inverters
- PWM & MPPT Compatible: Works with both charge controller types — pair with an MPPT controller to maximize harvest efficiency, or use with a standard PWM controller for simple setups.
- On-Grid & Off-Grid Inverter Ready: 1500V maximum system voltage supports both standard off-grid inverter configurations and grid-tie setups.
- Series or Parallel Wiring: Wire multiple MEGA 200 panels in series to raise voltage for an MPPT controller input, or in parallel to increase current for a PWM setup — flexible for 12V and 24V system builds.
- No Inverter Needed for Battery Charging: Connects directly to a charge controller for 12V battery bank charging without an inverter in the chain — simpler wiring for dedicated solar charging rigs.
- Mobile & Stationary Use: Equally suited for rooftop RV and van installations as for fixed cabin, shed, and ground-mount setups.
Best Uses

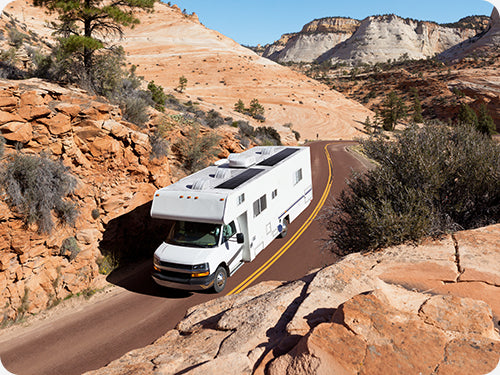

- RV and motorhome rooftop 12V solar charging
- Van builds, camper vans, and trailer solar installs
- Boat and marine 12V battery charging systems
- Off-grid cabins, tiny homes, and shed solar setups
- DIY 12V battery bank solar charging arrays
- Backup and portable ground-mount power systems
- Supplemental solar additions to existing off-grid installs
Key Benefits
- 200W at 18.4V Vmp — optimized for 12V battery systems
- 24.8% maximum cell efficiency in a 30-cell half-cut module
- 16-busbar design reduces resistive loss and hot spot formation
- 14 pre-drilled holes for flexible, drill-free mounting
- IP67 junction box with built-in bypass diodes
- Certified for 2400 Pa wind and 5400 Pa snow loads
- 0~+5W positive tolerance; 30+ QC tests including EL imaging
- 25-year output warranty; available in silver or Onyx frame
Where the MEGA 200 Gets Installed

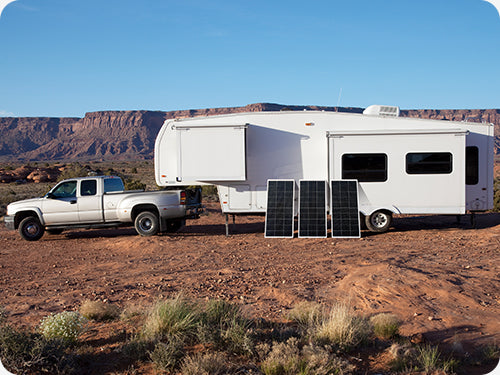

RVs

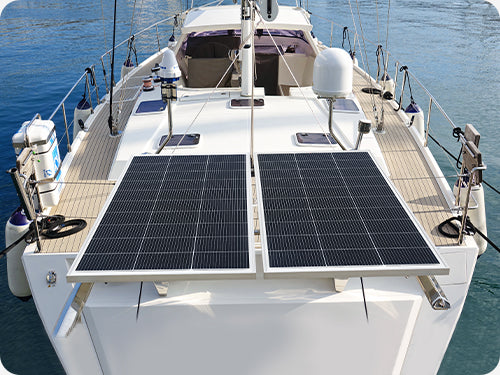

Marine
Motorhome

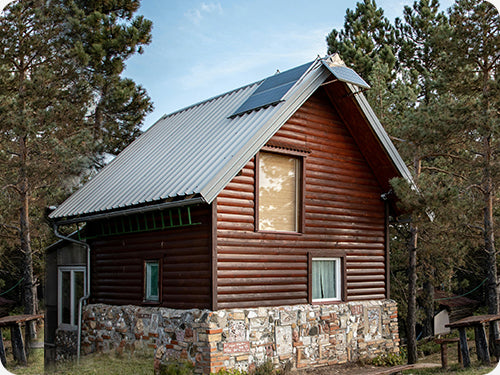

Cabin

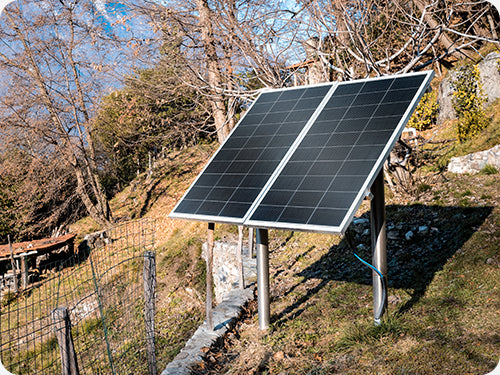

DIY Solar

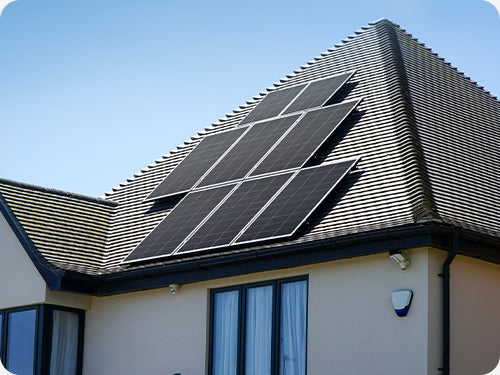

Off-Grid
