Complete Off-Grid Solar Kit RS-H6548 — 8,000W PV Input, 6,500W 120VAC Output, 16 × MEGA 410

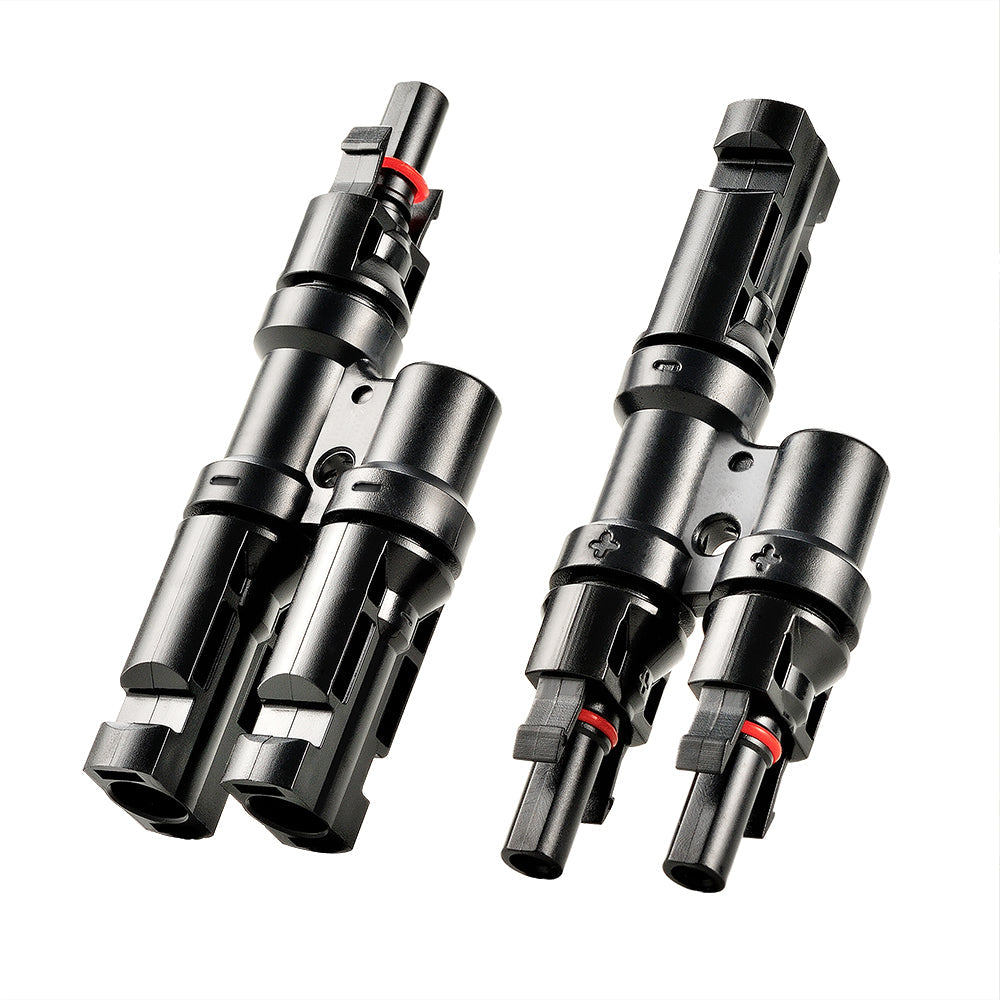

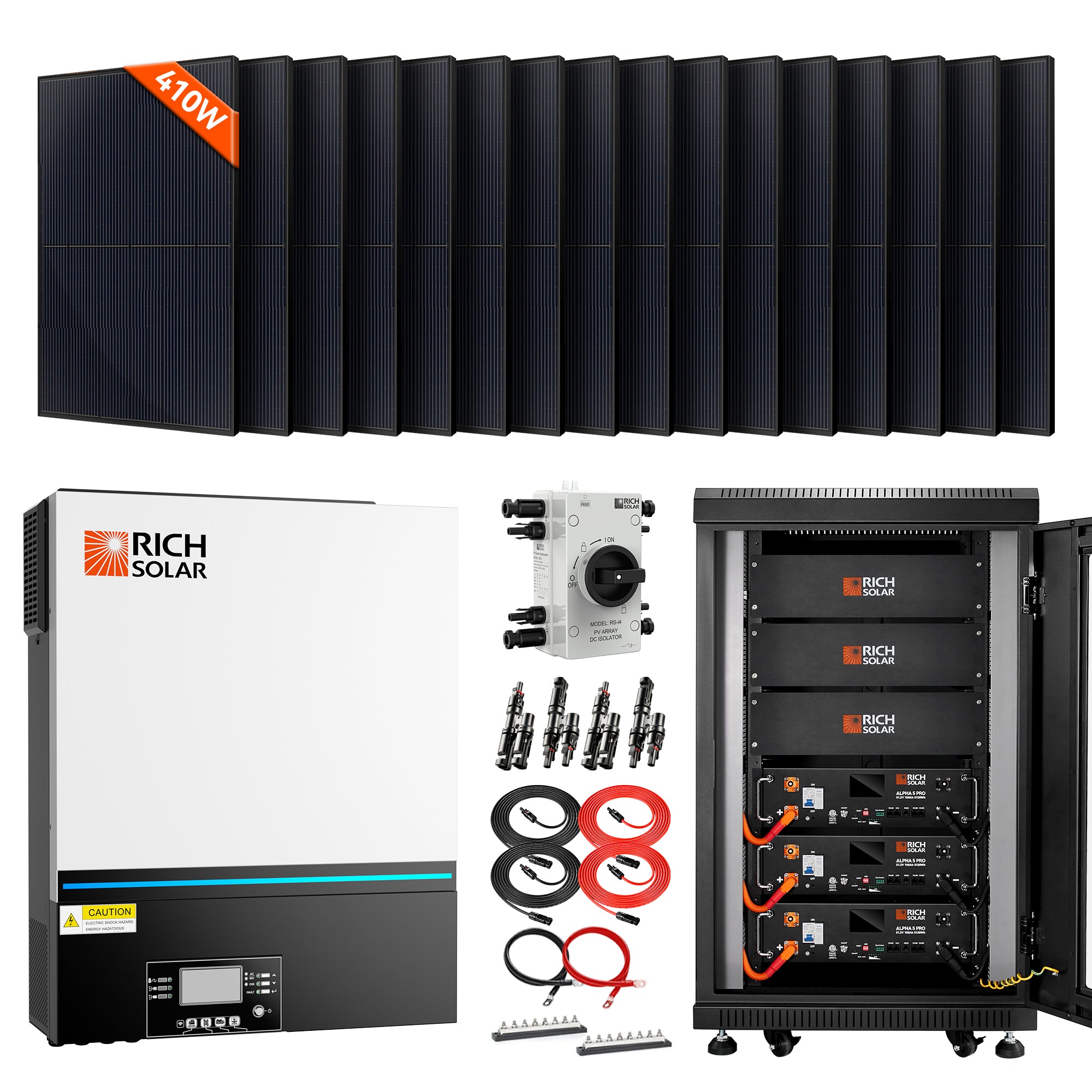

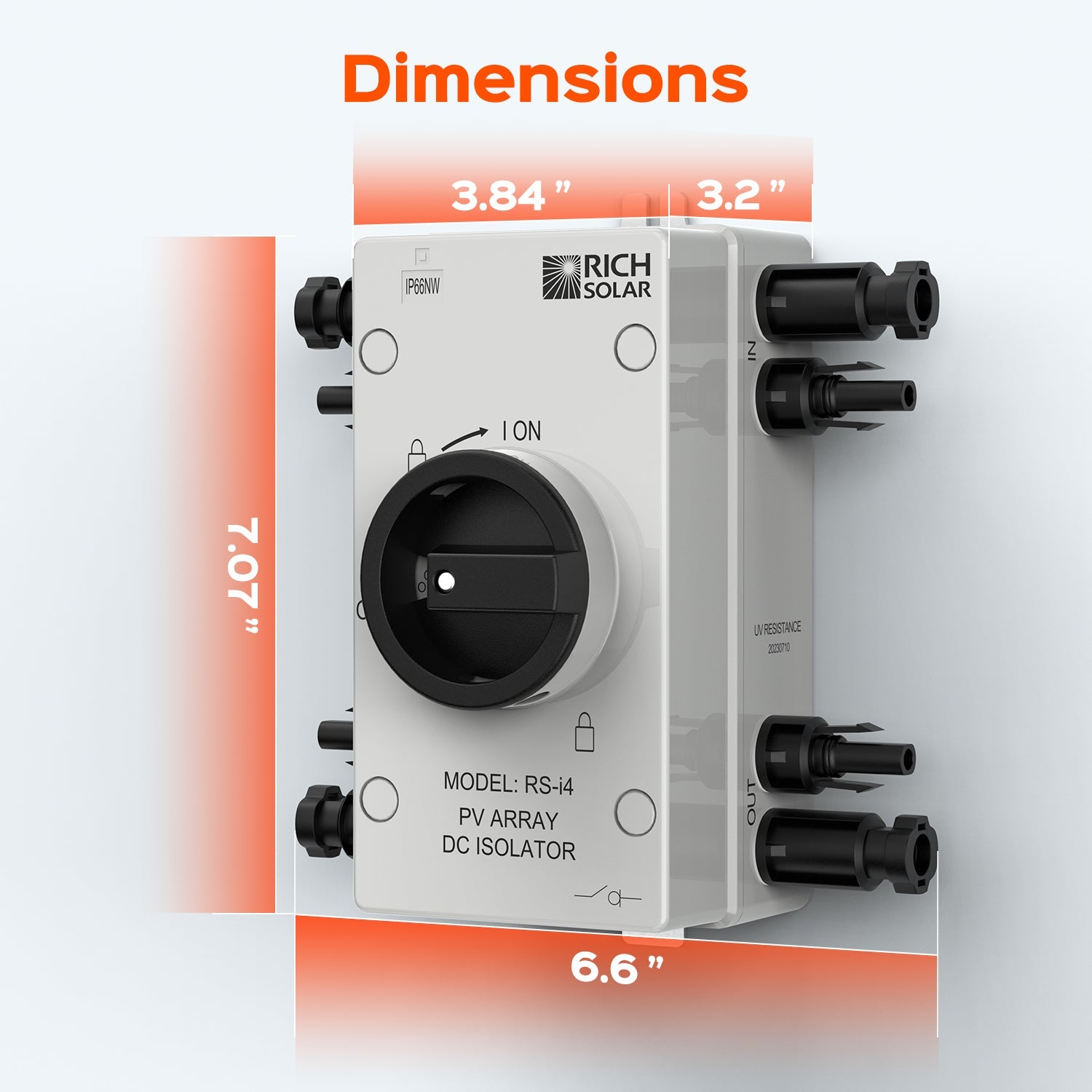

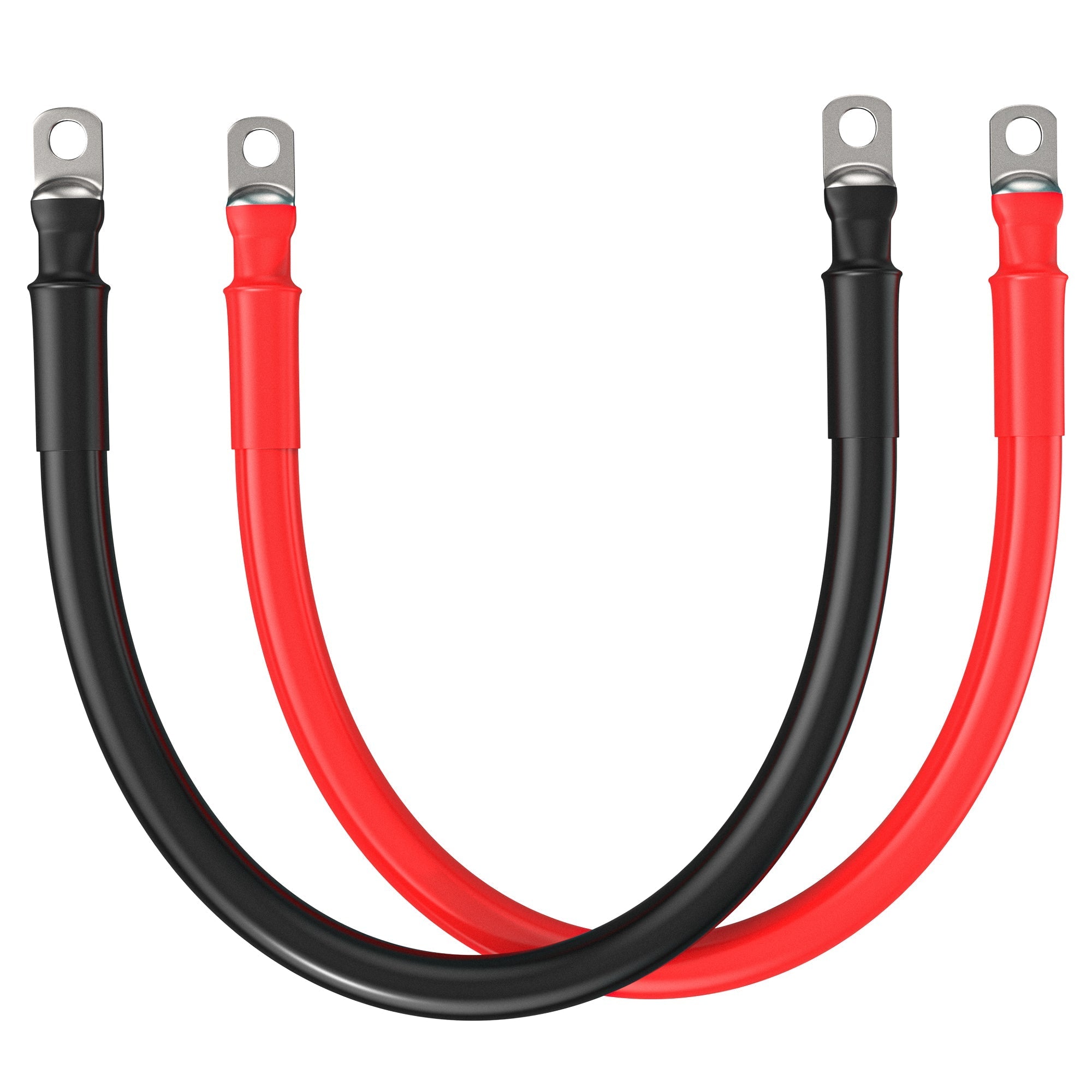

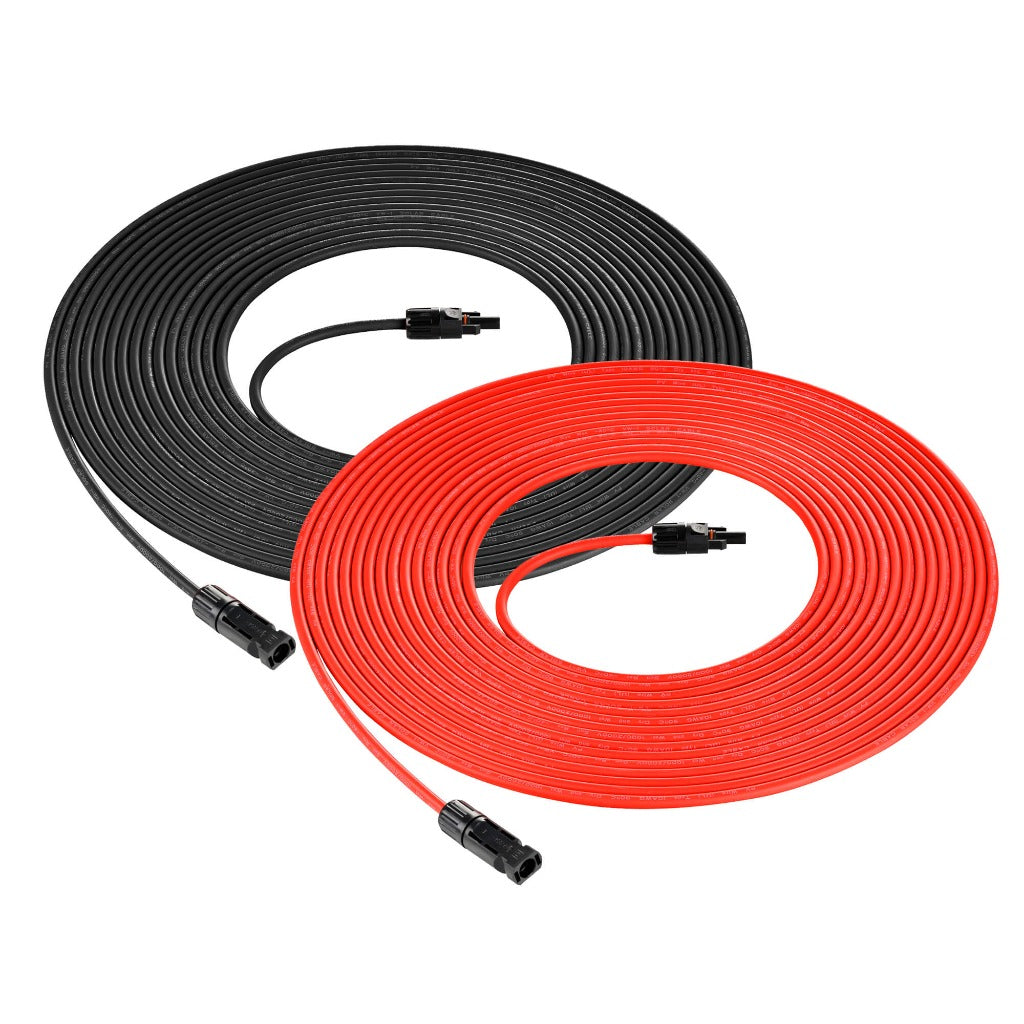

A right-sized off-grid solar system built around 16 MEGA 410 monocrystalline panels (6,560W array), a single NOVA 6548 hybrid inverter delivering 6,500W of continuous 120VAC output, and three ALPHA 5 PRO server-rack lithium batteries for 15.36kWh of usable storage. Every wiring component — disconnect, busbars, extension cables, parallel connectors — ships with the kit, along with a free battery rack to house the bank.
Complete Kit Contents
6,500W from a Single Inverter
One NOVA 6548 inverter delivers the full 6,500W of continuous 120VAC output with 2x surge for 5 seconds — enough for most cabin, workshop, and small-to-mid home loads without the added cost and complexity of running inverters in parallel.
15.36kWh in a Server-Rack Format
Three ALPHA 5 PRO batteries provide 15.36kWh of total energy storage in a stackable server-rack configuration, with the included free battery rack keeping the bank organized and ready to expand if your needs grow.
6,560W Array Matched to a Single 8,000W MPPT Input
Sixteen 410W panels deliver a 6,560W array sized to make full use of the NOVA 6548's 8,000W maximum PV input — enough headroom to recharge the battery bank efficiently across a typical sunny day.
System Overview
This complete off-grid solar kit is the single-inverter configuration in Rich Solar's MEGA 410 / ALPHA 5 PRO / NOVA 6548 system family — built for properties that need real off-grid AC power without the scale (or cost) of a dual-inverter, whole-home setup. The 6,560W array, single 6,500W inverter, and 15.36kWh battery bank are sized together so the array can meaningfully recharge the battery bank in a day of good sun, while the inverter comfortably carries cabin, workshop, or smaller home loads.
The NOVA 6548 includes a built-in MPPT solar charger accepting up to 8,000W of PV input, smart AC charging, Wi-Fi monitoring through Rich Solar's app, and a detachable LCD control module — giving you both a local control panel and remote visibility into system performance. While this kit ships with one inverter, the NOVA 6548 platform supports parallel operation with up to 6 units, so the system has a clear expansion path to 120/240V split-phase output and significantly higher combined wattage if your power needs grow later.
Battery storage comes from three ALPHA 5 PRO server-format LiFePO4 batteries, each rated for 5.12kWh, 100A continuous charge/discharge, and a sophisticated onboard BMS with overcharge, over-discharge, and overcurrent protection. The included battery rack organizes all three units into a single enclosure, with room to scale toward the platform's 15-battery parallel maximum down the road.

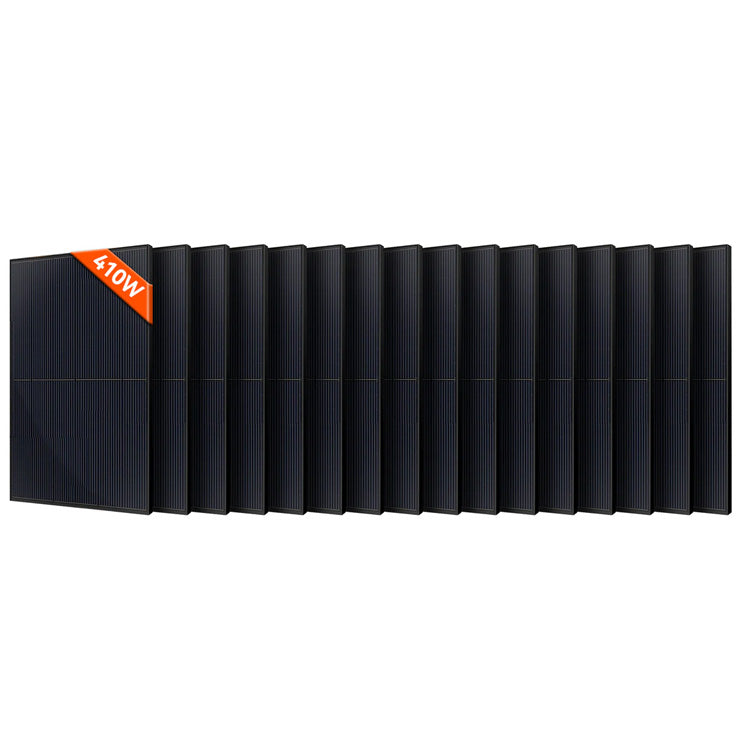

16 × MEGA 410 — 6,560W Monocrystalline Array
- 410W Per Panel, 24V Class: Each panel operates at 31.3V Vmp and 37.5V Voc, sized for series-string wiring into the NOVA 6548's 90-450VDC MPPT input range.
- 10-Busbar Mono PERC Cells: Stronger low-light, morning, and evening generation than older cell designs.
- Anodized Aluminum Frame + AR-Coated Tempered Glass: Built for permanent outdoor installation with improved daily light capture.
- 1500VDC Max System Voltage: Supports the series string configurations needed for a 16-panel array feeding a single high-voltage MPPT input.
- 25-Year Output / 10-Year Workmanship Warranty: Standard across Rich Solar's MEGA rigid panel lineup.
- 45.2 lb, 67.8 × 44.7 × 1.2 in Per Panel: Plan rooftop, ground-mount, or rack space accordingly for 16 full-size panels.

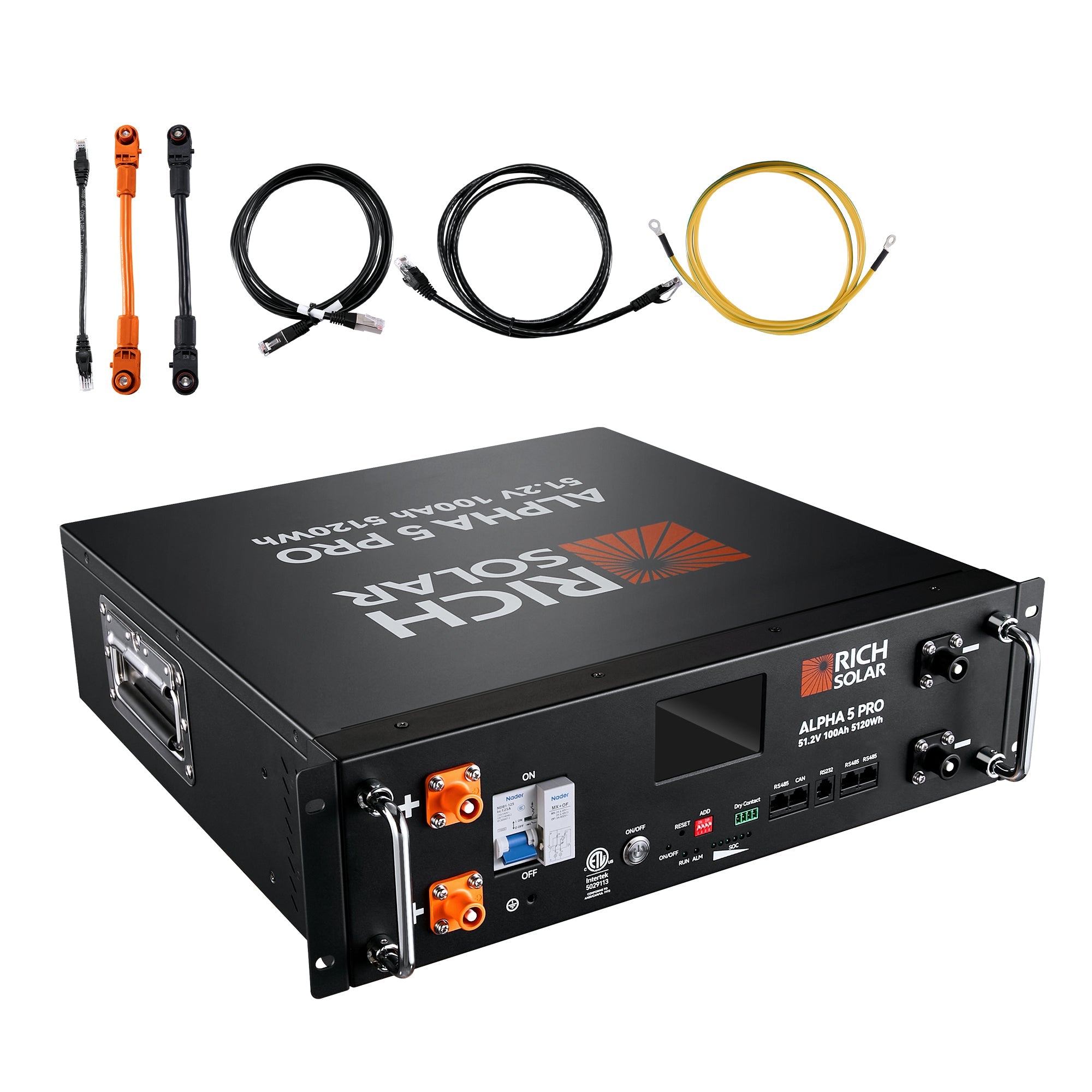

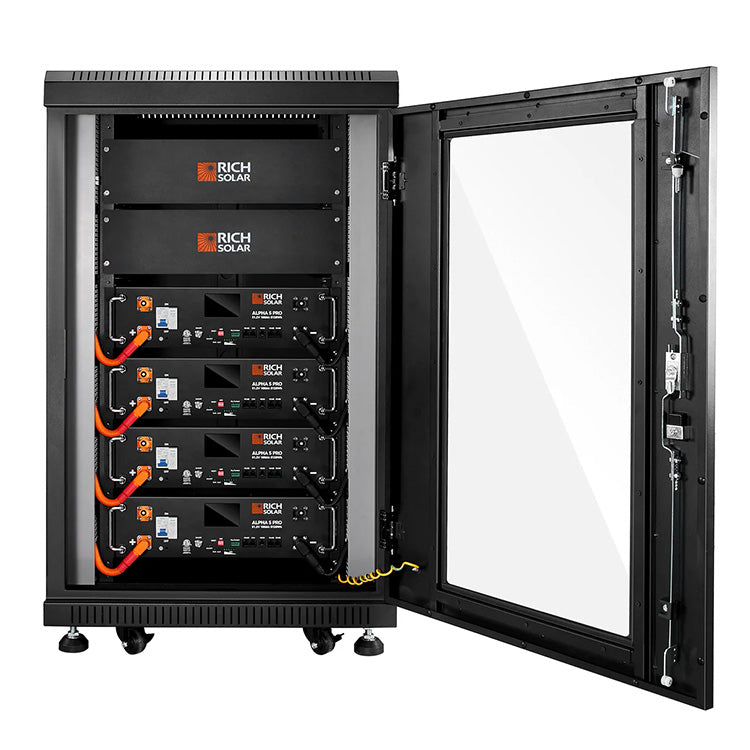

3 × ALPHA 5 PRO — 15.36kWh Server-Format Storage
- 5.12kWh Per Unit, 51.2V 100Ah LiFePO4: Three units combine for 15.36kWh of total nominal storage in a stackable server-rack form factor.
- 100A Continuous Charge & Discharge: Each battery supports sustained high-current charge and discharge, matched to the NOVA 6548's 120A maximum charge current.
- 7,000 Deep Cycle Life, 10-Year Lifespan: Designed for daily off-grid charge/discharge cycling over a decade of service.
- UL1973 & UL9540A Certified: Independently certified for battery and energy storage system safety.
- Sophisticated BMS Protection: Automatic overcharge, over-discharge, overcurrent, and short-circuit protection built into each unit.
- Expandable to 15 Units in Parallel: This kit ships with 3 batteries, with significant room to grow storage capacity later on the same platform.

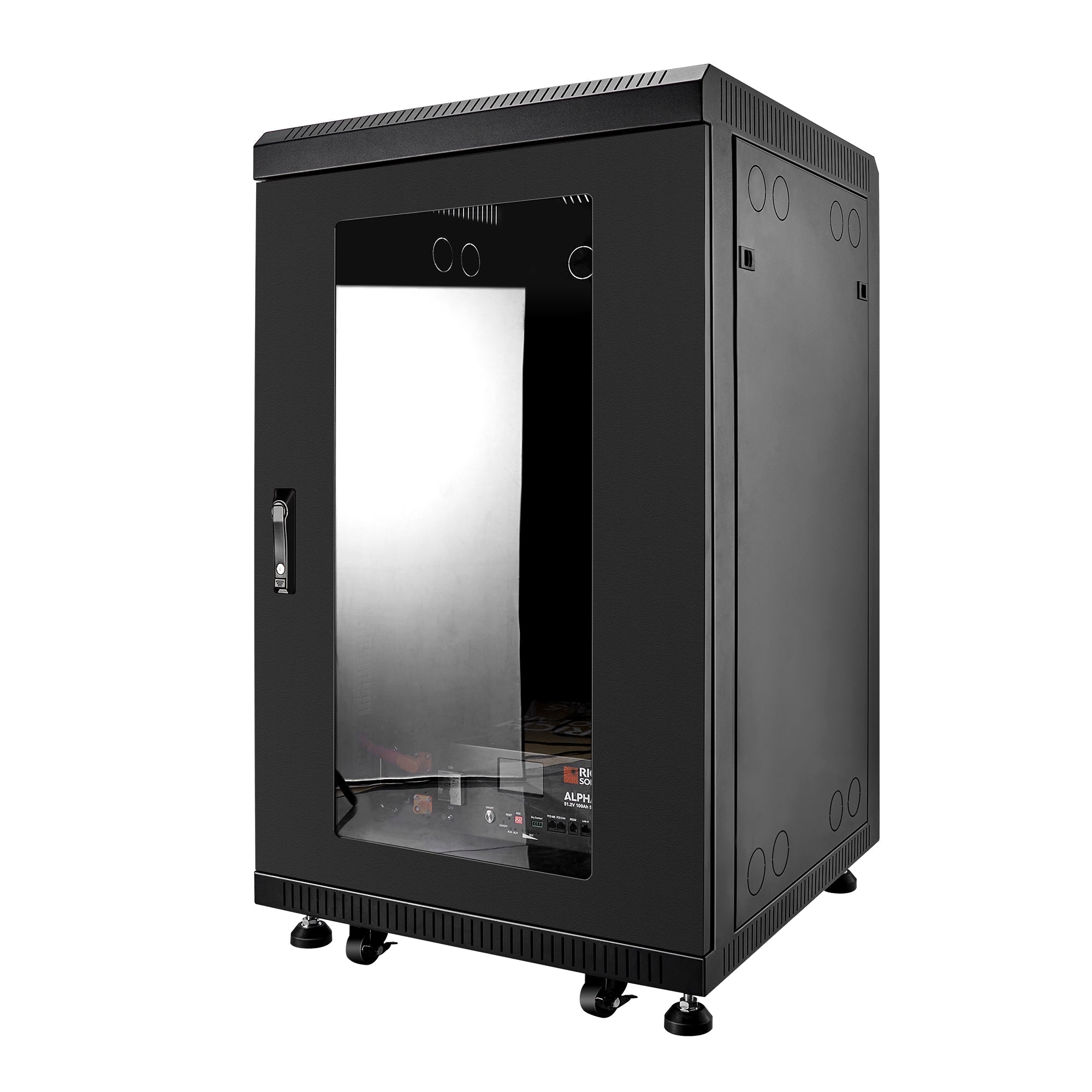

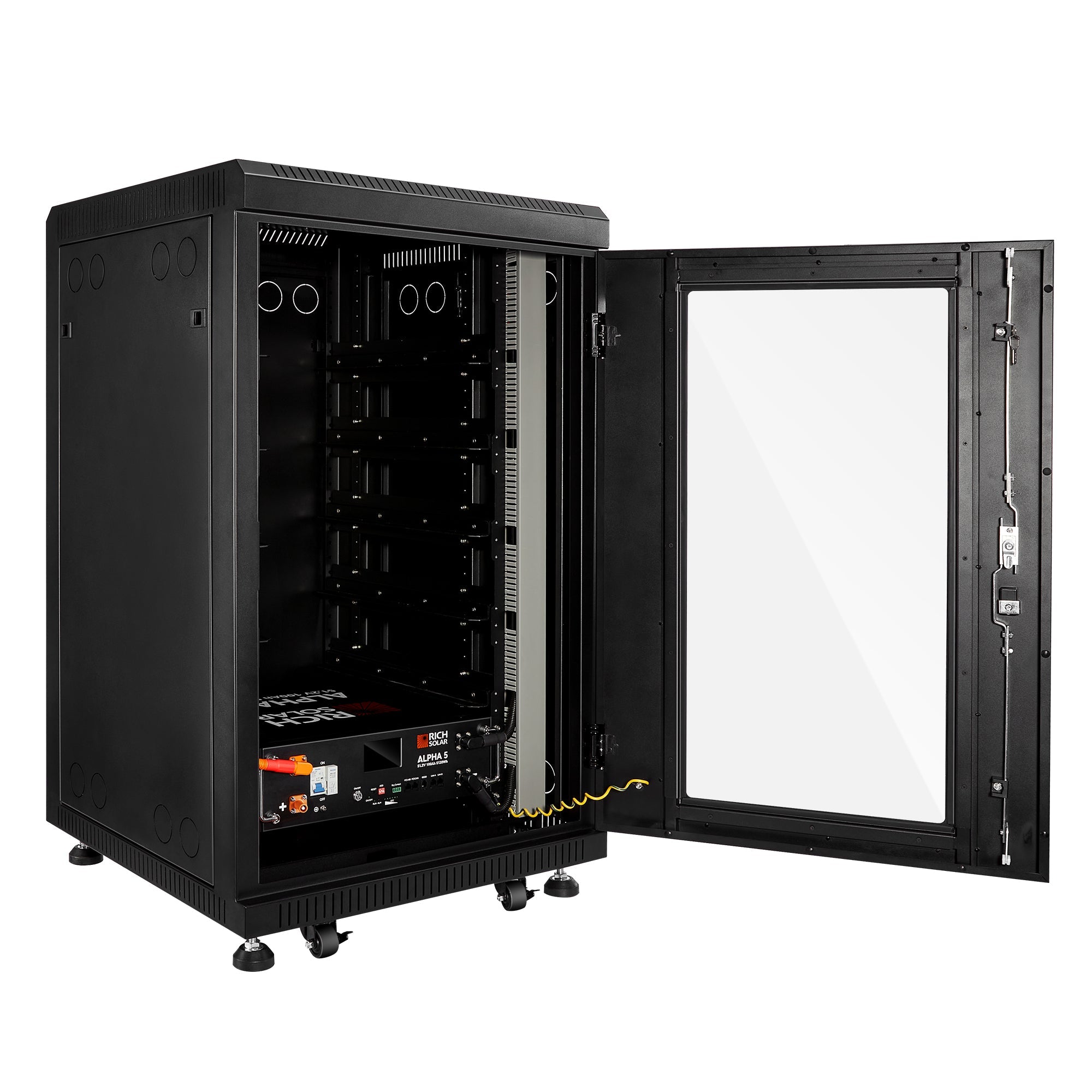

- Included Battery Rack: Houses and organizes the 3-battery bank in one stacked enclosure.

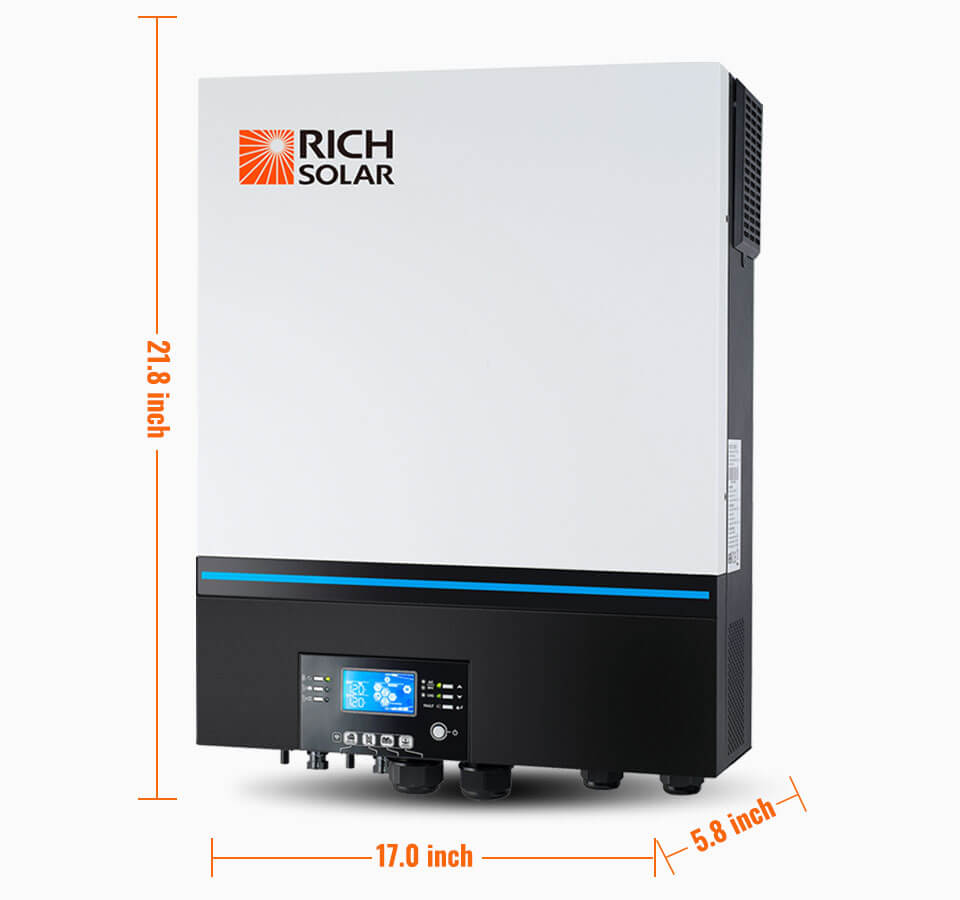

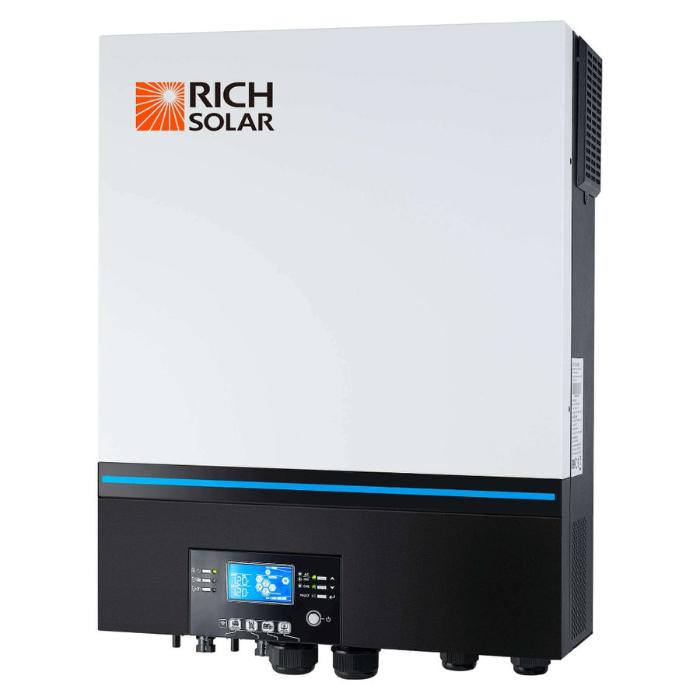

1 × NOVA 6548 — 6,500W Hybrid Output
- 6,500VA/6,500W Continuous, 2x Surge for 5 Seconds: Handles motor-start loads like well pumps, compressors, and power tools that briefly draw well above their running wattage.
- Built-In MPPT Solar Charging: Accepts up to 8,000W of PV input across a 90-450VDC MPPT range, matched to this kit's 6,560W array with headroom to spare.
- Pure Sine Wave Output, 91% Peak Efficiency: Clean AC power suitable for sensitive electronics as well as standard appliances.
- Wi-Fi Monitoring + Detachable LCD: Remote app-based monitoring alongside local control via the detachable LCD module.
- 120A Max Solar & AC Charge Current: Configurable charging priority and current limits via the LCD control panel.
- Parallel-Ready for Future Expansion: This kit uses 1 of the 6 units the NOVA 6548 platform supports in parallel — a clear path to 120/240V split-phase output and higher combined wattage later.
- UL 1741 Certified by TÜV; 3-Year Warranty: Independently certified inverter safety, with a shorter warranty window than the panels or batteries to factor into overall system planning.
MEGA 410 Panel Specs
| Max Power (Pmax) | 410W |
| Vmp / Imp | 31.3V / 13.1A |
| Voc / Isc | 37.5V / 13.8A |
| Max System Voltage | 1500VDC |
| Max Series Fuse | 25A |
| Temperature Range | -40°F to 185°F |
| Weight / Dimensions | 45.2 lb / 67.8 × 44.7 × 1.2 in |
| Warranty | 25-yr output / 10-yr workmanship |
NOVA 6548 Inverter Specs
| Rated Power | 6500VA / 6500W |
| Battery Voltage | 48VDC |
| Max PV Input | 8000W |
| MPPT Voltage Range | 90–450VDC |
| Max Solar/AC Charge Current | 120A |
| Peak Efficiency | 91% |
| Parallel Capability | Up to 6 units |
| Certification | UL 1741 (TÜV) |
ALPHA 5 PRO Battery Specs
| Nominal Voltage / Capacity | 51.2V / 100Ah |
| Energy Per Unit | 5120Wh |
| Max Charge/Discharge Current | 100A continuous |
| Cycle Life | 7,000 cycles |
| Max Parallel Expansion | 15 units |
| Battery Weight | 99.2 lb each |
| Communication | RS485 / RS232 / CAN |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 years |
Best Uses
- Cabins and smaller off-grid homes needing 120VAC power
- Workshops, barns, and outbuildings with moderate load needs
- Properties starting with a single inverter and planning to expand
- Off-grid systems prioritizing 120VAC over 240V split-phase needs
- Sites where a 6,560W array provides ample daily recharge capacity
