BRAVO 50 DC — 50 Amp DC-DC Solar Charge Controller with MPPT
The BRAVO 50 DC charges from solar and a vehicle's alternator, simultaneously or independently, combining a PowerCatcher MPPT algorithm rated above 99% tracking efficiency with Buck/Boost alternator regulation. It supports 3-stage charging for lead-acid batteries and 2-stage charging for lithium batteries with BMS communication, and includes Bluetooth, RS485, CAN (RV-C), and TTL connectivity for monitoring and configuration.

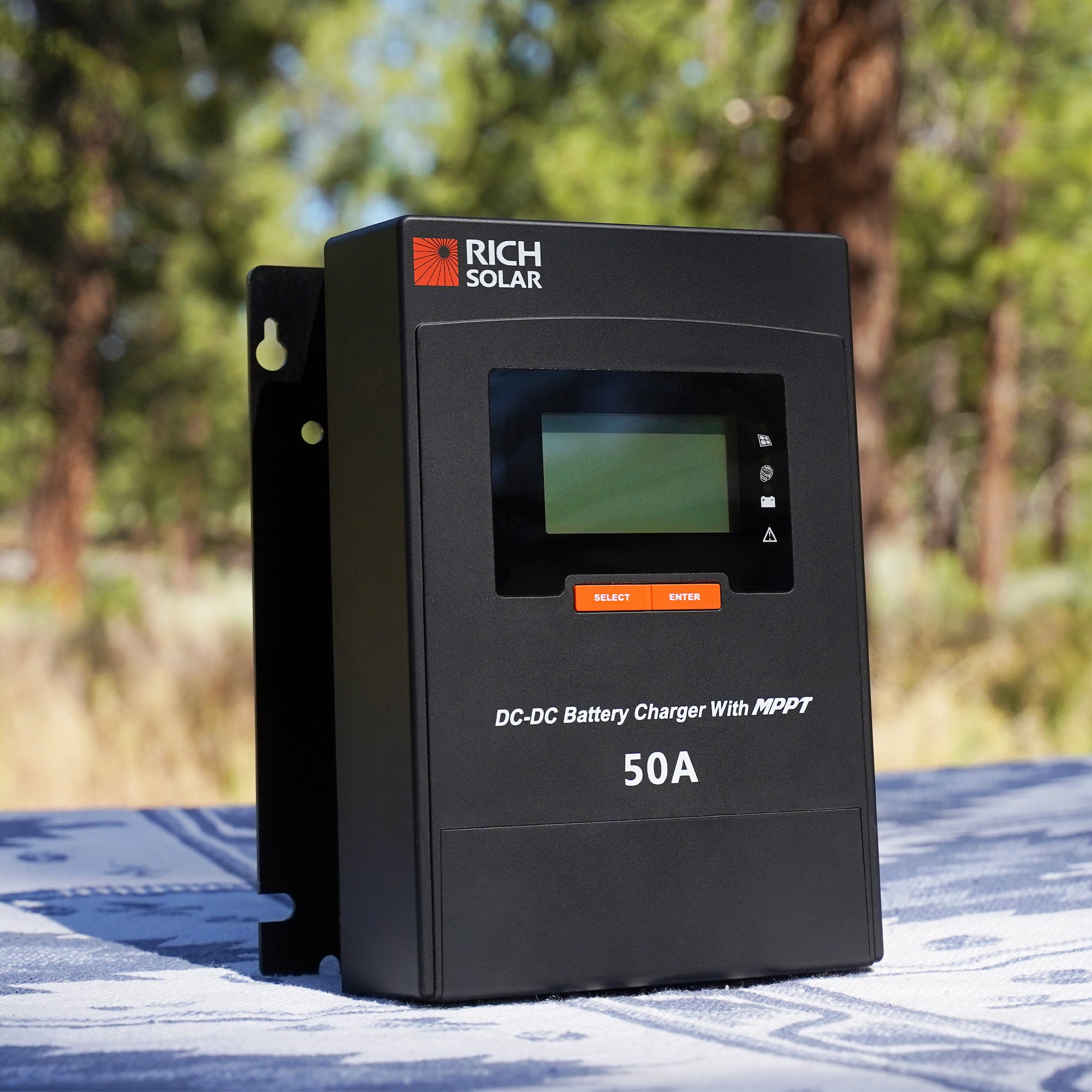

PowerCatcher MPPT Tracking
The PowerCatcher algorithm delivers MPPT tracking efficiency above 99%, with stable performance in shaded or variable light conditions and up to 20% more solar harvest than a PWM controller.

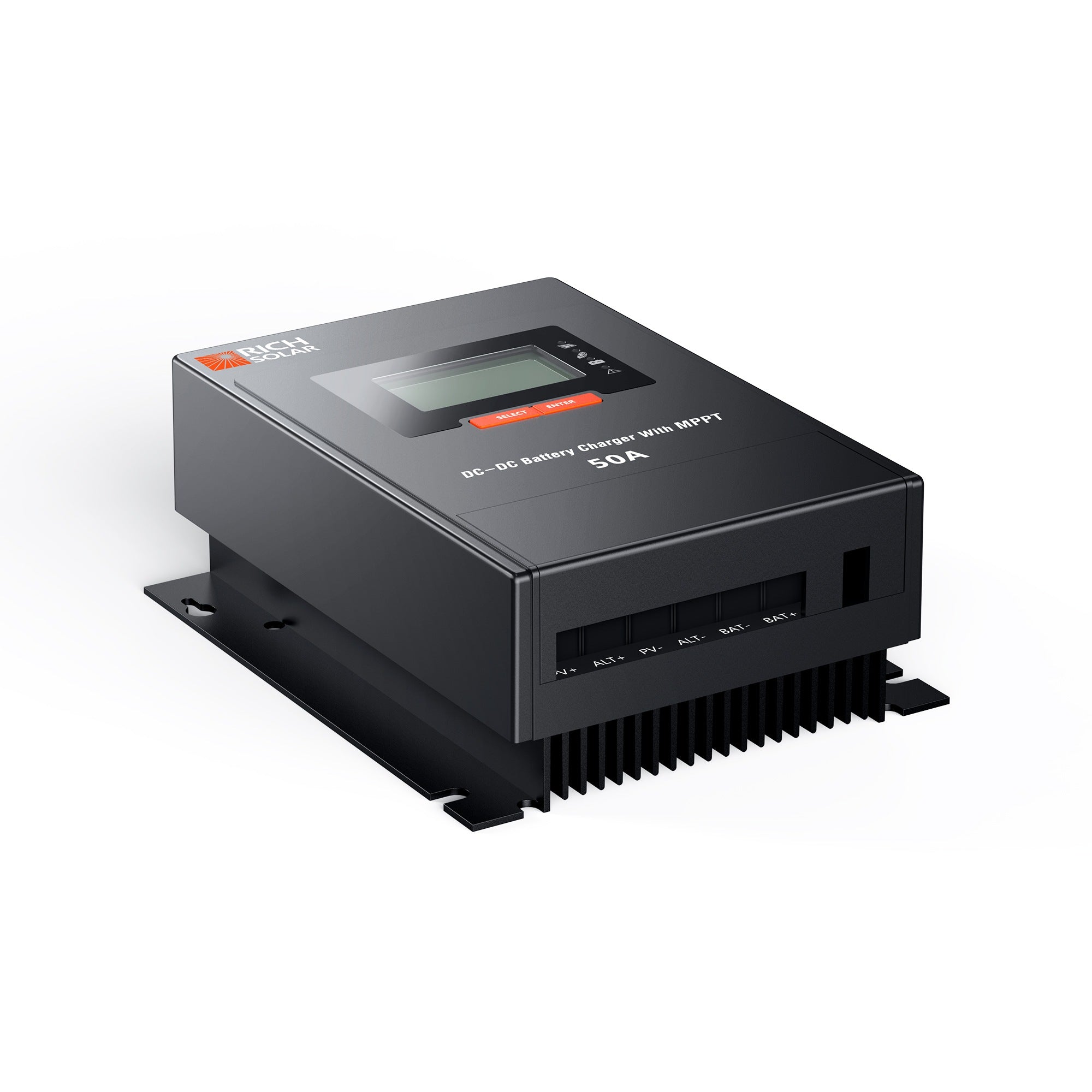

Dual Input: Solar and Alternator
Charges from solar and alternator inputs simultaneously or independently, with selectable charging priority and compatibility with traditional and smart 12V/24V alternators.

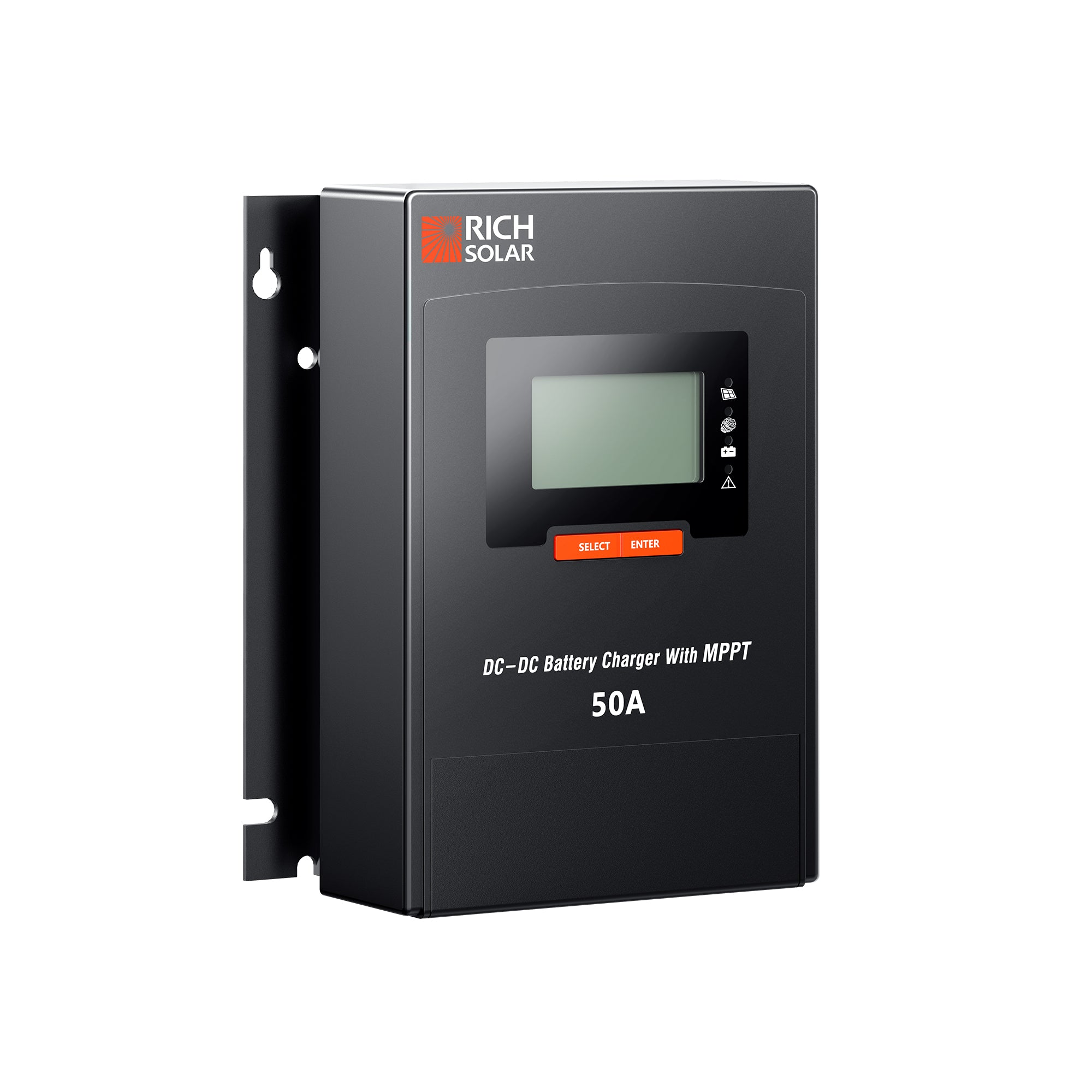

Bluetooth, RS485, CAN, TTL
Real-time monitoring and configuration via app or wired interface, with communication options covering Bluetooth, TTL, RS485, and CAN using the RV-C protocol.
Product Overview
The BRAVO 50 DC is a 50A DC-DC solar charge controller with MPPT, built to charge a 12V battery system from both a solar array and a vehicle's alternator. The PowerCatcher MPPT algorithm tracks the solar array's maximum power point at greater than 99% efficiency, with stable performance in shaded or variable light conditions. Power conversion efficiency reaches up to 96%, using Buck MPPT regulation for the solar input and Buck/Boost regulation for the alternator input.
The controller charges from solar and alternator inputs simultaneously or independently, with selectable charging priority between the two sources. It is compatible with traditional and smart alternators at 12V or 24V. Charging profiles include 3-stage charging (Bulk, Boost, Float) for lead-acid batteries and 2-stage charging for lithium batteries with BMS communication. Protection covers over-temperature, overcharge, overcurrent, and reverse polarity conditions.
Communication options include Bluetooth, TTL, RS485, and CAN using the RV-C protocol, enabling real-time monitoring and configuration through an app or a wired interface.
Advanced MPPT Tracking Technology
- PowerCatcher Algorithm: Greater than 99% tracking efficiency.
- Stable in Shaded or Variable Light: Maintains tracking performance through changing light conditions.
- Up to 20% More Solar Harvest: Compared to a PWM controller.
Dual Input Charging Capability
- Solar and Alternator, Simultaneous or Independent: Charges from either or both sources.
- Traditional and Smart Alternator Compatible: Works with 12V or 24V alternator systems.
- Selectable Charging Priority: Choose solar or alternator priority.
- Buck MPPT for Solar / Buck-Boost for Alternator: Up to 96% power conversion efficiency.
Flexible Charging Modes, Comprehensive Protection
- 3-Stage Charging for Lead-Acid: Bulk, Boost, and Float stages.
- 2-Stage Charging for Lithium: With BMS communication.
- Overcharge, Overcurrent, Over-Temperature, and Reverse Polarity Protection.
Smart Monitoring & Communication
- Bluetooth: Real-time monitoring and configuration via app.
- RS485, CAN (RV-C), TTL: Wired communication interface options.
Full Specifications
| SKU | RS-MPPT50DC |
| Max Solar Input | 55V DC / 50A / 800W (Recommended) |
| MPPT Voltage Range | 17–36V DC |
| Alternator Input | 12/24V, 65A Max |
| Battery System Voltage | 12V (9–16V Range) |
| Rated Charging Current | 50A |
| MPPT Efficiency | >99% |
| Conversion Efficiency | Up to 96% |
| Communication | Bluetooth, TTL, RS485, CAN (RV-C) |
| Protections | Overcharge, Overcurrent, Over-Temperature, Reverse Polarity |
| Operating Temperature | -31°F to 149°F (-35°C to 65°C) |
| Dimensions (W×D×H) | 8.70 × 6.92 × 3.64 in (221 × 175.8 × 92.4 mm) |
| Weight | 5.16 lb (2.34 kg) |
| IP Rating | IP32 |
Best Uses
- RVs, trailers, campers, vans, and boats charging from both solar and alternator
- 12V battery systems needing dual-source charging
- Lithium battery setups requiring BMS-communicated charging
- Installations needing RV-C, RS485, or TTL data integration
Key Benefits
- PowerCatcher MPPT with >99% tracking efficiency
- Dual input charging from solar and alternator
- 3-stage lead-acid and 2-stage lithium charging
- Bluetooth, RS485, CAN, and TTL communication
- Comprehensive electrical protection
