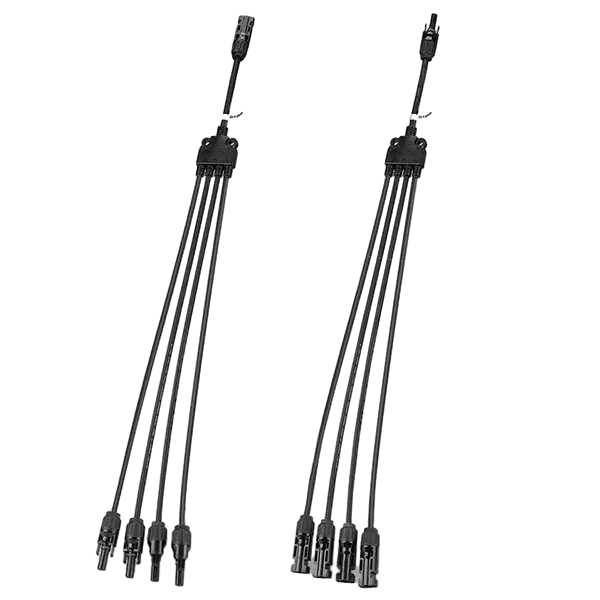

BougeRV 4-to-1 MC4 Solar Connector Pair
Combine four compatible solar-panel positive leads and four negative leads into one output pair for a cleaner parallel-wired array.

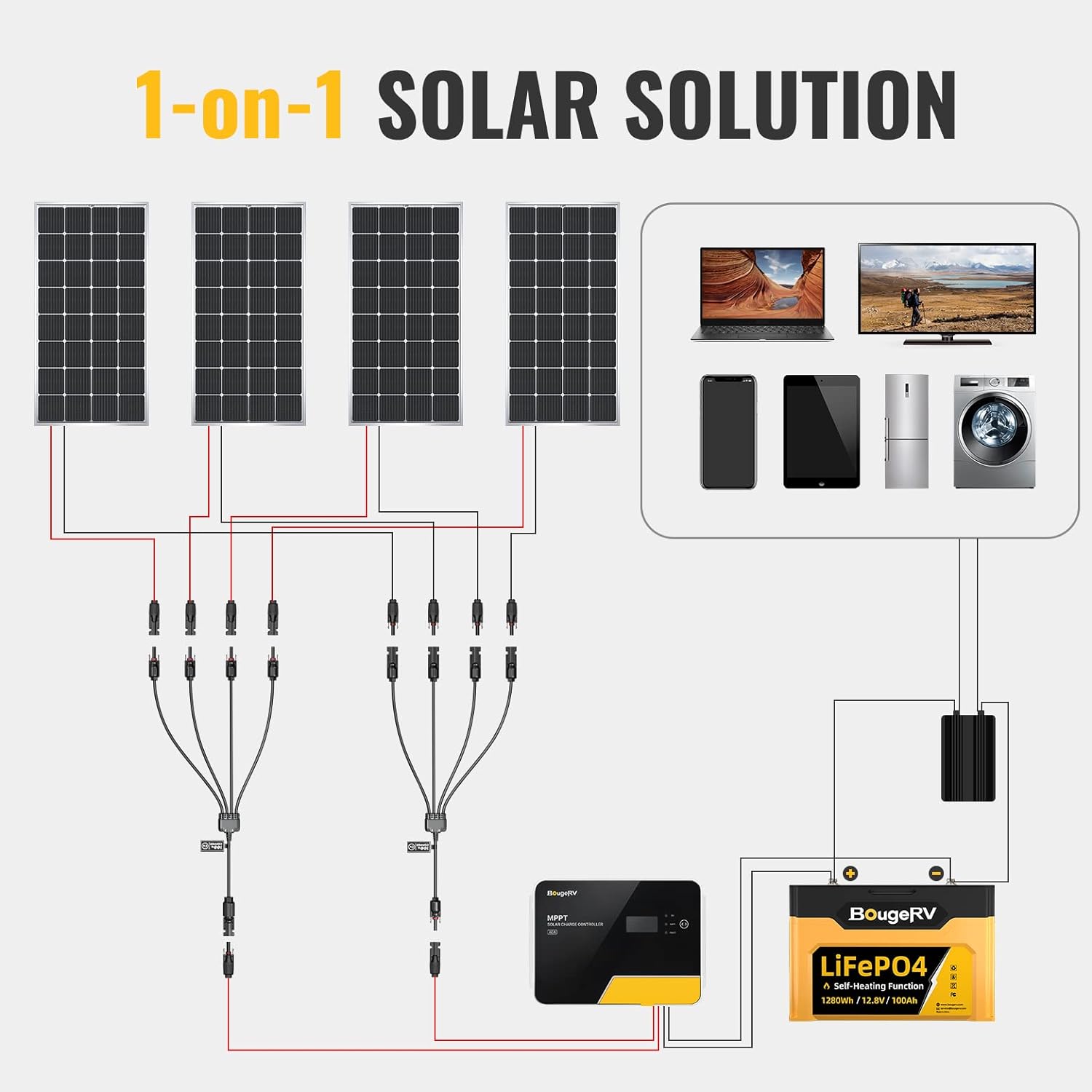

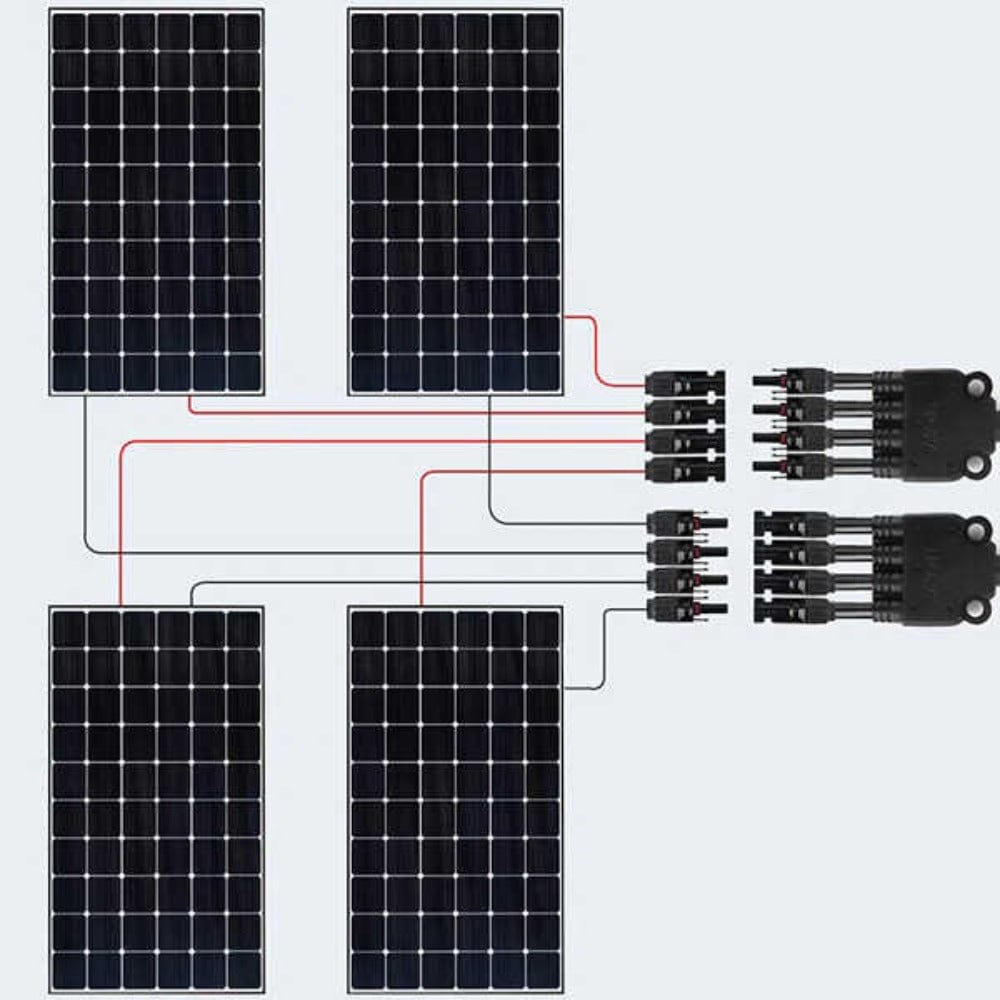

Bring four compatible panel strings into one parallel output

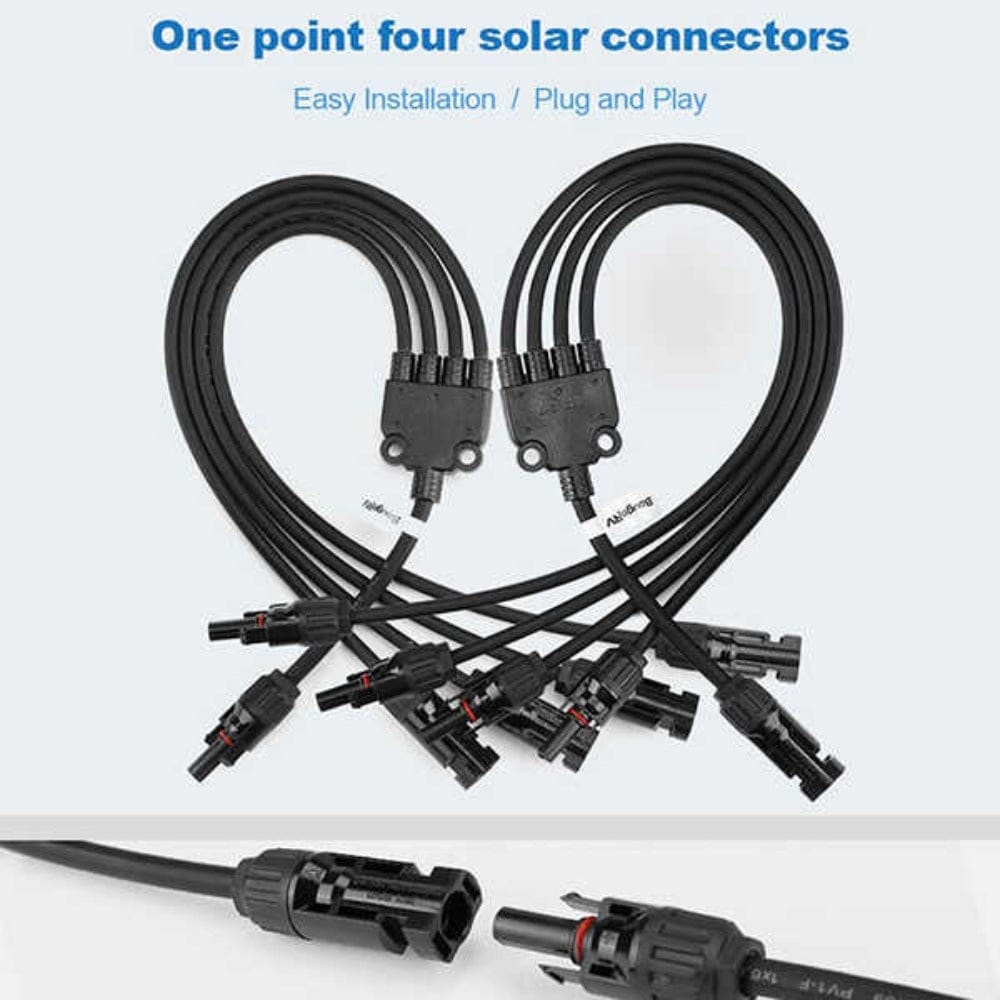

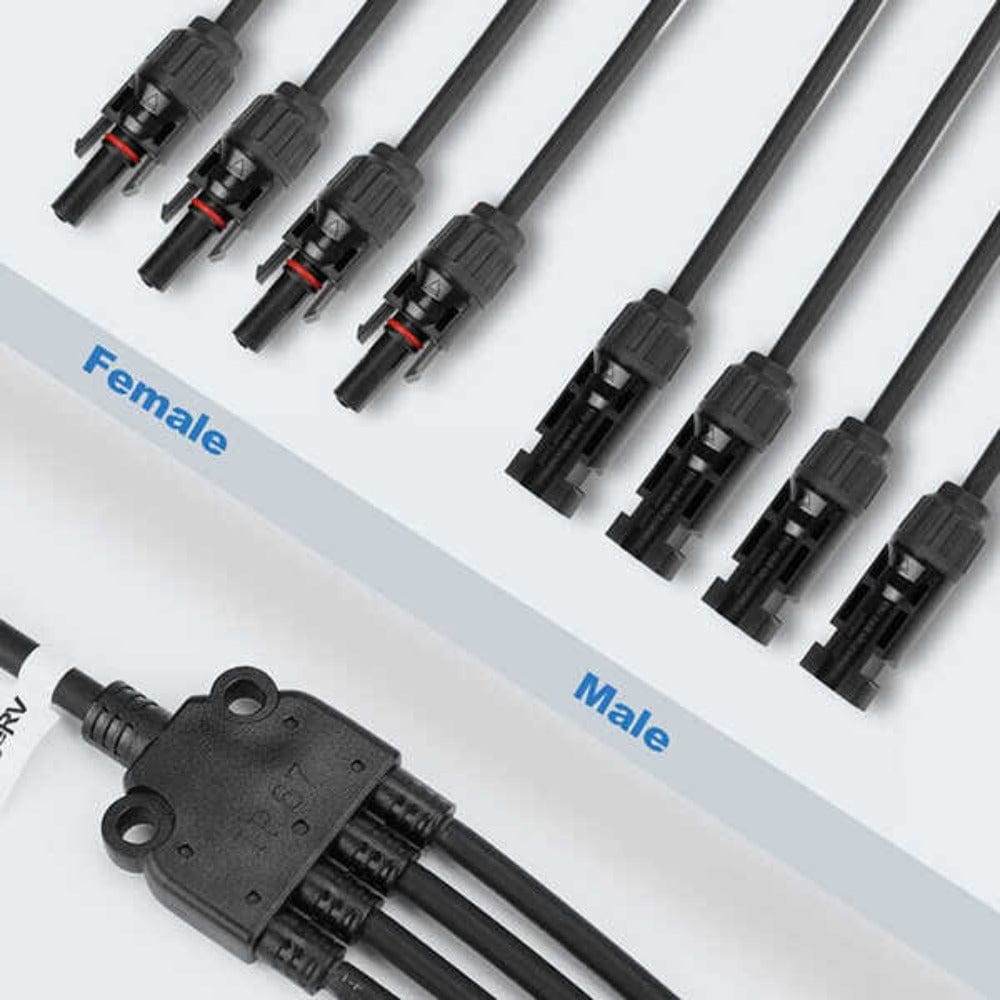

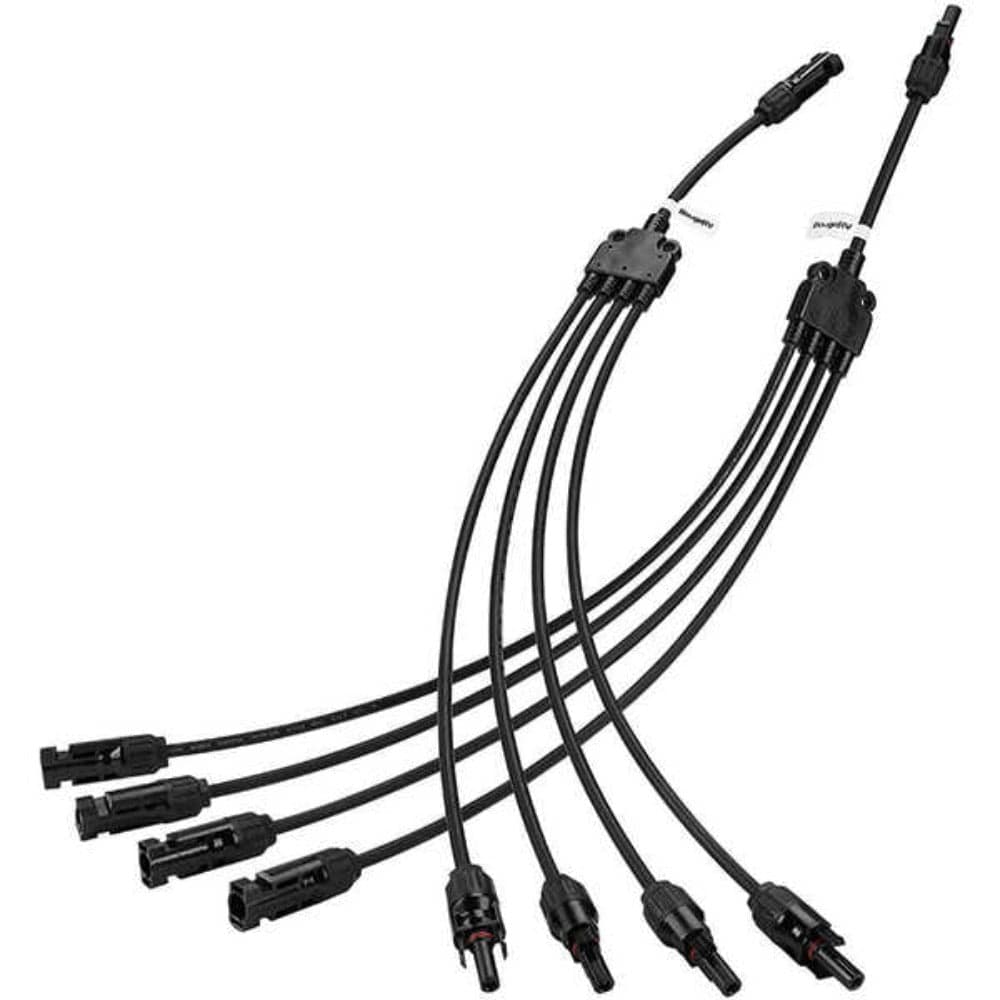

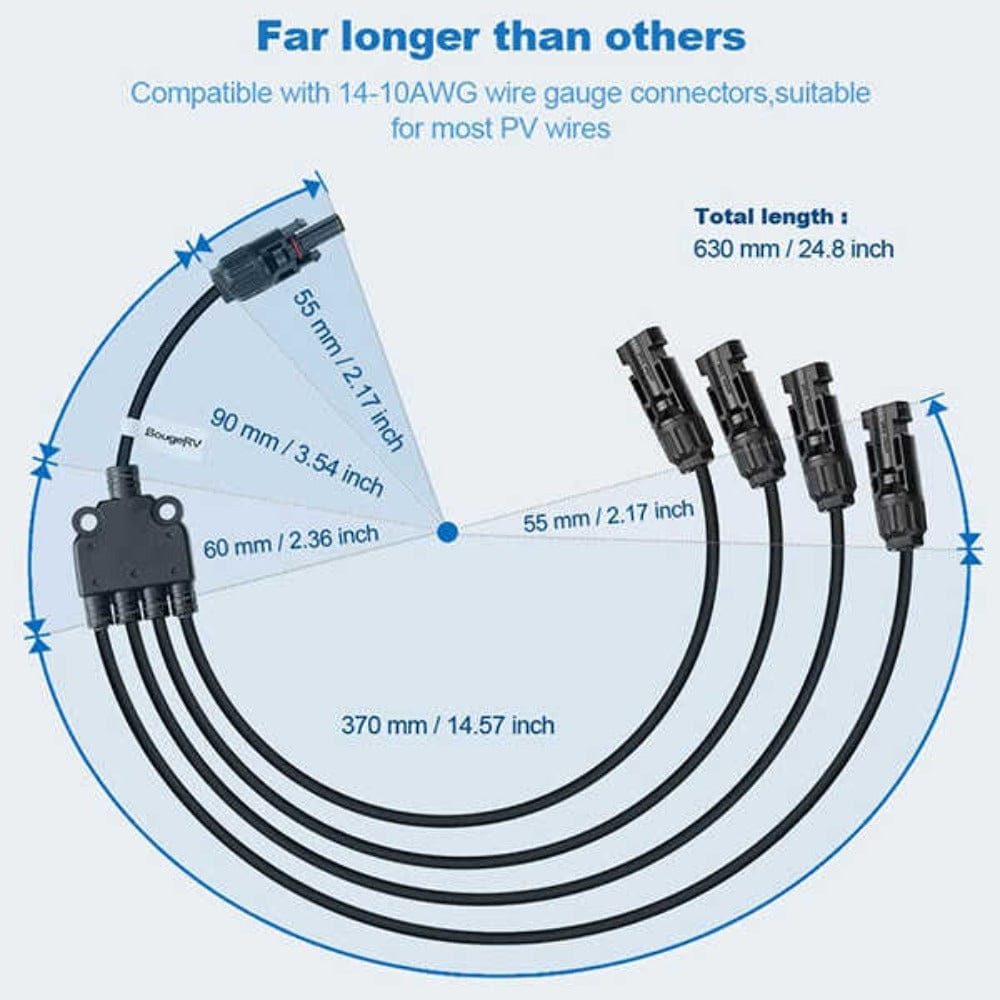

The pair includes one male-to-four-female branch and one female-to-four-male branch. Together they consolidate both sides of four compatible solar-panel connections before the circuit continues toward properly rated downstream equipment.

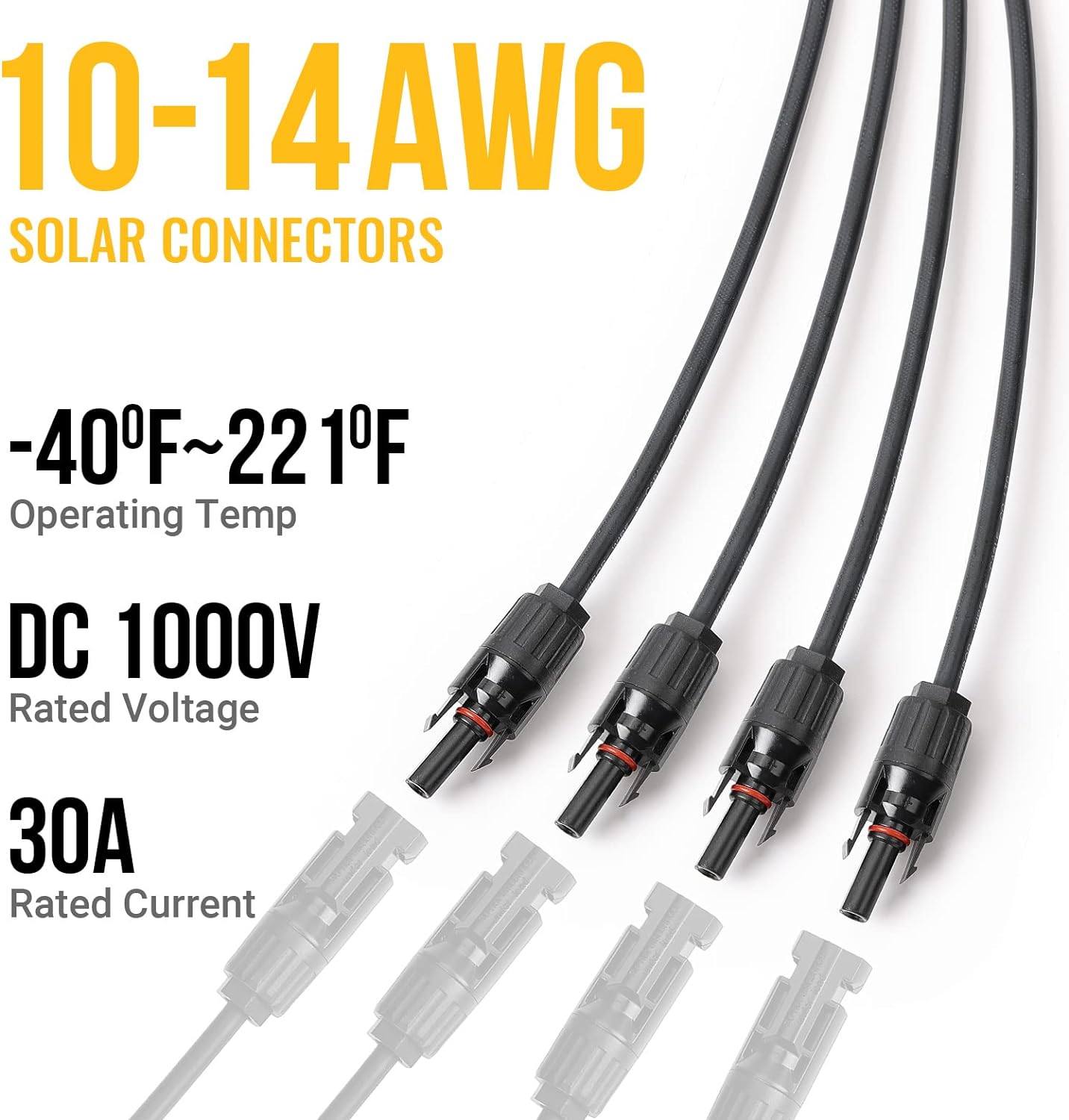

Rated for properly designed solar circuits up to 30A
Parallel wiring adds the current from each connected string while voltage remains approximately the same. The resulting maximum current must stay within the 30A connector rating and every other component in the circuit.

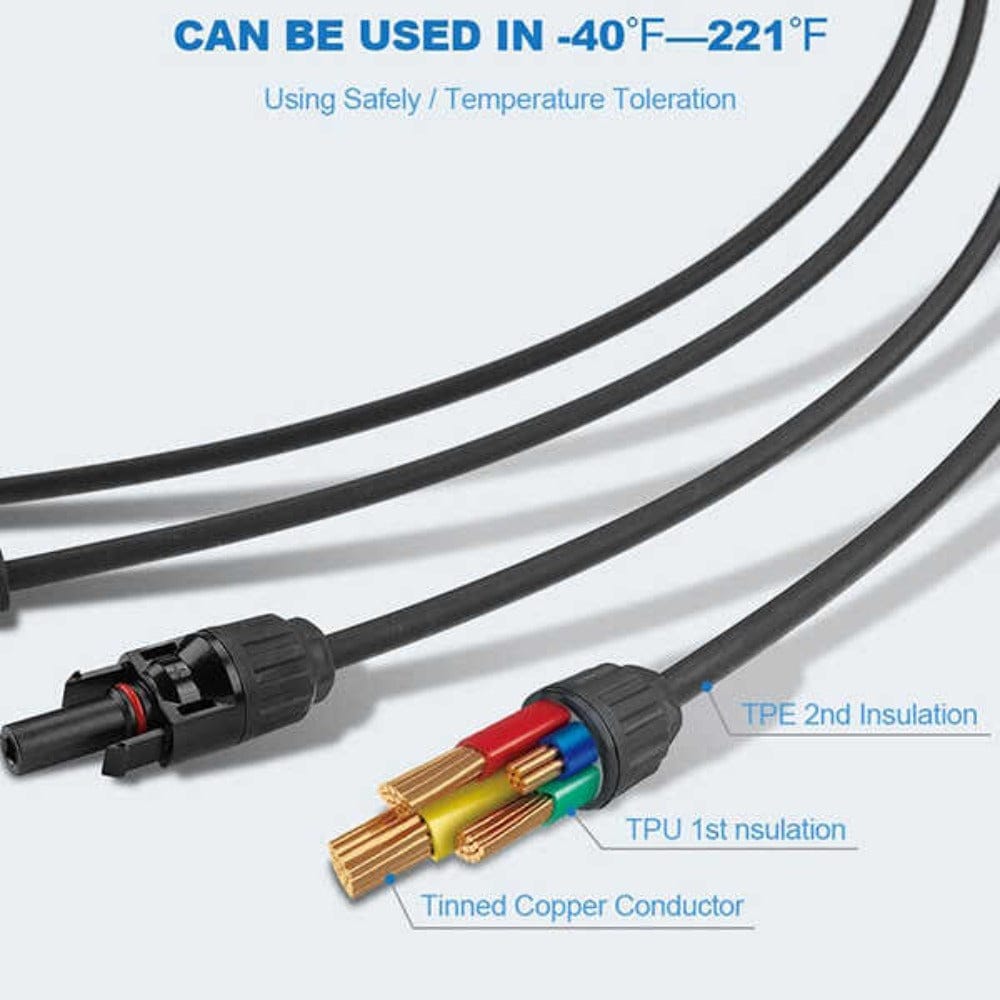

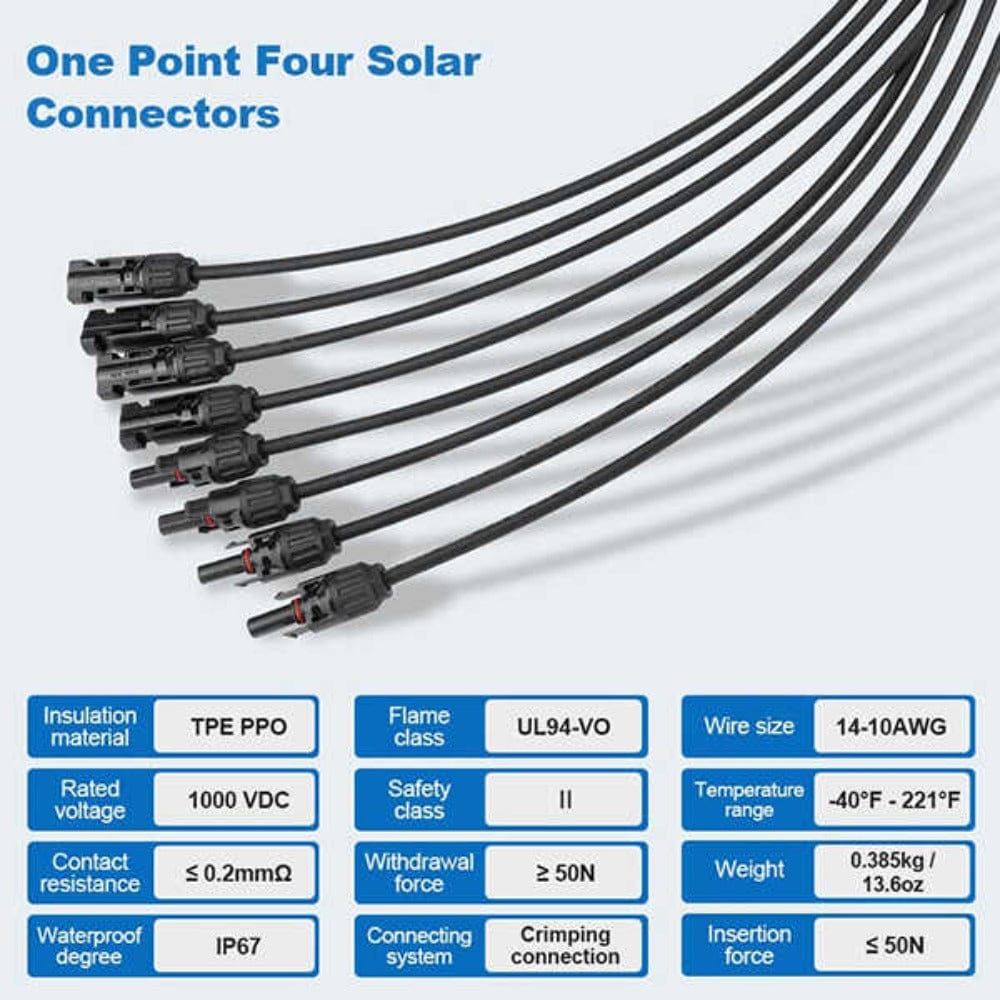

BougeRV lists a 1000V DC rating, contact resistance of 0.2mΩ or less and an operating range from -40°F to 221°F.

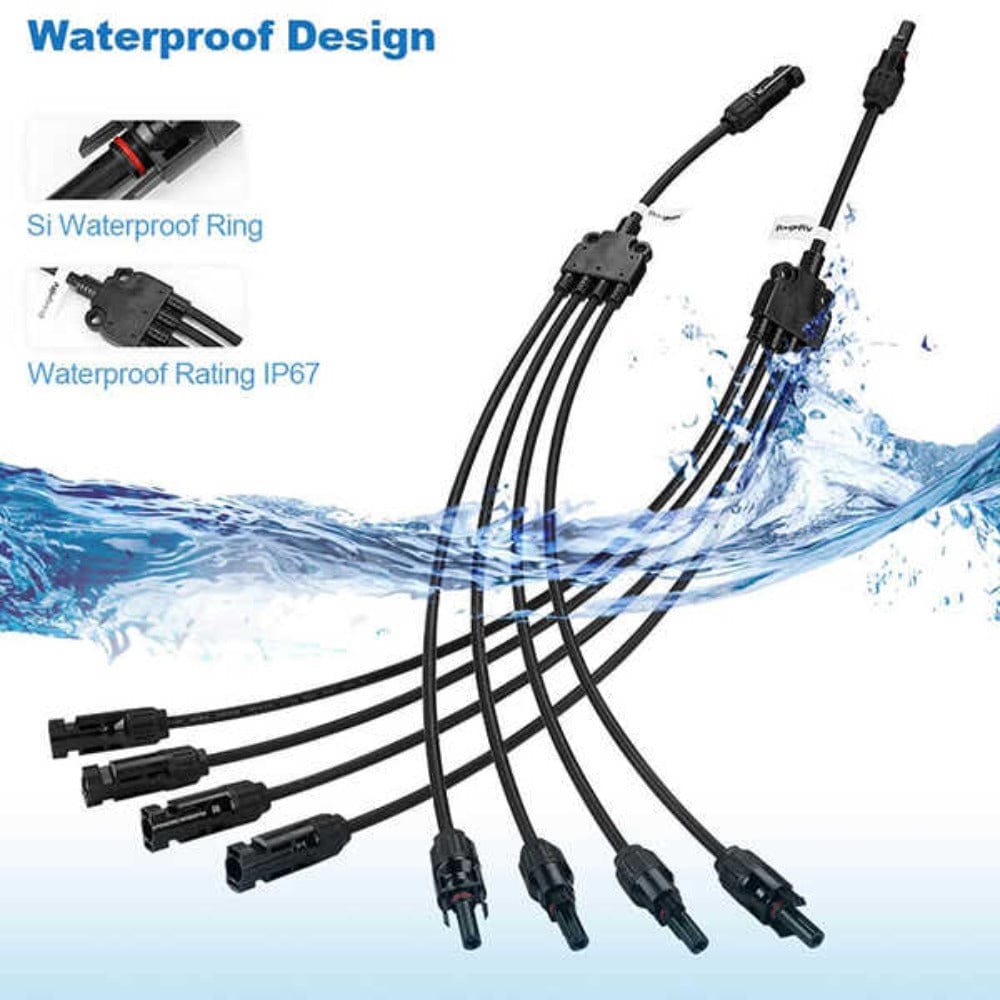

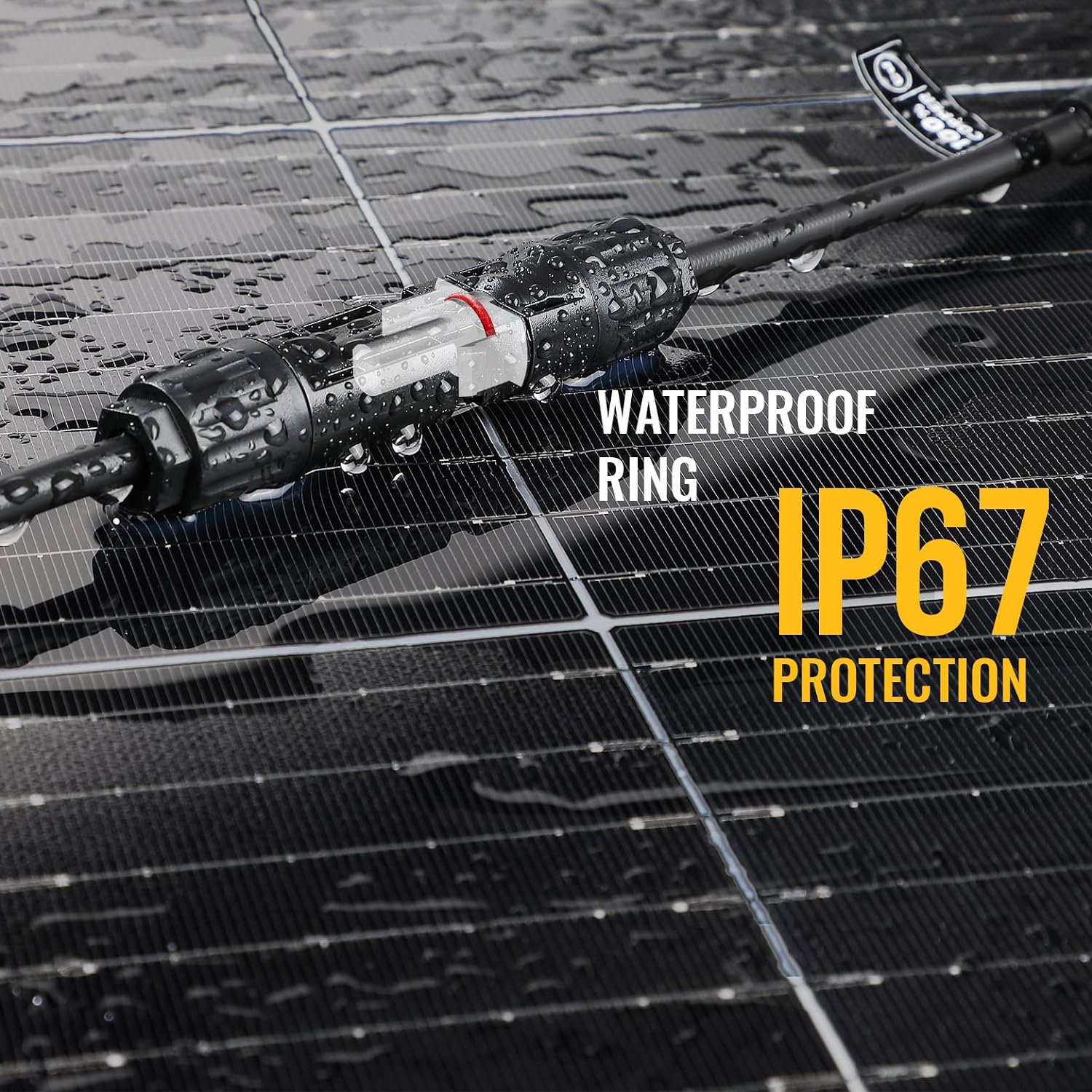

IP67 sealing for installed solar environments
Sealing rings help keep dust and moisture out of properly mated connections. UV- and aging-resistant PPO and PVC materials are intended for long-term outdoor solar installations.
The connector housing carries a UL94-V0 flame classification and BougeRV lists CE and TÜV certification.

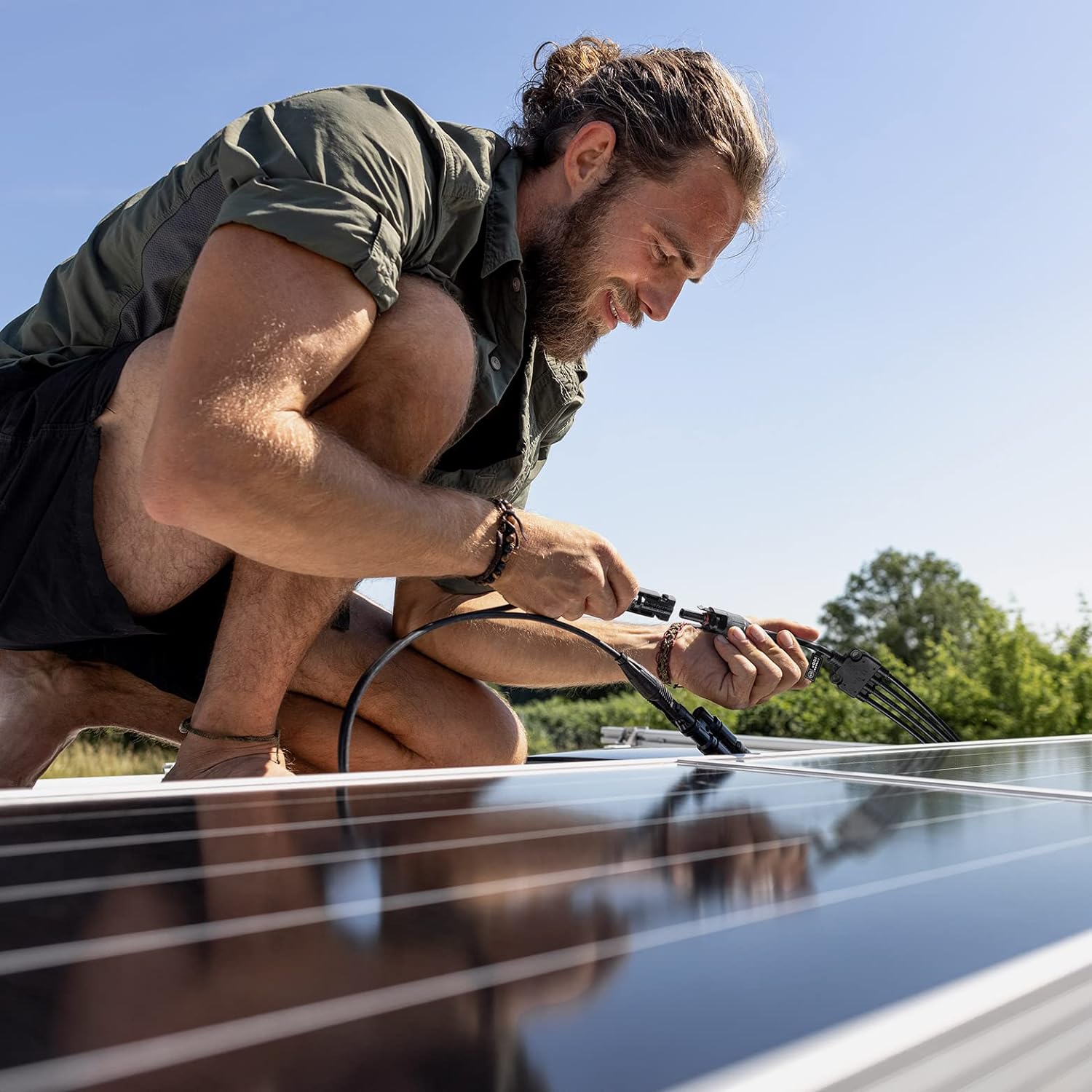

Connect the array without building a custom combiner harness
Align each compatible connector, push until the built-in lock engages and route the branches without sharp bends or unsupported strain. The locking tabs can be pressed from both sides when the system is safely de-energized and disconnection is required.
