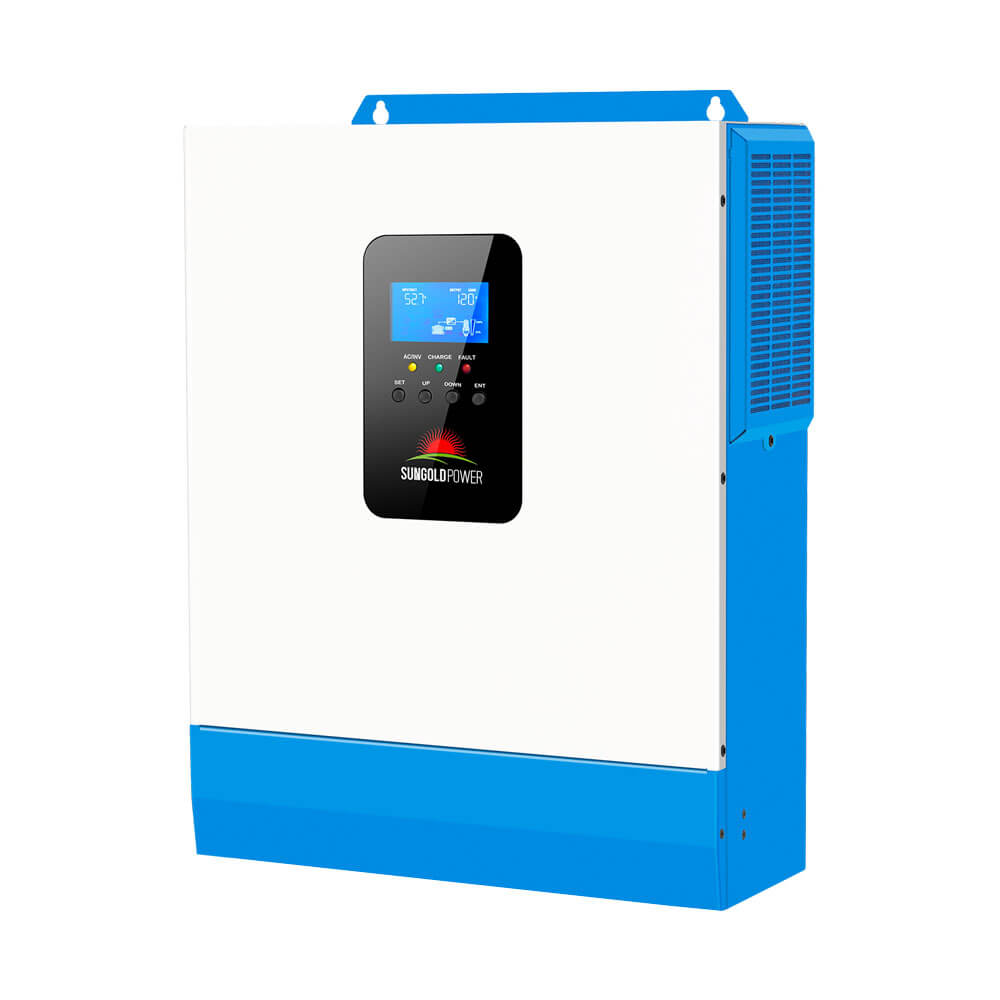

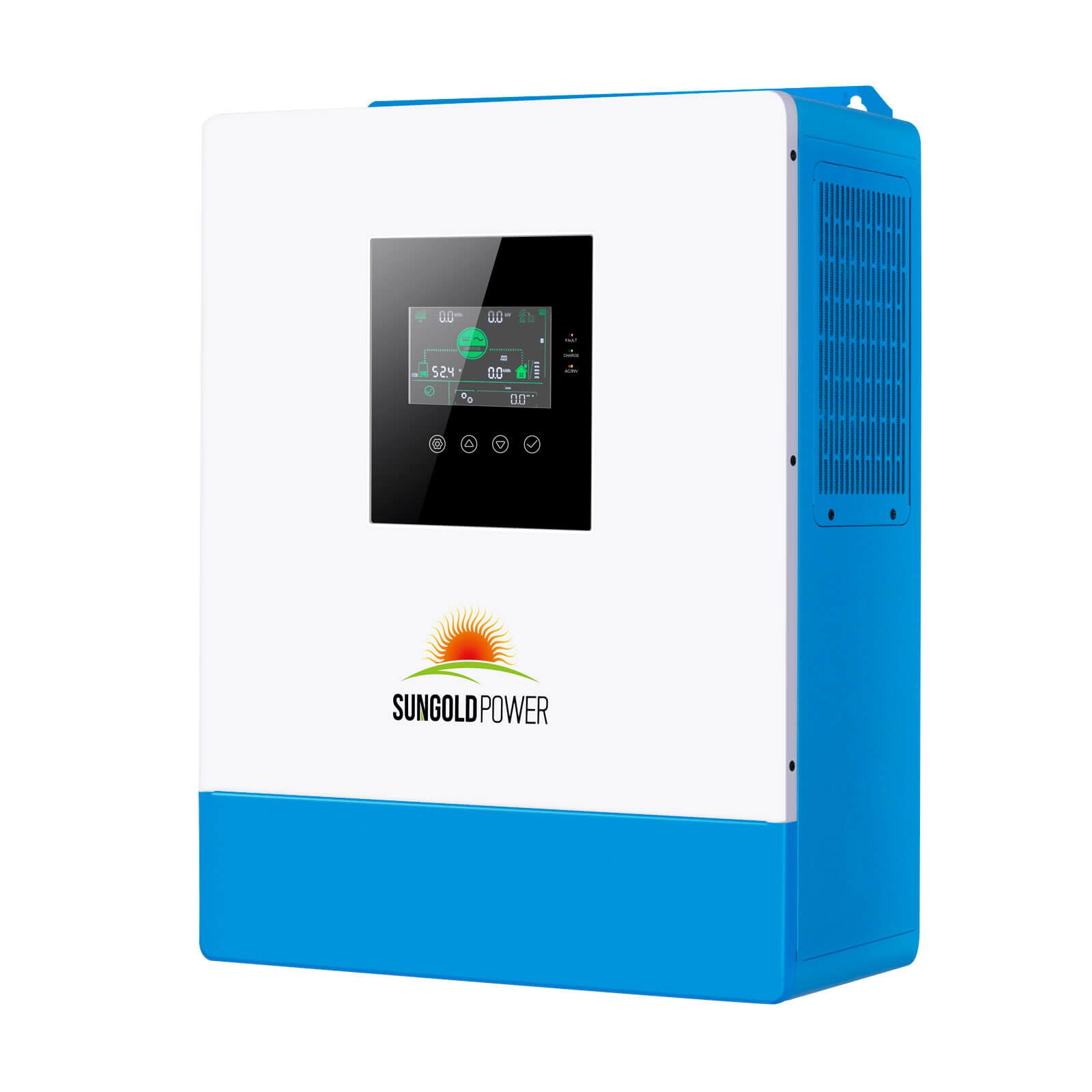

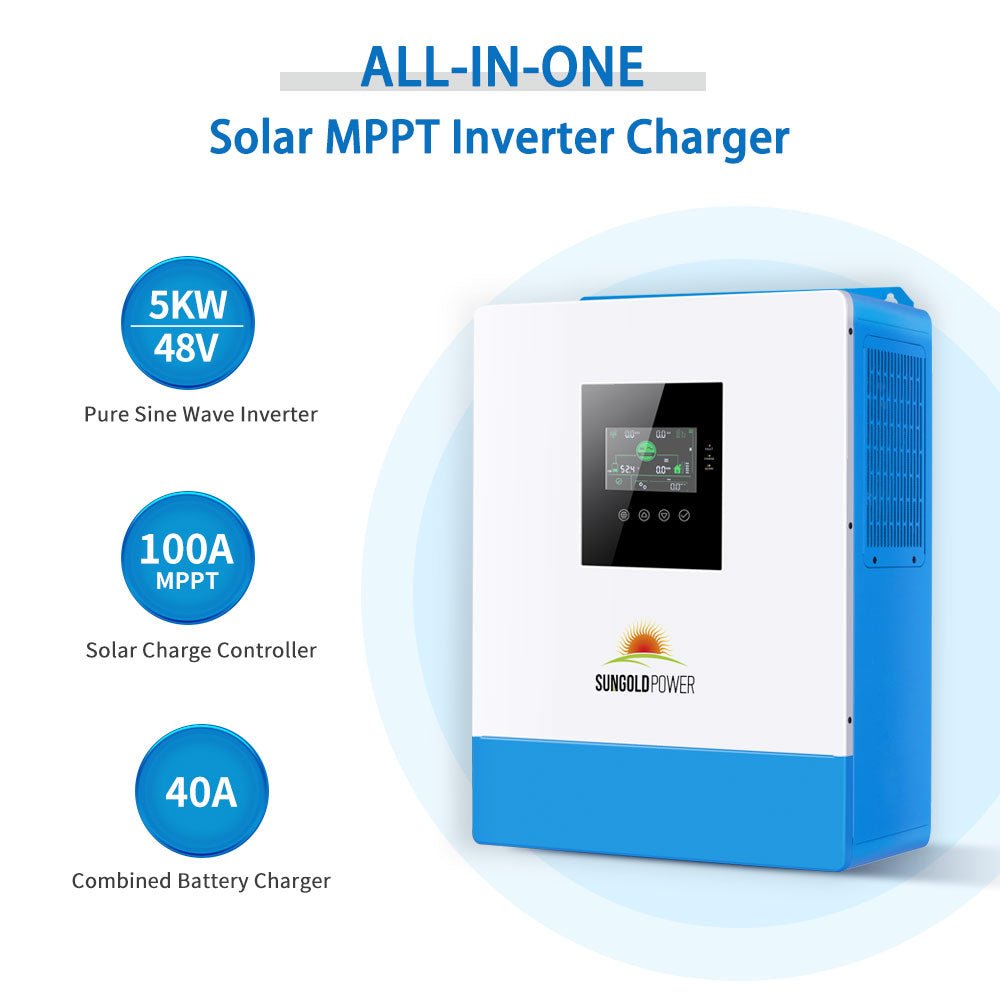

5000W 48V Solar Charger Inverter

Name: 5000W 48V Solar Charger Inverter
Brand: SunGoldPower
SKU: SPH5048P
Price: 750.00 USD
Availability: InStock

In Stock

$750.00$938.00Save $188.00

New customer? Get 5% off eligible items

No sales tax collected at checkout where applicable.

Found a lower advertised price? Request a price match review

Configuration: SPH5048P (Parallel, 100A MPPT)

Quantity

5% offSave an extra 5% today!Copy this code and apply it in your order notes when eligible.

Code: GRIDER5

Estimated deliveryArrives Wed, Aug 26 – Tue, Sep 1

Secure checkoutProtected payment

Free shippingView shipping policy

Eligible returnsView return policy

Authorized dealerSunGoldPower warranty

Key features

5,000W continuous outputRated AC output for running tools, appliances and backup circuits.

Need help choosing?Not sure if this is the right setup for you?

Chat with our team, call support or check your expected loads before ordering.

Chat With Us Call (800) 845-8820 Open Power Planner

SunGoldPower Hybrid Inverter

5000W 48V Solar Charger Inverter

A powerful all-in-one 48V inverter/charger for off-grid solar, backup power, RVs, cabins, workshops, and whole-home energy systems. It combines pure sine wave AC output, high-voltage solar charging, utility charging, and configurable operating modes in one system-ready unit.

5000W Pure sine wave AC output

48V Battery system design

5500W Max PV array input

80A / 100A MPPT option by model

SunGoldPower SPH5048P 5000W 48V solar charger inverter for home backup solar power

All-in-one solar power control

Built for serious 48V solar systems

This SunGoldPower inverter is designed to sit at the center of an off-grid or hybrid solar setup. It can accept solar and AC charging, deliver pure sine wave AC output, communicate with compatible lithium battery systems, and support multiple operating modes so the system can be tuned around solar priority, utility priority, inverter priority, or hybrid output.

Pure sine wave output Cleaner power for common home, office, workshop, RV, and off-grid loads.

Integrated MPPT charging Choose the SPH5048P with 100A MPPT or the SPH504880A with 80A MPPT.

Solar + AC charging Use solar, utility power, or a hybrid charging strategy based on your setup.

Battery flexibility Works with 48V lithium, LiFePO₄, AGM/sealed, gel, flooded, and user-defined battery settings.

UPS-style backup Designed to keep priority loads powered when utility power is unavailable.

System expansion option The SPH5048P model supports parallel operation for larger system builds.

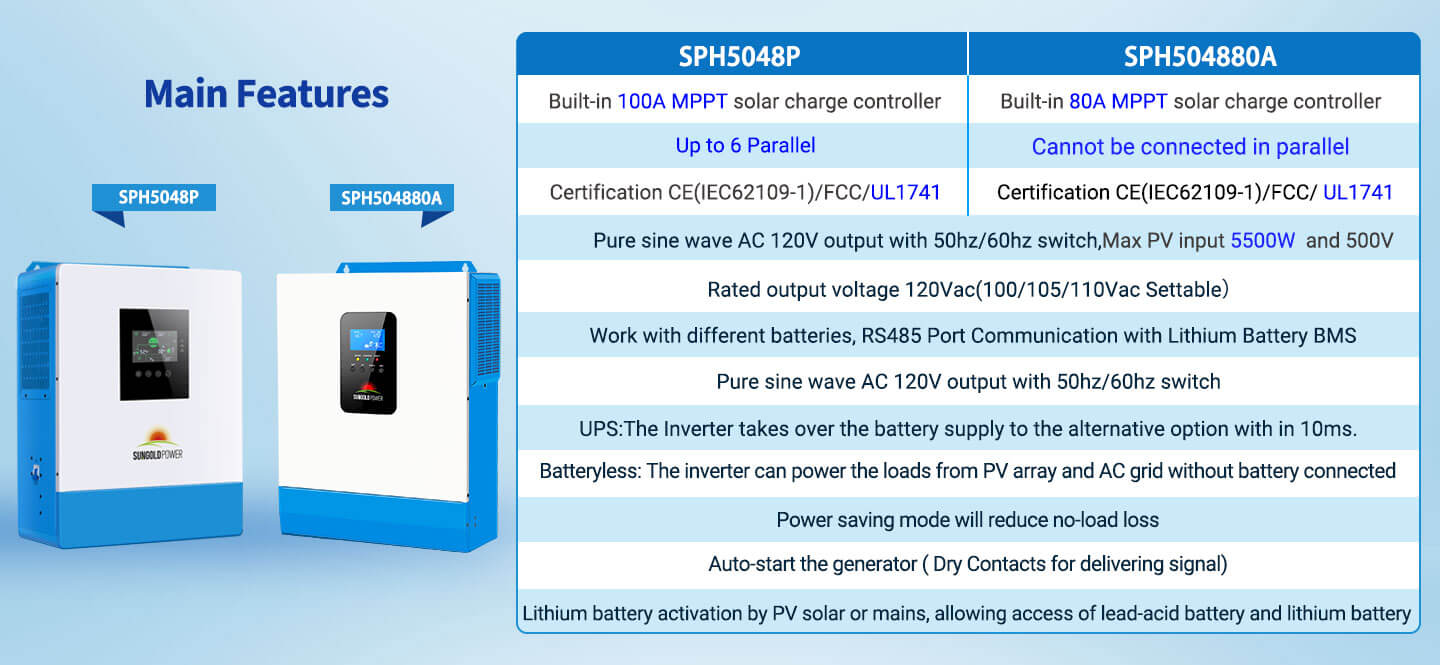

SunGoldPower SPH5048P and SPH504880A main features comparison

Choose the right model

Parallel-ready or single-unit design

SunGoldPower offers two versions of this 5000W 48V solar charger inverter. The SPH5048P is the higher-charge-current model and is designed for parallel-capable system expansion. The SPH504880A is the 80A MPPT version for single-inverter setups where parallel operation is not needed.

SPH5048P SPH504880A

100A MPPT + parallel support

Best for larger solar builds where future expansion matters. The SPH5048P supports up to 6 units in parallel for increased output capacity.

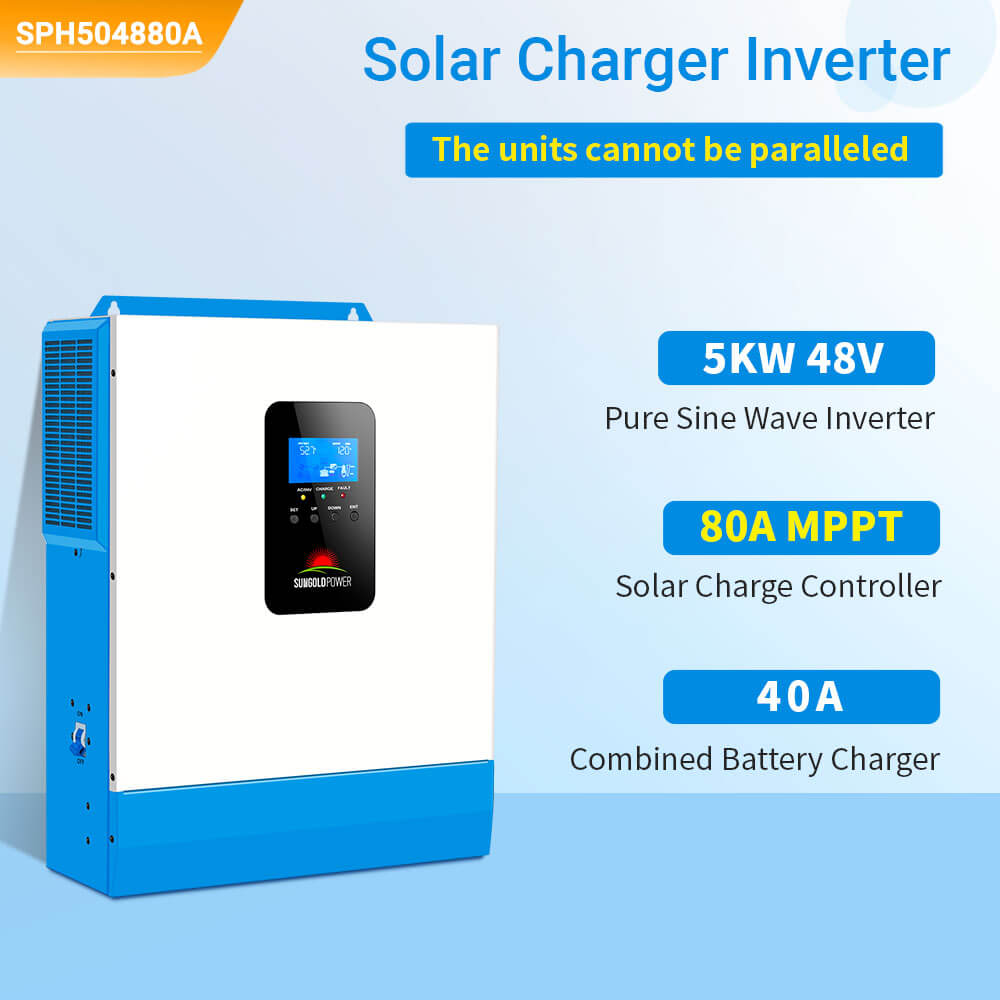

80A MPPT single-unit option

Best for straightforward 48V systems that need a capable 5000W inverter/charger without parallel expansion.

Confirm the selected variant before checkout. Parallel support applies to the SPH5048P model only.

Backup-ready operation

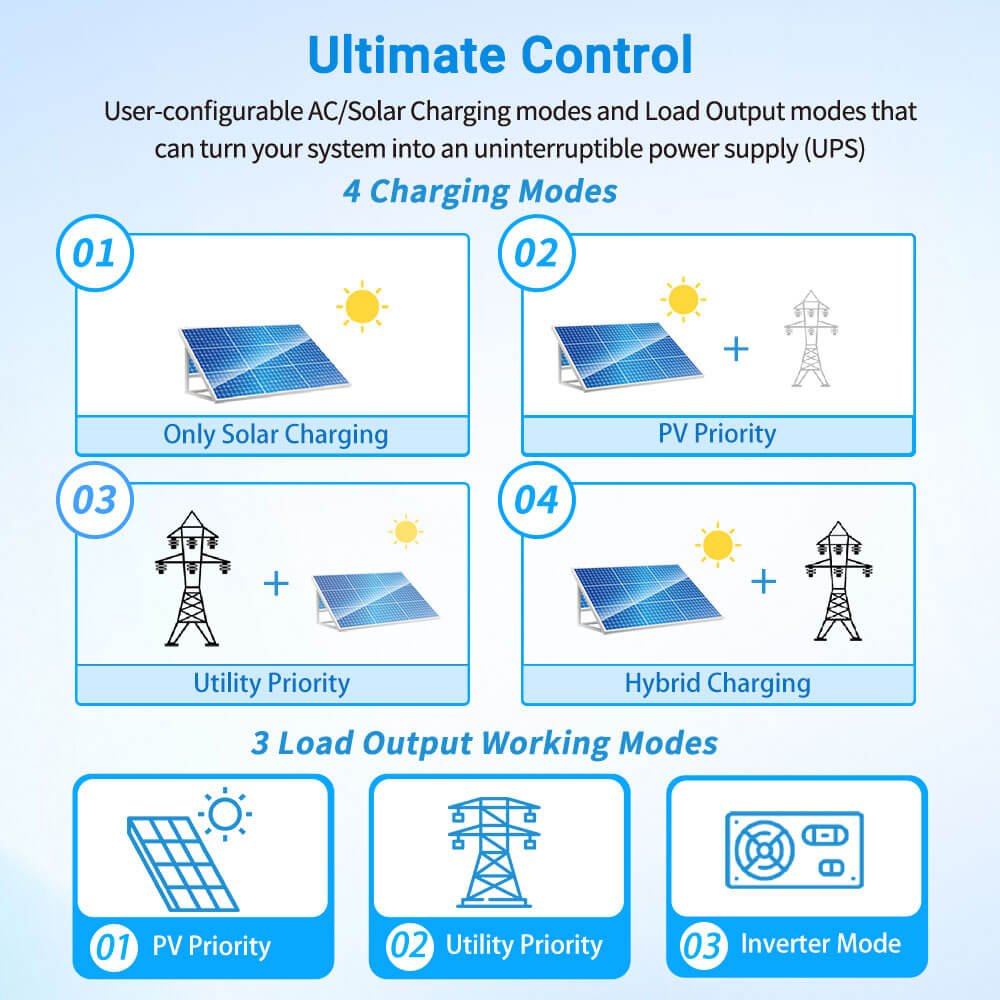

Configurable charging and output modes

Dial the system around how you actually use power. Run solar-first when you want to maximize PV production, let utility power support the system when needed, or configure inverter priority for battery-based operation.

Solar Charging Utility Backup Hybrid Control

Solar-first charging options

Use solar as the primary charging source or combine solar with AC charging depending on site conditions and battery needs.

Utility-supported backup

Keep loads running with grid/utility support when solar production is low or battery voltage reaches your configured limits.

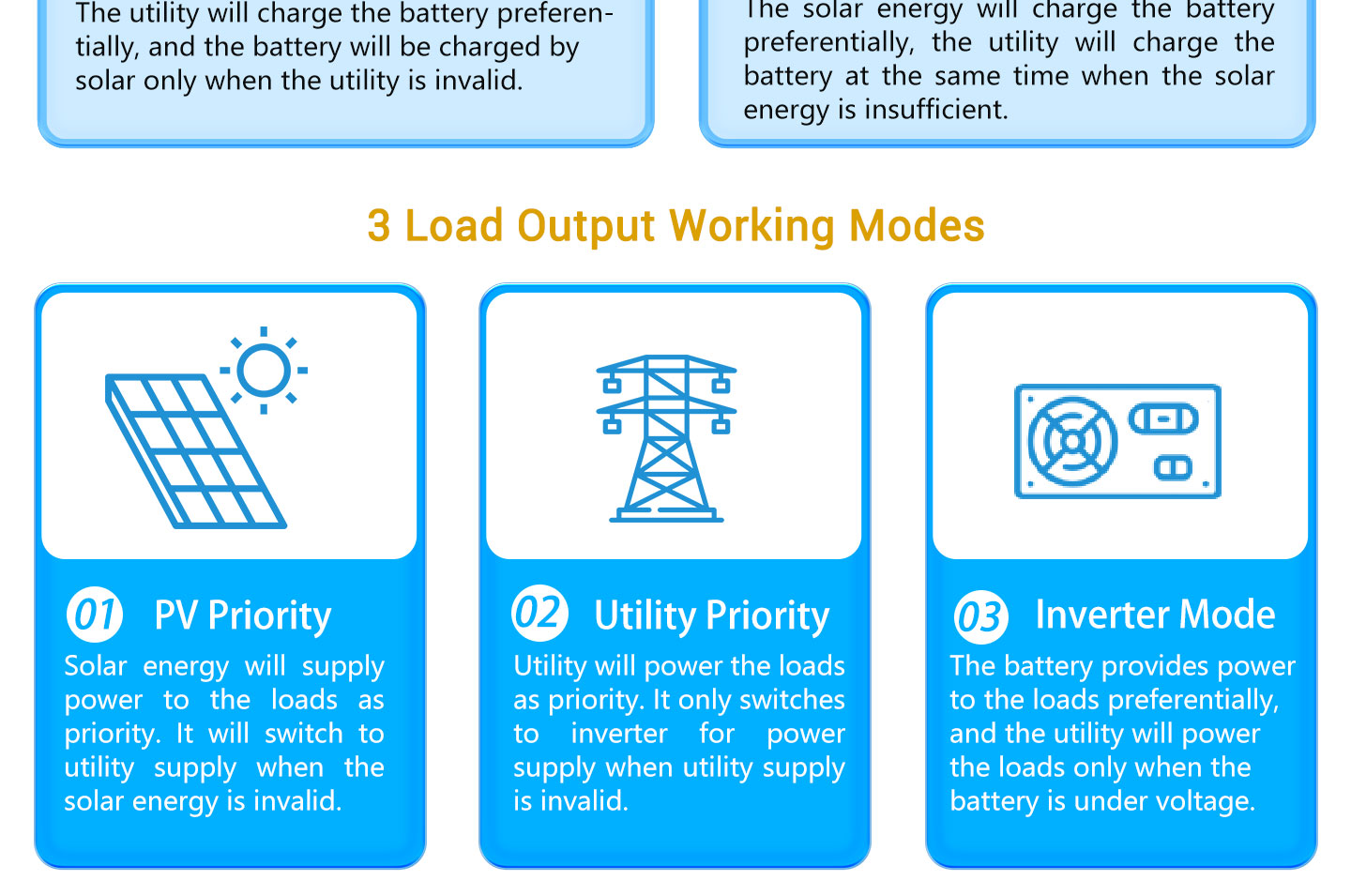

Flexible output behavior

Configure PV priority, utility priority, inverter priority, or hybrid output so the system behaves the way your home, RV, or off-grid setup needs it to.

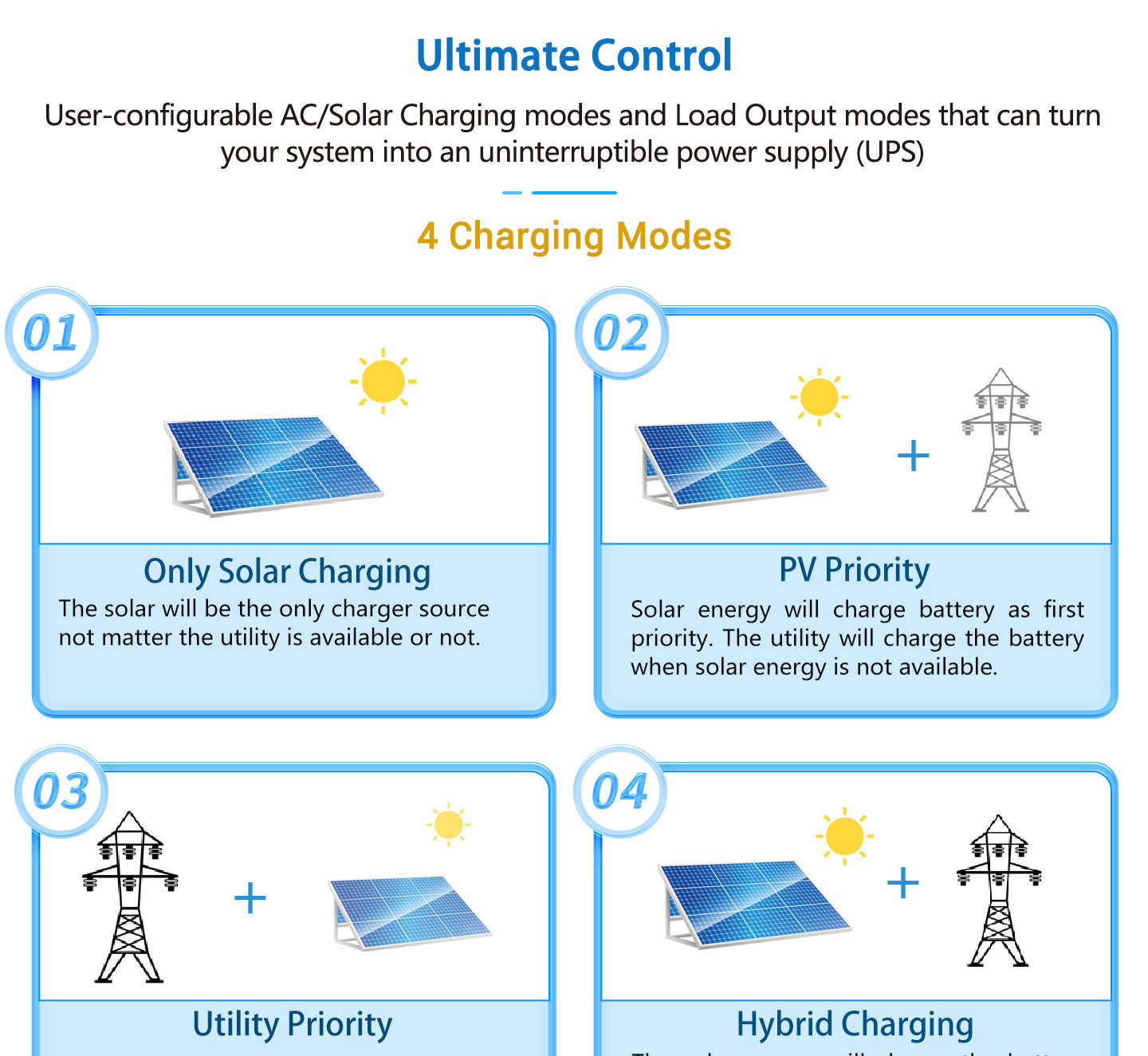

SunGoldPower configurable solar and AC charging modes

SunGoldPower UPS system backup power feature for household loads

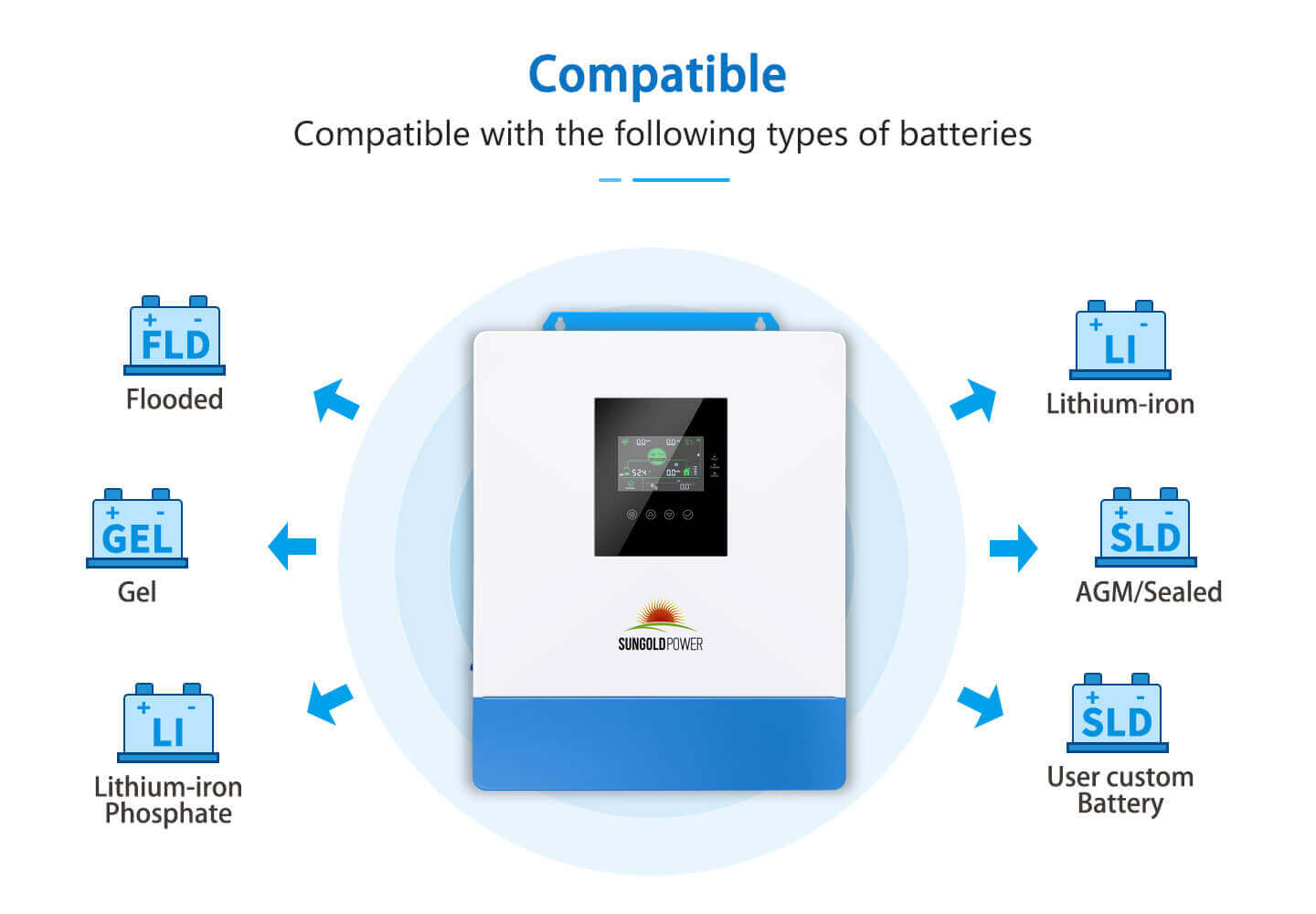

SunGoldPower 5000W inverter compatible battery types

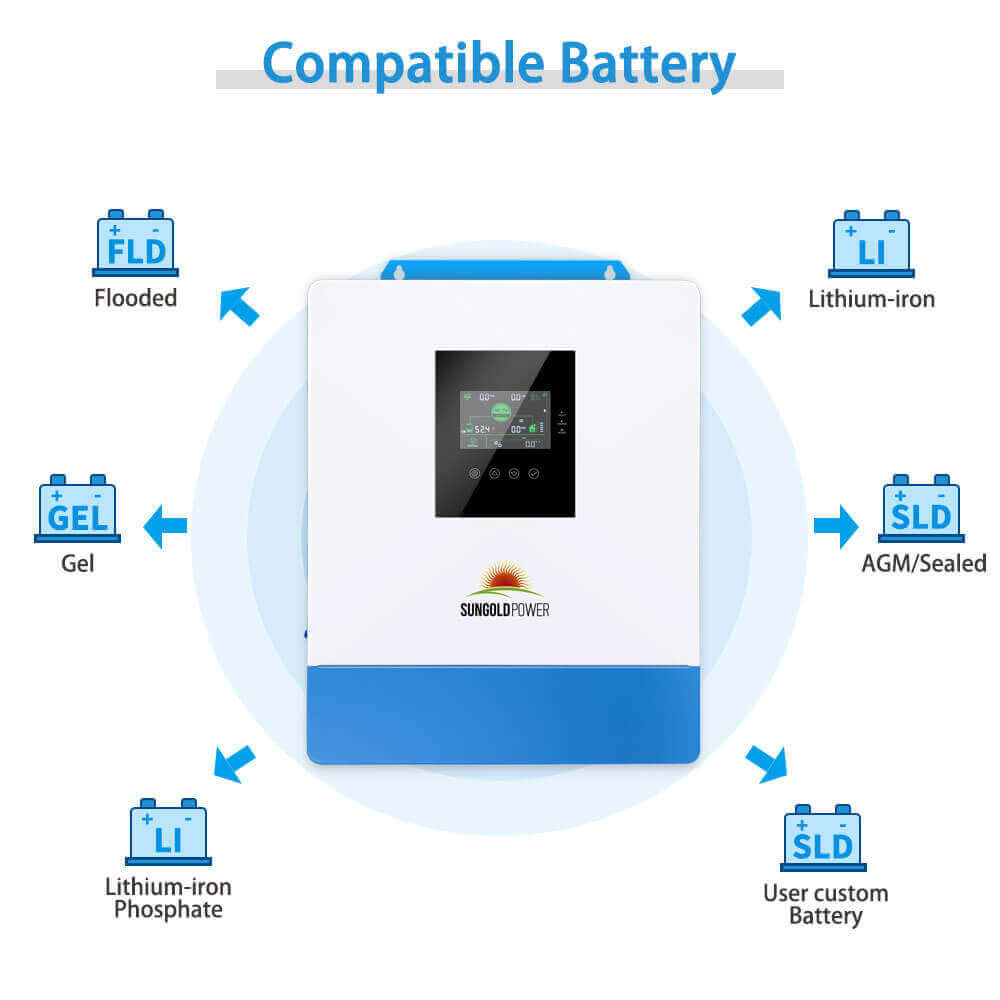

48V battery compatibility

Works with multiple battery chemistries

Build around the 48V battery bank that fits your system. This inverter supports common lead-acid and lithium battery types, including custom user settings for systems that need manual voltage configuration.

48V LiFePO₄ and lithium battery support.
AGM/sealed, gel, and flooded battery compatibility.
User-defined battery mode for custom charge parameters.
RS485 communication support for compatible lithium battery BMS setups.

Expansion and applications

From cabins and RVs to larger home backup builds

Use it as the heart of a 48V solar power system for backup loads, off-grid living, RV power, workshops, and property systems where solar, battery storage, and AC power need to work together.

Home Backup Off-Grid / RV Larger Systems

Backup power for priority loads

Pair with a properly sized 48V battery bank and solar array to support refrigerators, computers, lighting, electronics, and other essential loads.

Solar power for remote setups

Use solar charging and inverter output for cabins, sheds, RVs, mobile work setups, and off-grid properties.

Parallel-ready expansion with SPH5048P

The SPH5048P can be paralleled up to 6 units for larger single-phase, split-phase, or three-phase builds when installed correctly.

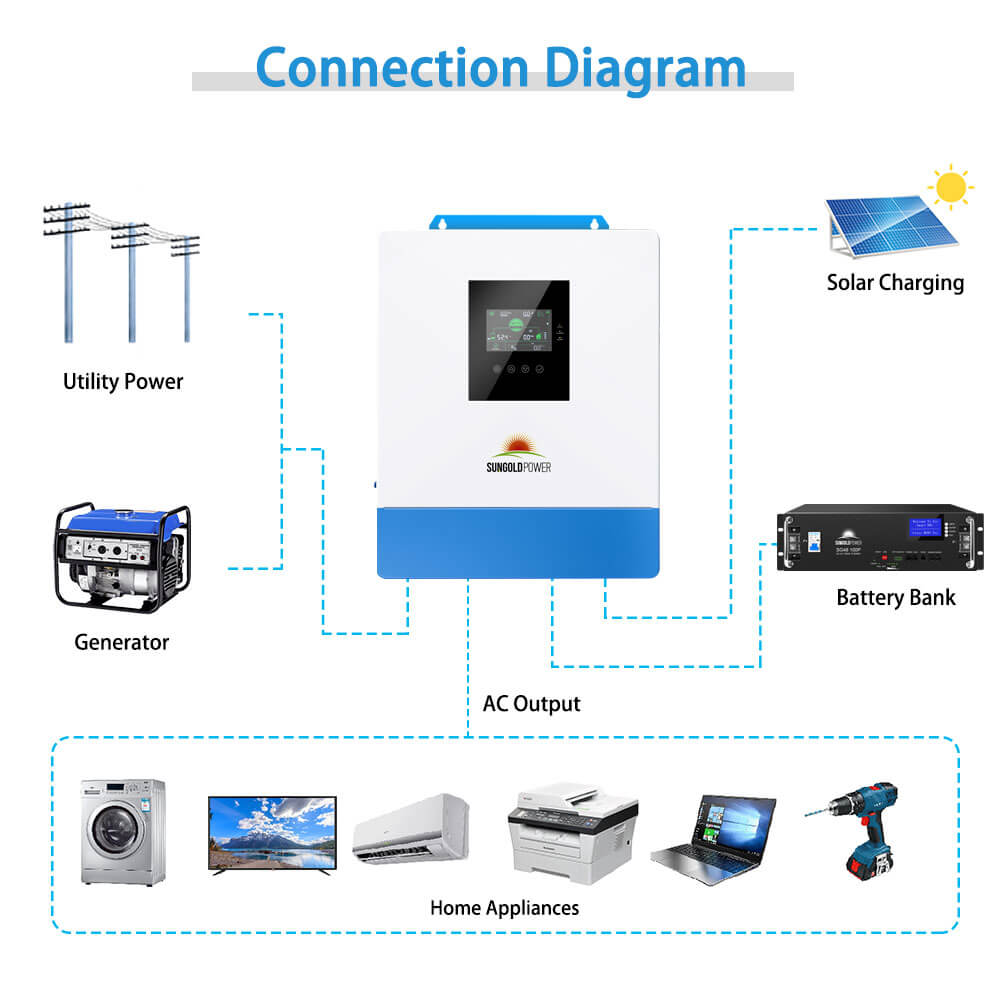

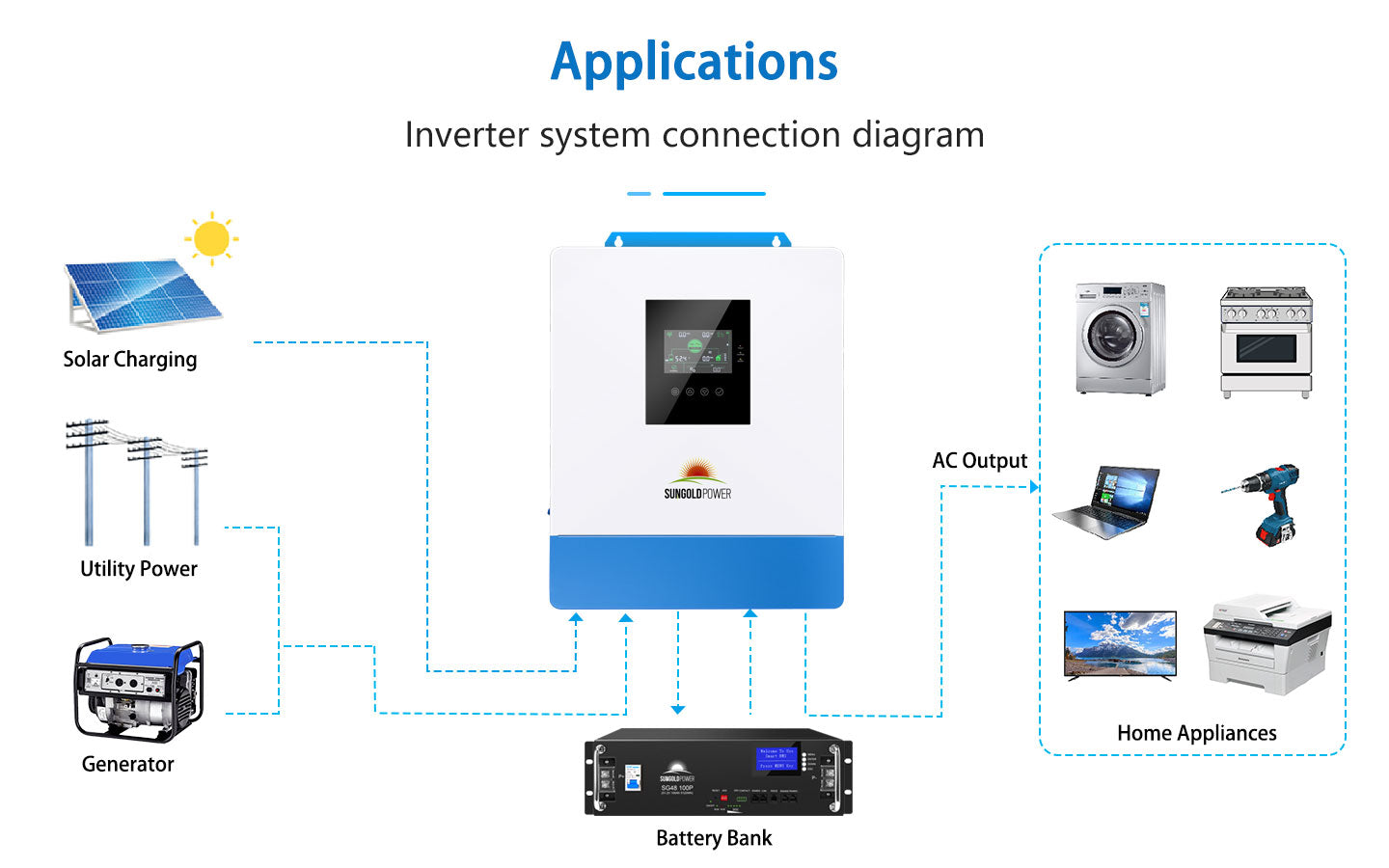

SunGoldPower inverter system connection diagram for solar charging utility generator battery and home appliances

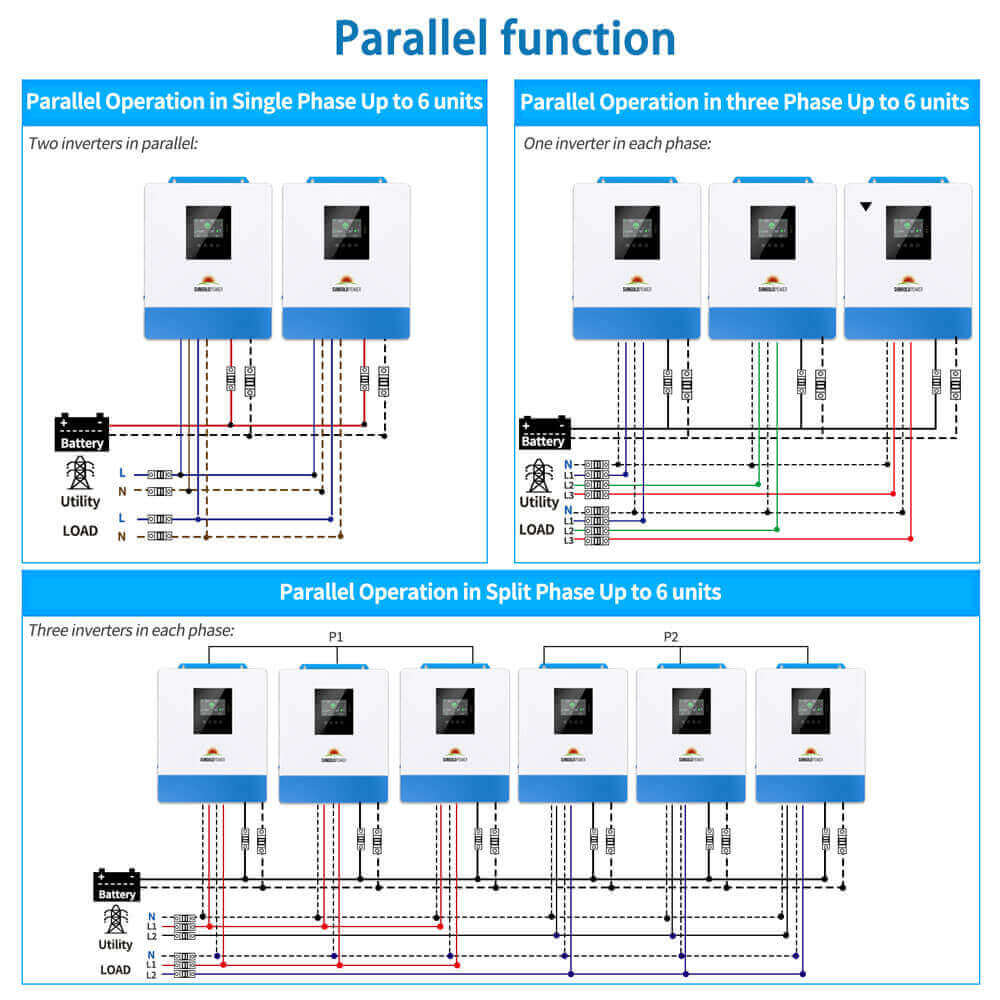

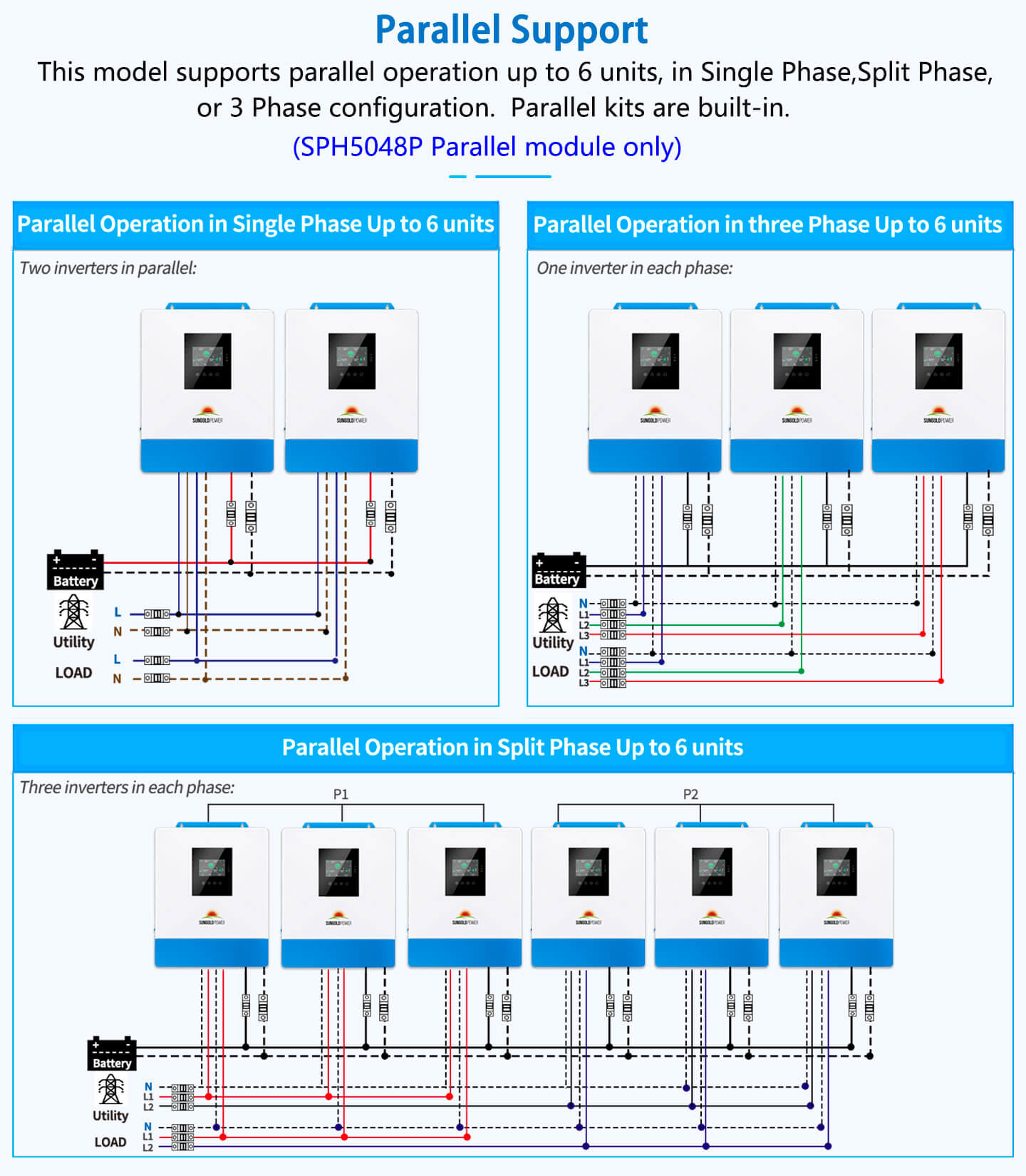

SunGoldPower SPH5048P parallel support diagram

SunGoldPower inverter applications for home commercial RV car power and camping

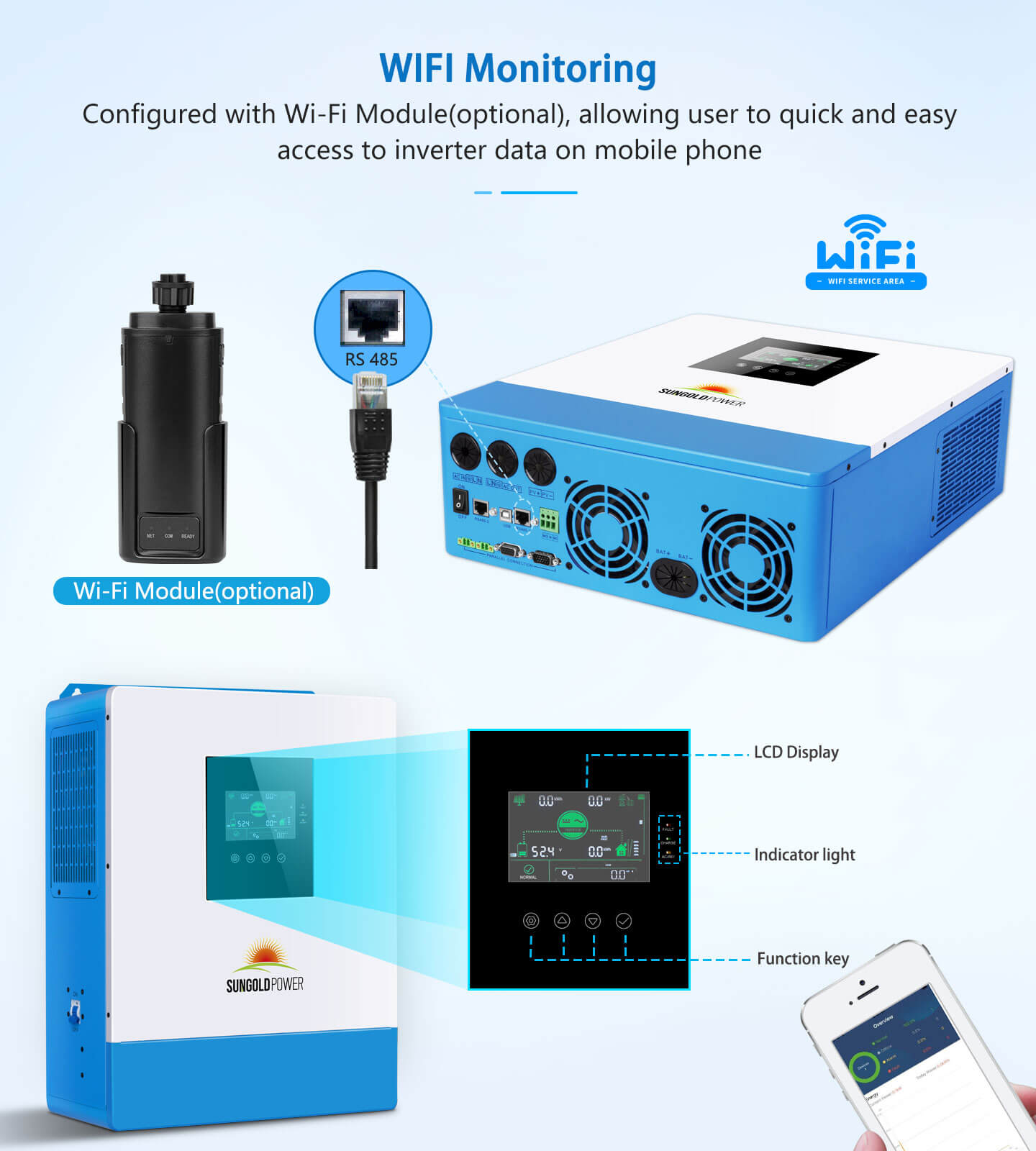

SunGoldPower inverter display controls and optional Wi-Fi monitoring module

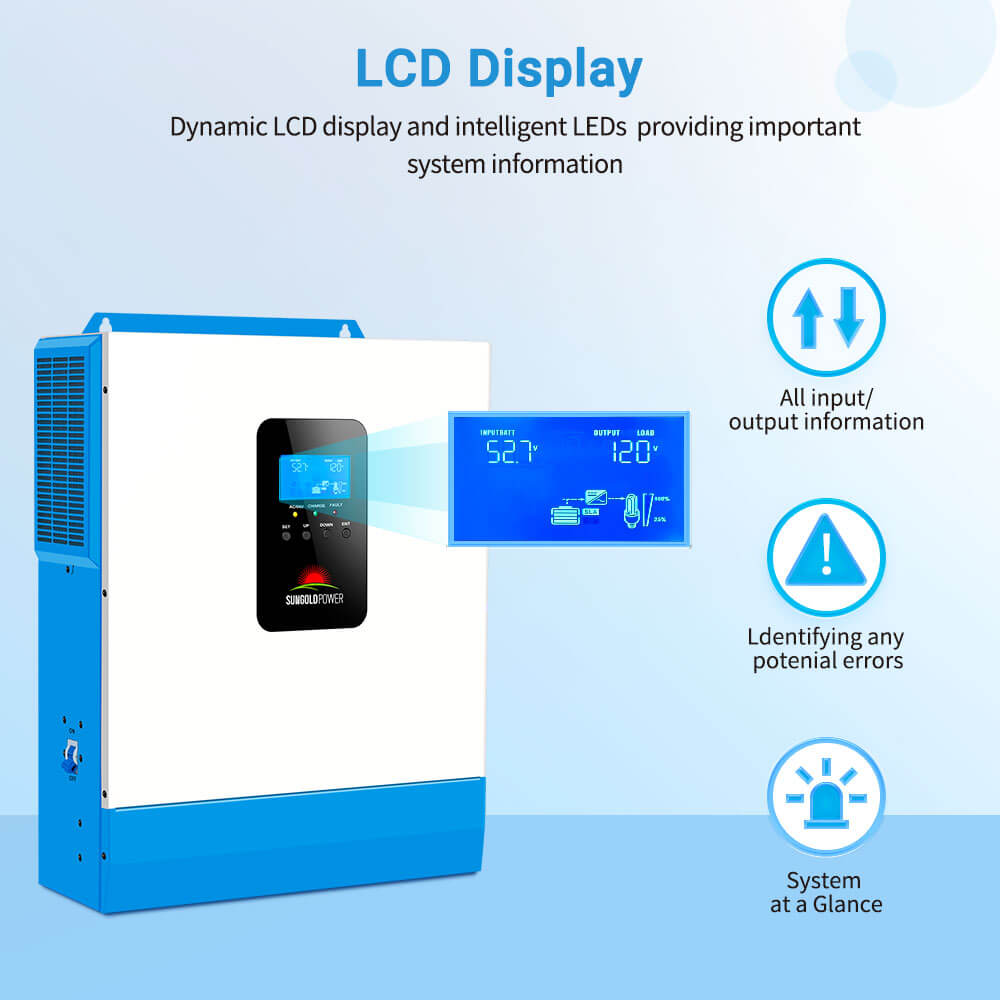

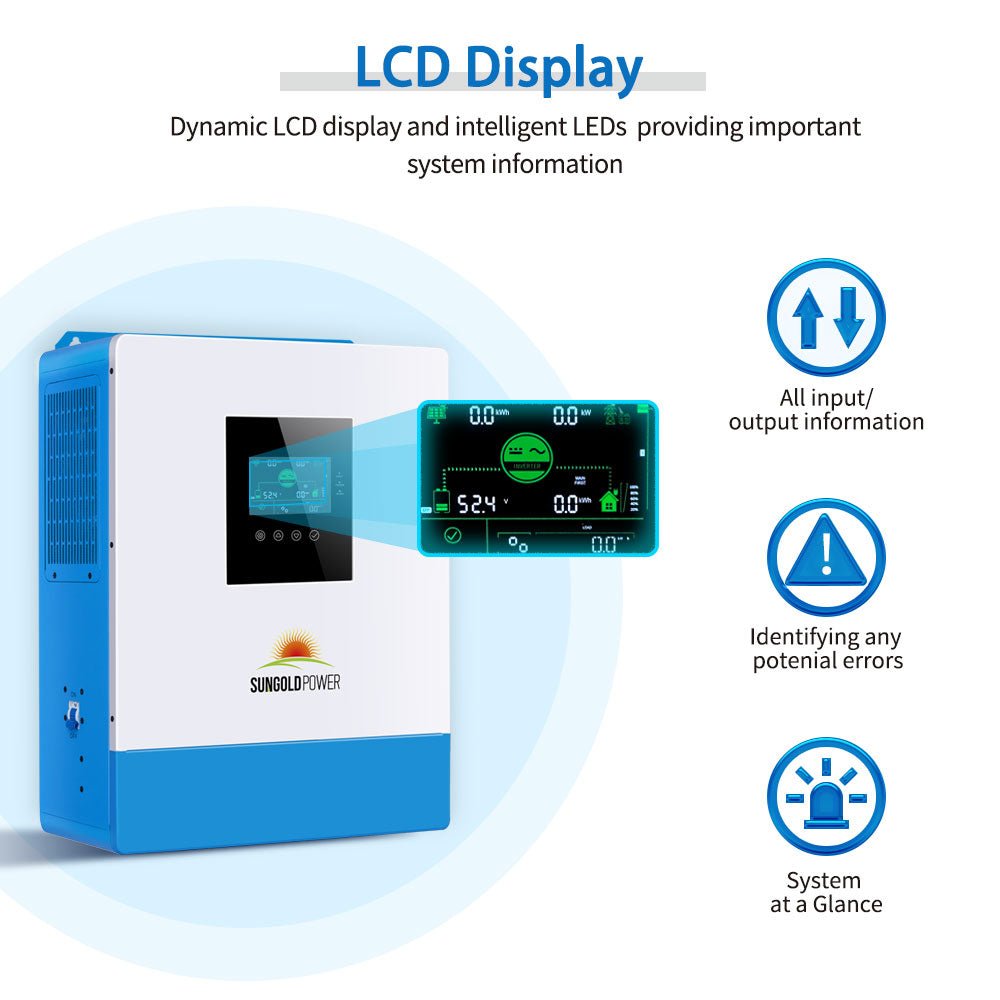

Monitoring and controls

Easy system visibility from the unit

The front display and control keys make it easier to view inverter status, battery information, and operating behavior. Optional Wi-Fi monitoring support may be available depending on the selected setup and accessories.
