1 / 6Rich Solar 1600 Watt Solar Kit
- 1,600W continuous outputRated AC output for running tools, appliances and backup circuits.
Chat with our team, call support or check your expected loads before ordering.
Rich Solar RS-K1660 1600 Watt Solar Kit with 60A MPPT Controller

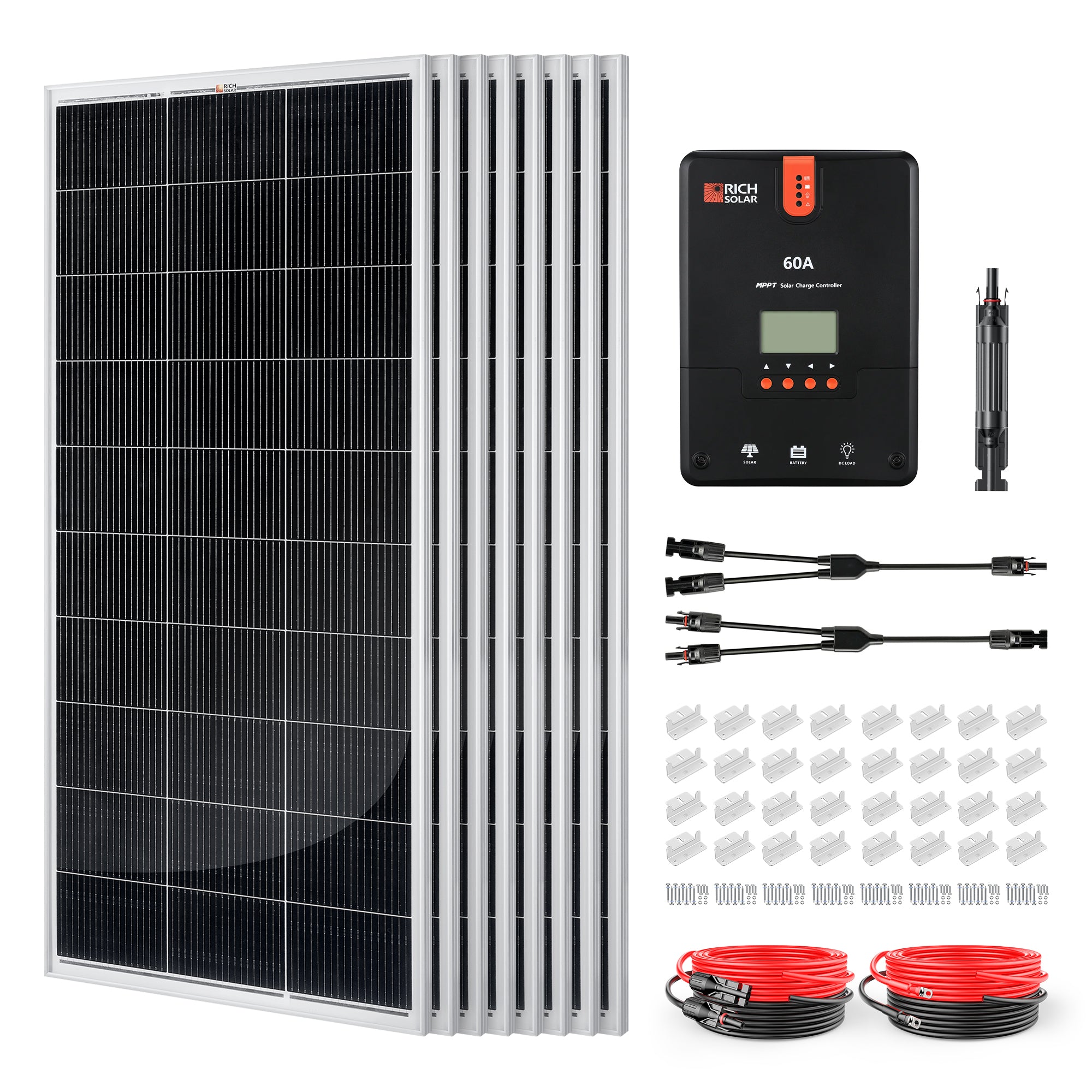

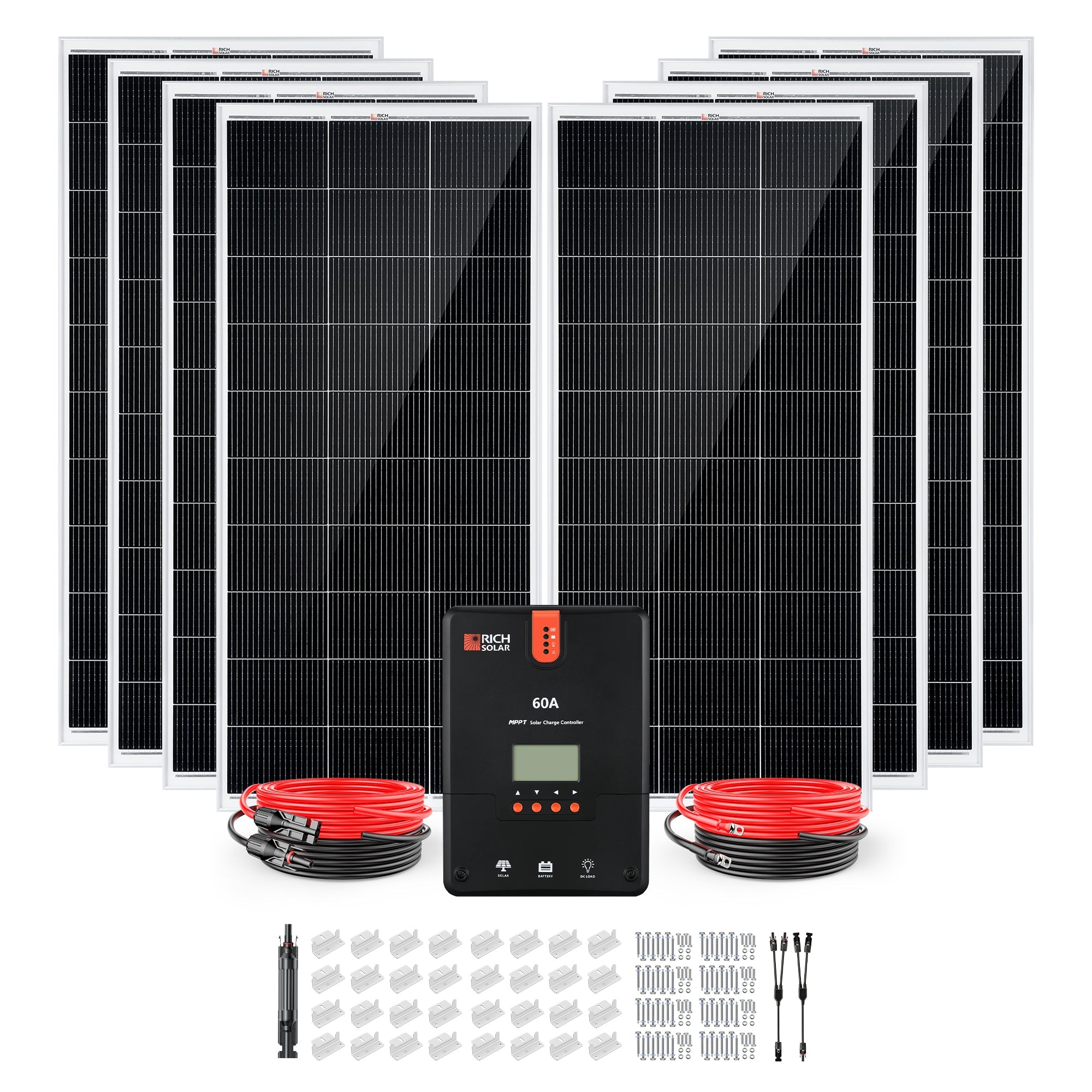

The Rich Solar RS-K1660 1600 Watt Solar Kit is a large solar charging package built for RVs, boats, trailers, cabins, sheds, remote buildings, and off-grid battery systems that need serious panel output. With eight MEGA 200W monocrystalline solar panels, a 60A MPPT solar charge controller, solar cables, battery cables, mounting brackets, Y branch parallel adapters, and a 30A inline fuse holder, this kit gives customers a strong 24V solar charging foundation for larger battery-based power systems.
Product Overview
The RS-K1660 is built for customers who need more solar input than a smaller RV or cabin kit can provide. With 1600W of panel capacity and a 60A MPPT controller, it is a strong fit for larger off-grid solar charging systems, extended boondocking setups, remote property power, workshop battery banks, and cabin energy systems.
This is a solar charging kit, not a full power system. It includes the solar panels, charge controller, wiring, mounting brackets, Y branch adapters, and fuse holder needed to build the solar charging side of the system. Customers still need a compatible battery bank, inverter, breakers, disconnects, proper wire sizing, and a safe system design for their specific loads.
What Comes in the Kit
The RS-K1660 bundles the major solar charging components needed for a larger 24V battery-based system. It includes eight solar panels, the 60A MPPT controller, solar cables, battery cables, mounting brackets, fuse protection, and Y branch adapters.

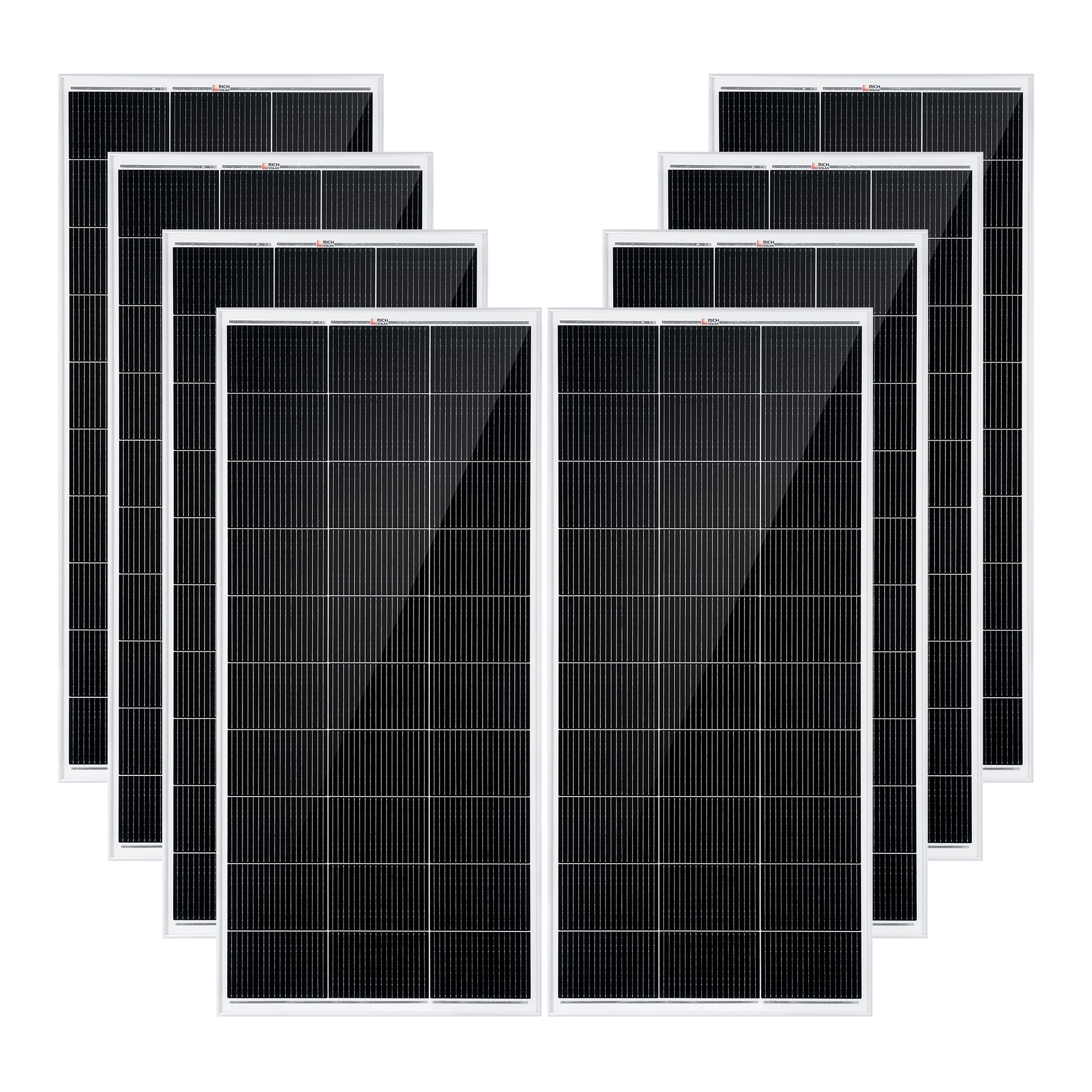

Eight 200W monocrystalline solar panels create a 1600W solar array for larger RV, boat, trailer, cabin, and off-grid charging systems. Each panel is rated at 200W and can work in series or parallel designs when the system is planned correctly.

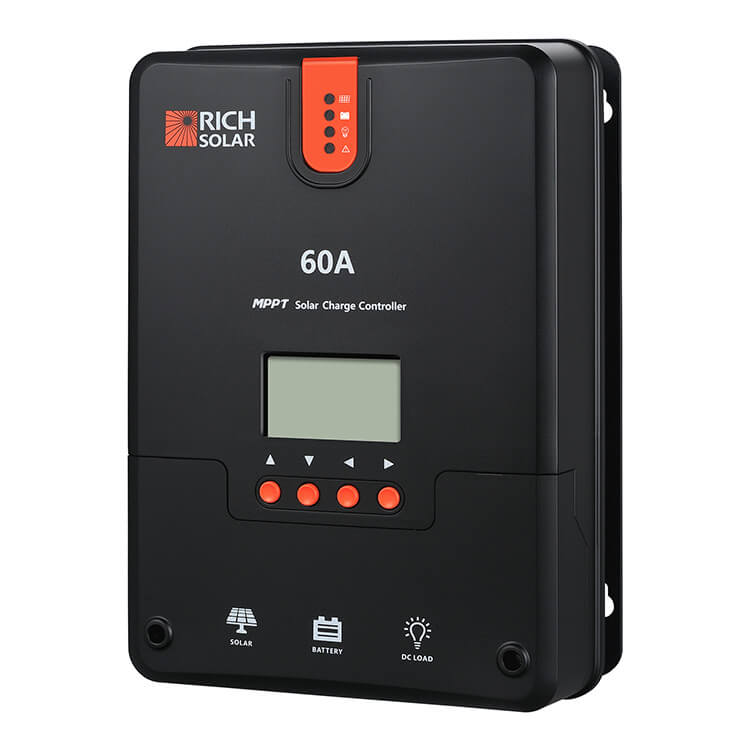

The included 60A MPPT controller supports automatic 12V, 24V, 36V, and 48V DC system voltage detection, deep-cycle battery compatibility, high MPPT tracking efficiency, LCD and LED monitoring, load control, and electronic protection features.

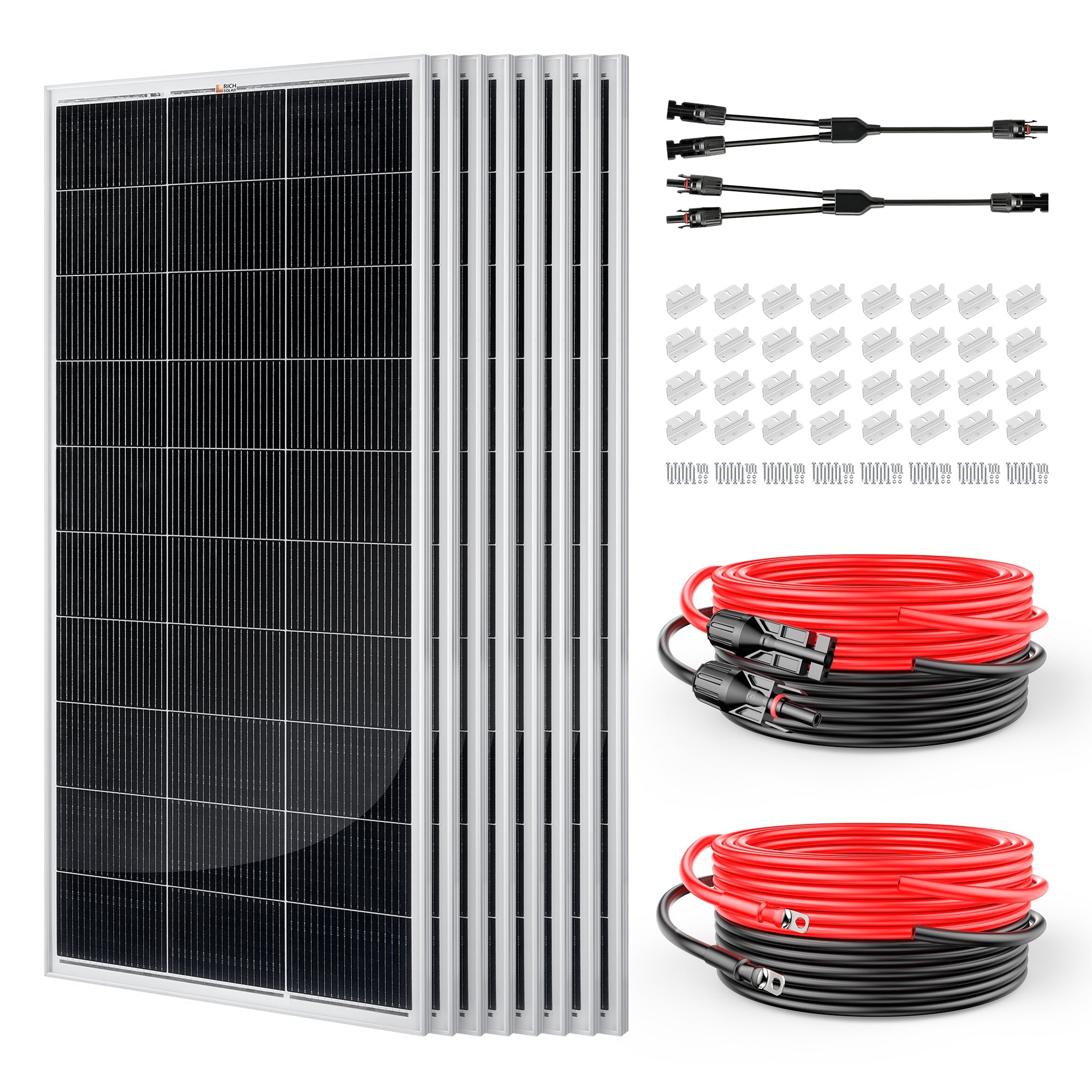

The kit includes red and black 20 ft #10 solar cables, red and black 10 ft #8 battery cables, eight sets of mounting Z brackets, one 30A inline fuse holder with fuse, and one set of Y branch parallel adapters.

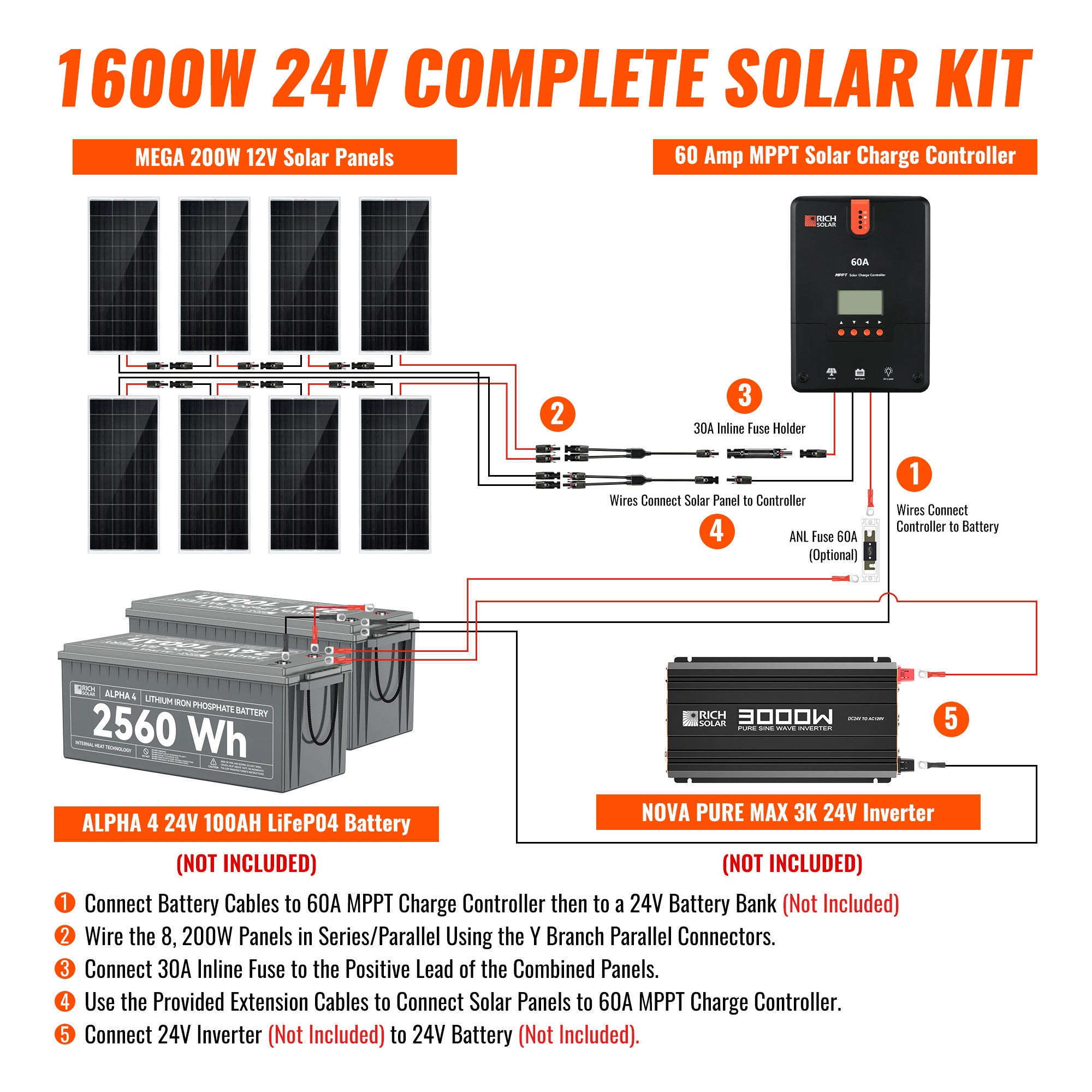

Designed Around a Larger 24V Battery Bank
Rich Solar positions this as its largest 24V kit and notes that it can be paired with a 400Ah 24V battery bank. That makes it a strong option for customers who need meaningful daily solar harvest instead of a small maintenance or weekend-only solar setup.
Key Features That Matter
This description keeps the focus on the buying decision: solar production, MPPT controller capability, 24V battery bank potential, included wiring and mounting components, system expandability, and whether this kit fits the customer’s real daily energy use.
The included MEGA 200 panels generate 10.9 amps each and are built with anti-reflective coated tempered glass, anodized aluminum frames, quick-connect cables, and pre-drilled holes for easier mounting across RV, cabin, boat, and off-grid applications.
The 60A controller uses MPPT technology with tracking efficiency up to 99% and peak conversion efficiency of 98%. It helps manage solar charging more efficiently than basic PWM-style control when installed with a compatible solar array and battery bank.

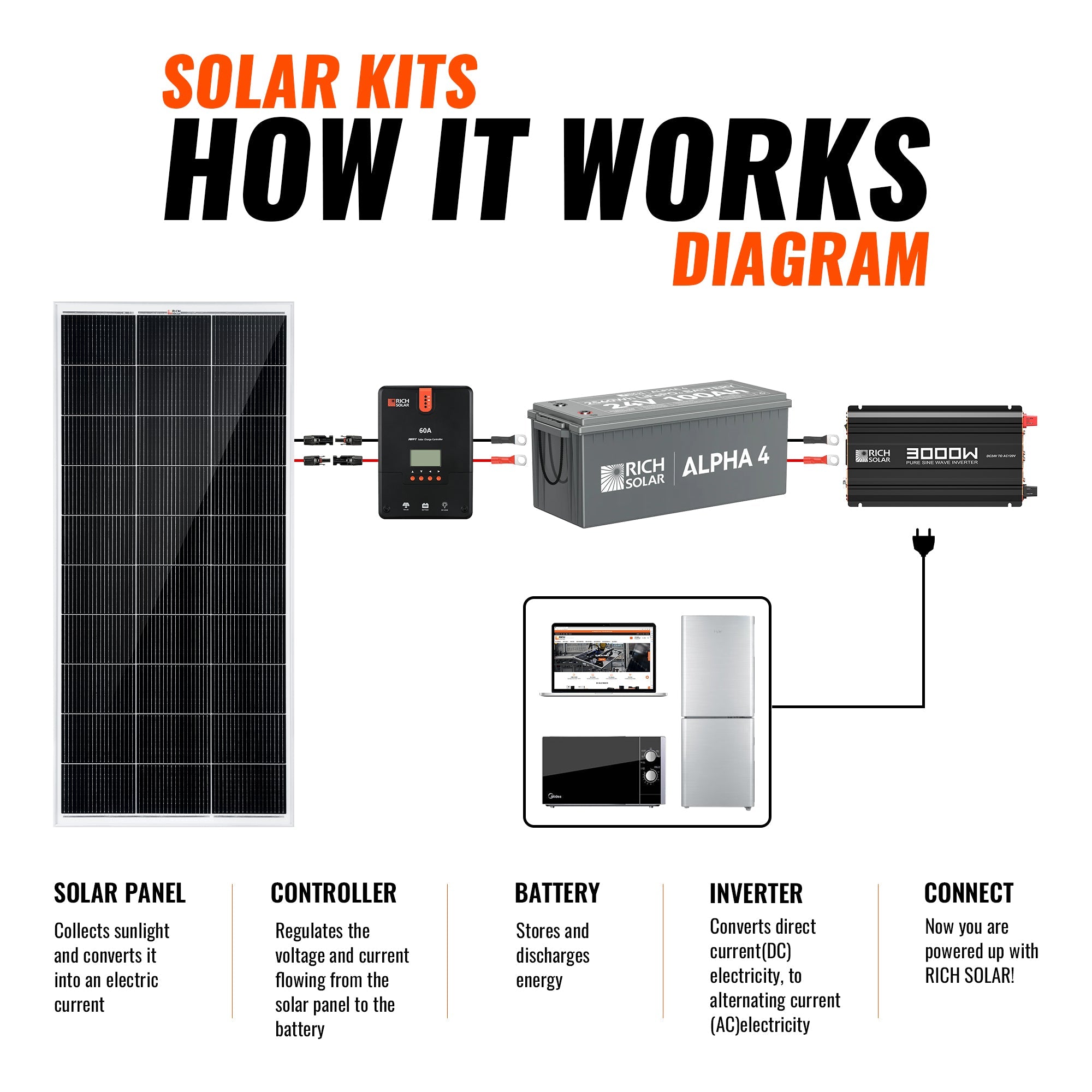

The kit is designed to charge a compatible battery bank through the included MPPT controller. When paired with the correct battery, inverter, disconnects, breakers, and wiring, it can become part of a larger RV, cabin, boat, or off-grid power system.
The included solar cables, battery cables, mounting brackets, Y branch adapters, and inline fuse holder help reduce the number of separate parts customers need to source before planning the installation.
MEGA 200 Panel Highlights
- 8 x MEGA 200 Watt solar panels
- 200W wattage per panel
- 1600W total panel capacity
- 10.9A maximum power current per panel
- 18.4V maximum power voltage per panel
- 21.8V open circuit voltage per panel
- Excellent low-light performance
- Anti-reflective coated tempered glass
- Anodized aluminum frame
- Pre-drilled mounting holes
- Works in series or parallel when properly designed
60A MPPT Controller Highlights
- Automatically detects 12V, 24V, 36V, and 48V DC system voltages
- Compatible with Sealed, Gel, Flooded, and Lithium deep-cycle batteries
- MPPT tracking efficiency up to 99%
- Peak conversion efficiency of 98%
- Rated battery current: 60A
- Rated load current: 20A
- Max solar input voltage: 150V at 77°F
- Max solar input power: 1600W at 24V
- LCD screen and LED indicators
- RS232 port for BT-1 Bluetooth module communication
Best Uses
- Larger RV solar charging systems
- Travel trailers, toy haulers, and camper power systems
- Boat and compatible marine solar charging setups
- Off-grid cabins and remote buildings
- Workshops, sheds, barns, and remote property systems
- 24V battery bank solar charging
- Customers planning around a 400Ah 24V battery bank
- DIY off-grid systems that need 1600W of solar input
- Systems where a smaller 400W, 800W, or 1200W kit is not enough
Key Benefits
- 1600 Watt solar charging kit
- 8 x 200W monocrystalline MEGA solar panels
- 1 x 60A MPPT solar charge controller
- 1 x 20 ft #10 red solar cable for panel-to-controller connection
- 1 x 20 ft #10 black solar cable for panel-to-controller connection
- 1 x 10 ft #8 red battery cable for controller-to-battery connection
- 1 x 10 ft #8 black battery cable for controller-to-battery connection
- 8 x mounting Z bracket sets
- 1 x 30A inline fuse holder with fuse
- 1 x Y branch parallel adapter set
- 60A MPPT controller supports 12V / 24V / 36V / 48V system detection
- MPPT tracking efficiency up to 99%
- Peak conversion efficiency of 98%
- Built for larger 24V battery-based solar charging systems
- Useful for RVs, boats, trailers, cabins, and off-grid solar power systems
