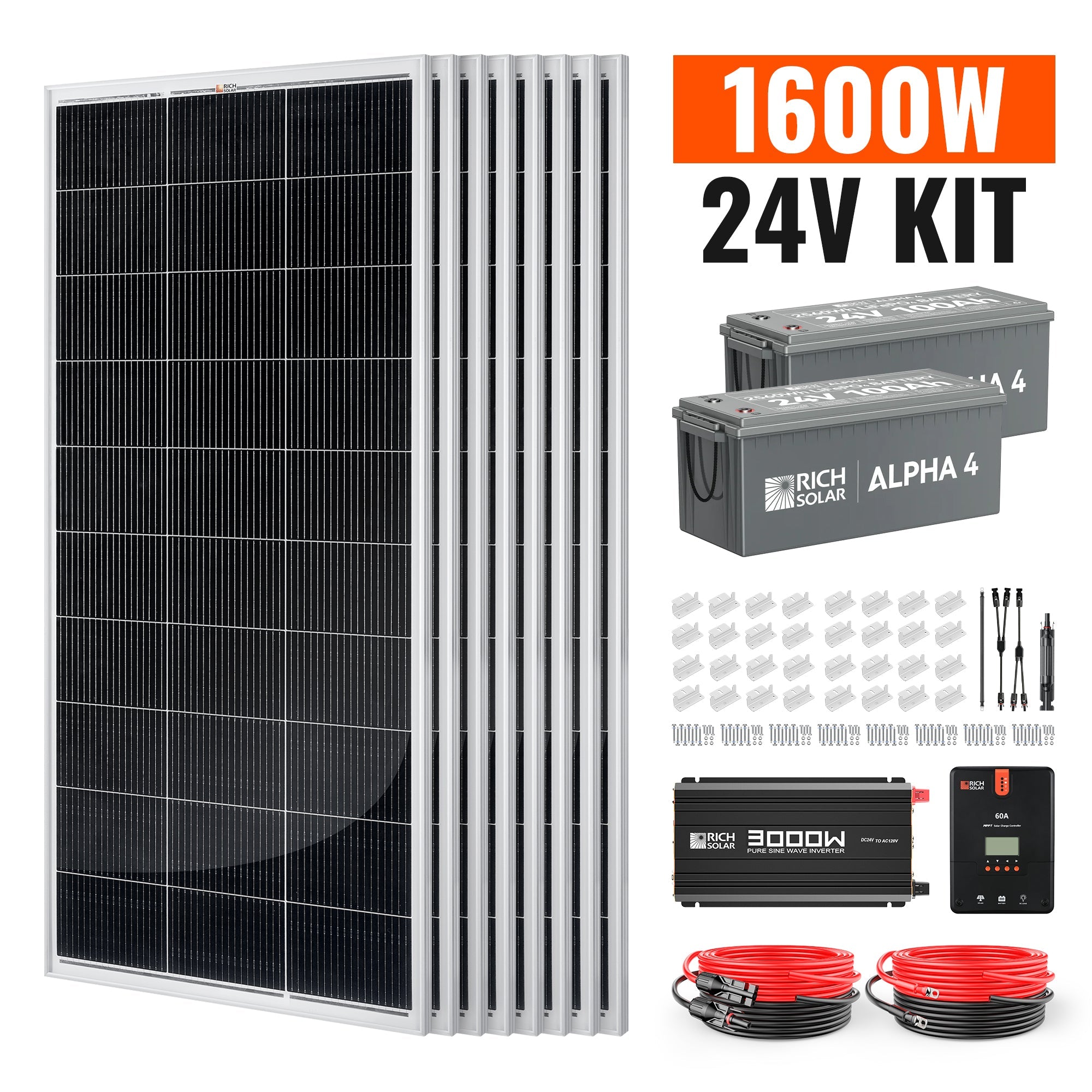

Rich Solar RS-CK1600 1600 Watt 24V Complete Solar Kit
The Rich Solar RS-CK1600 1600 Watt 24V Complete Solar Kit is a full battery-based solar package for RVs, travel trailers, tiny homes, cabins, boats, sheds, workshops, and off-grid power systems that need panels, storage, inverter output, and charge control in one matched bundle. With eight MEGA 200W solar panels, two ALPHA 4 24V 100Ah LiFePO4 batteries, a NOVA 3000W 24V pure sine wave inverter, and a 60A MPPT charge controller, this kit gives customers a serious 24V platform for producing, storing, and using solar power.
Product Overview

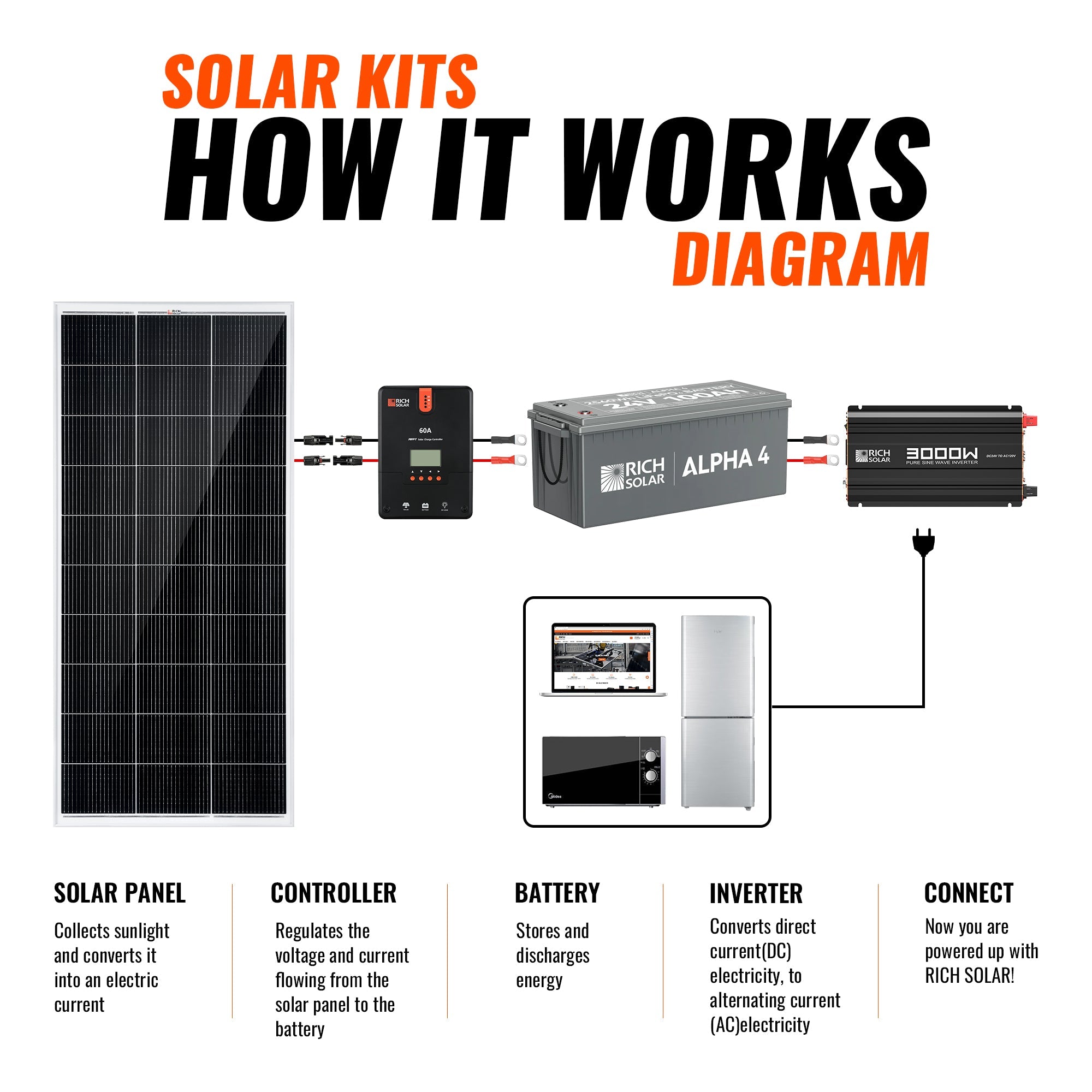

The RS-CK1600 is built for customers who want more than a solar charging kit. It includes the major pieces needed for a usable 24V solar power system: solar generation, lithium battery storage, DC-to-AC inverter output, and MPPT solar charging control.
This kit is a strong fit for larger RV builds, off-grid travel trailers, tiny homes, cabins, sheds, boats, workshops, and remote buildings where customers need reliable solar input and stored energy for everyday 120V AC loads. It still requires proper installation, system protection, fusing, disconnects, grounding, cable routing, and load planning.
What Comes in the Kit

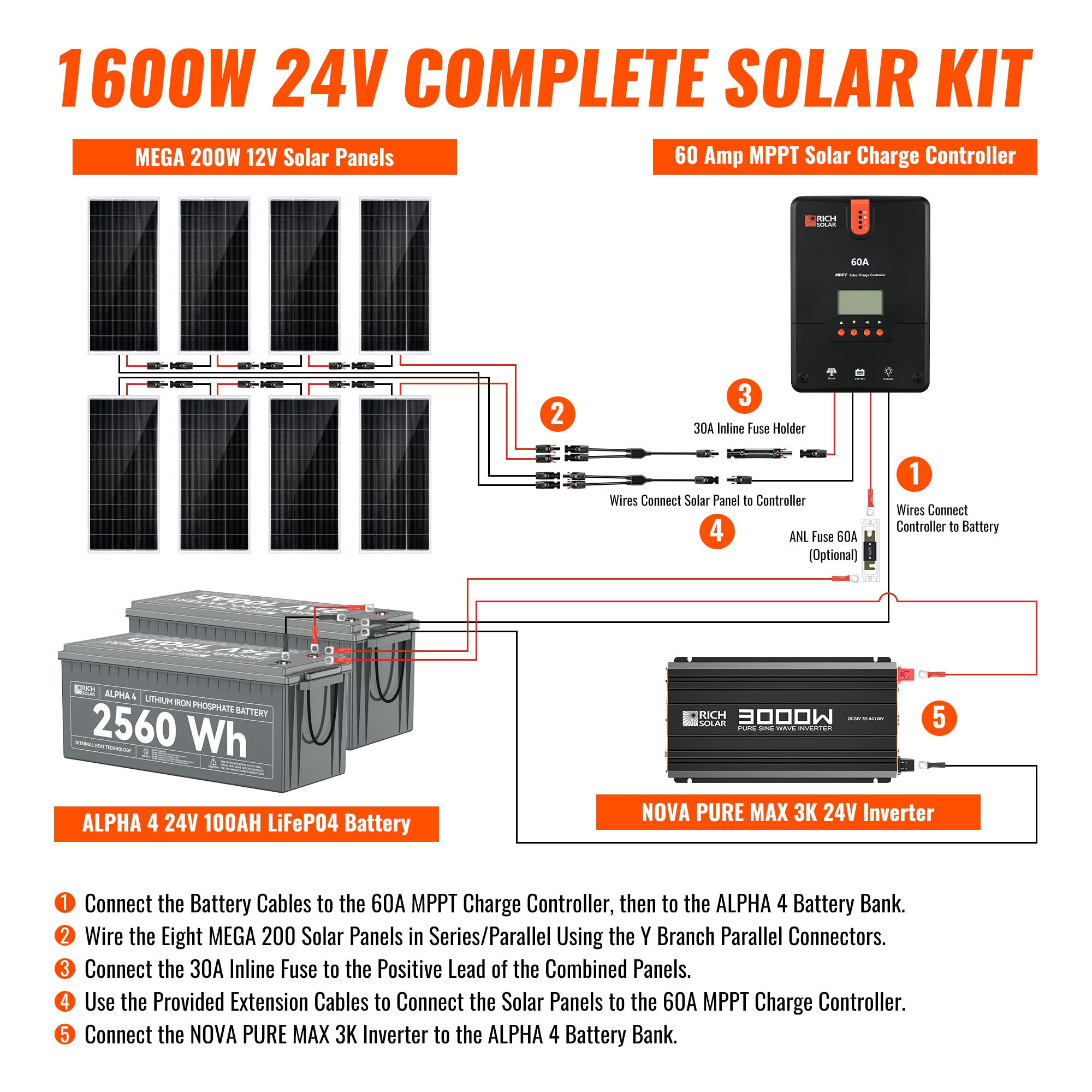

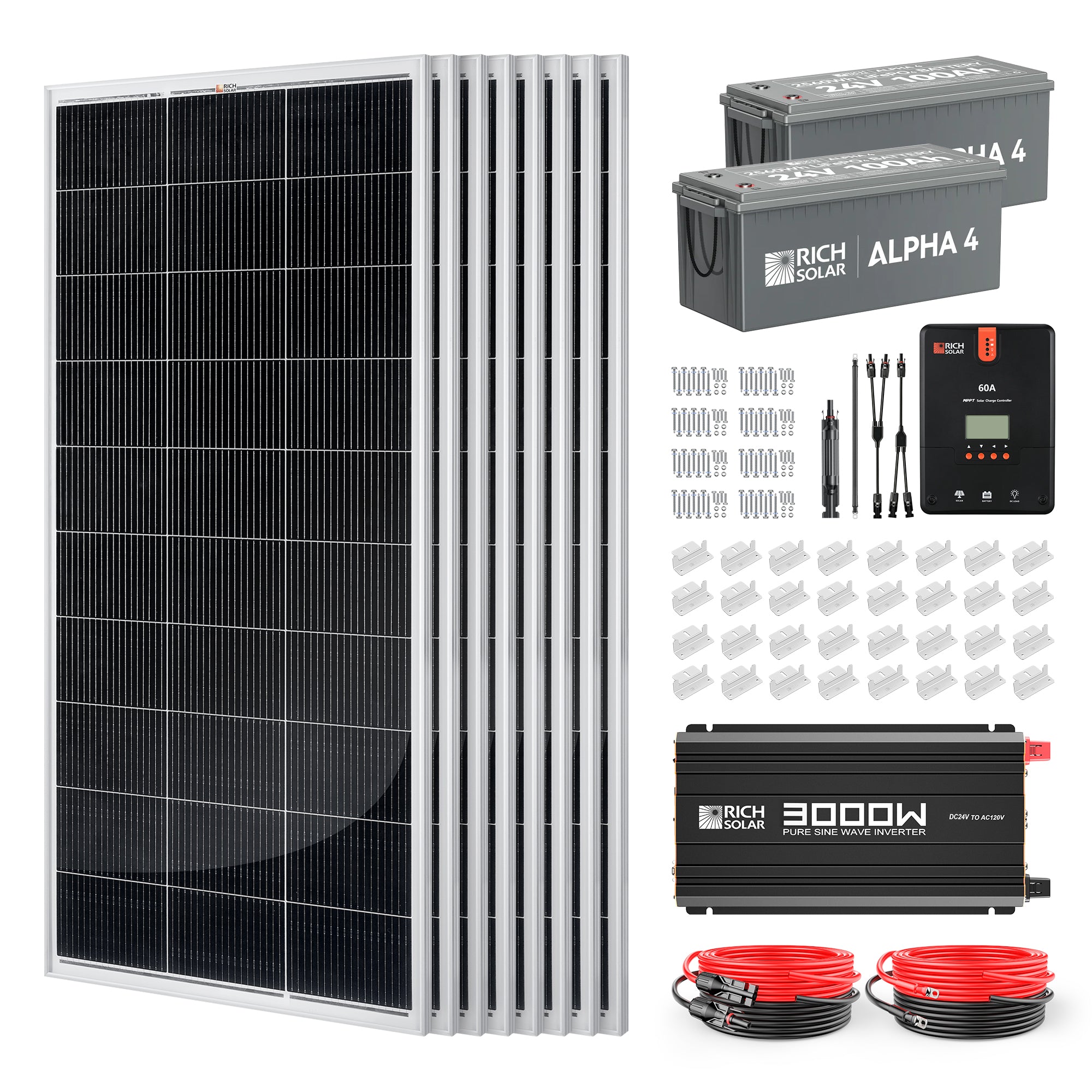

The RS-CK1600 includes the major system components needed for a 24V complete solar power build: panels, lithium batteries, inverter, charge controller, mounting brackets, fuse holder, branch adapter, and battery/solar cables.

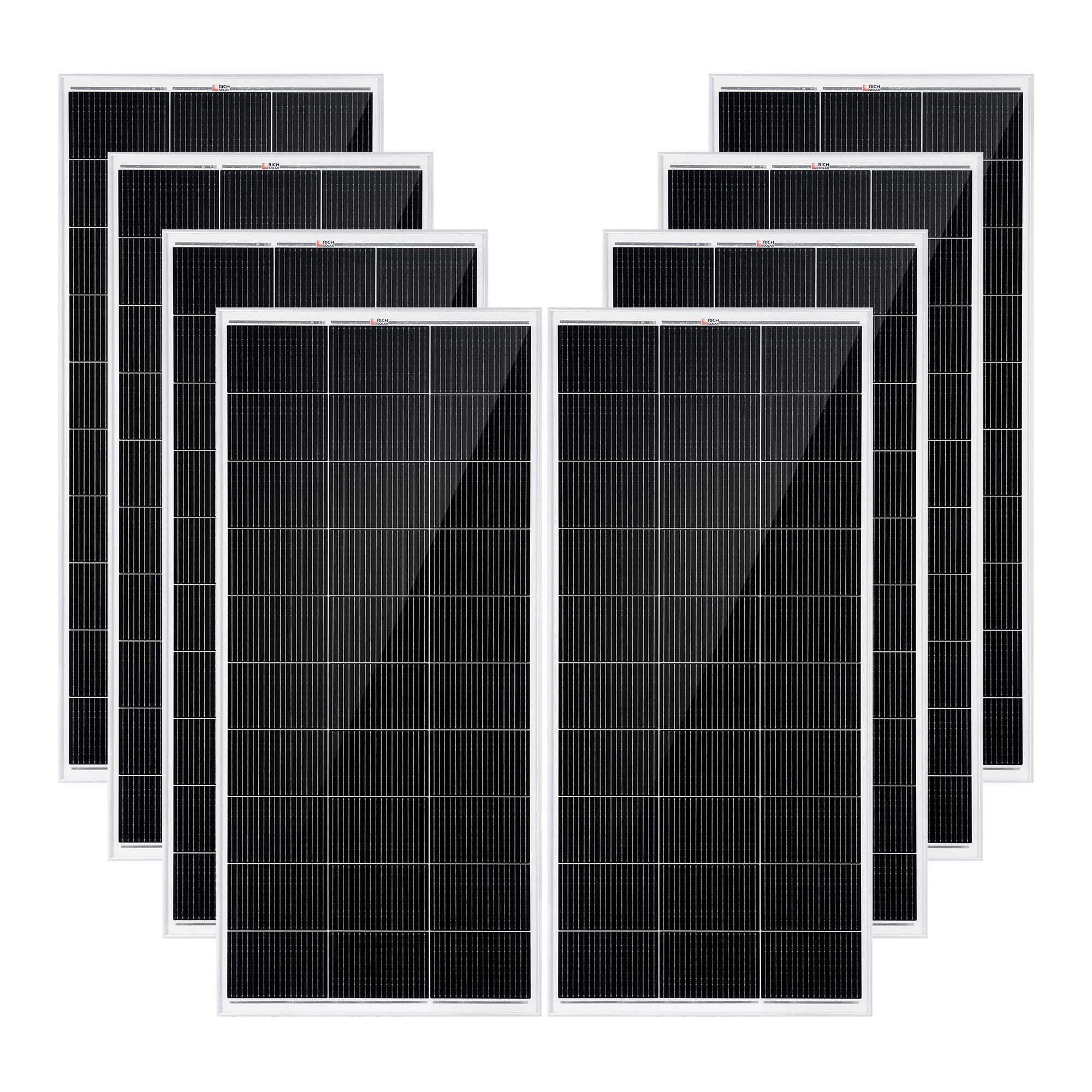

Eight 200W monocrystalline panels create a 1600W solar array for strong daily charging potential. The MEGA 200 panels are built for RVs, boats, cabins, trailers, and off-grid applications.

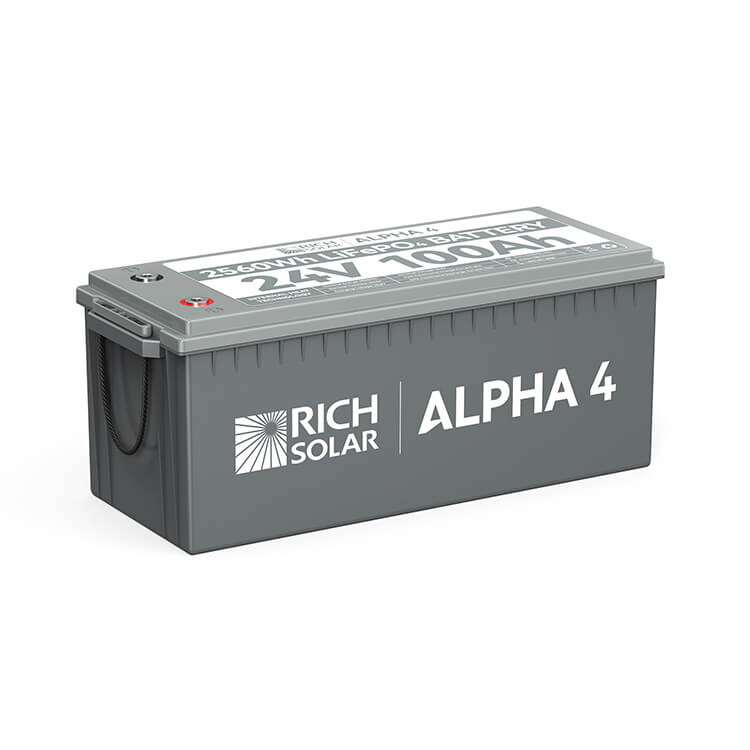

Two ALPHA 4 lithium batteries provide approximately 5120Wh of total storage. Each battery is a 25.6V 100Ah LiFePO4 battery with built-in BMS protection, self-heating capability, Bluetooth monitoring, IP65 protection, and a 5-year warranty.

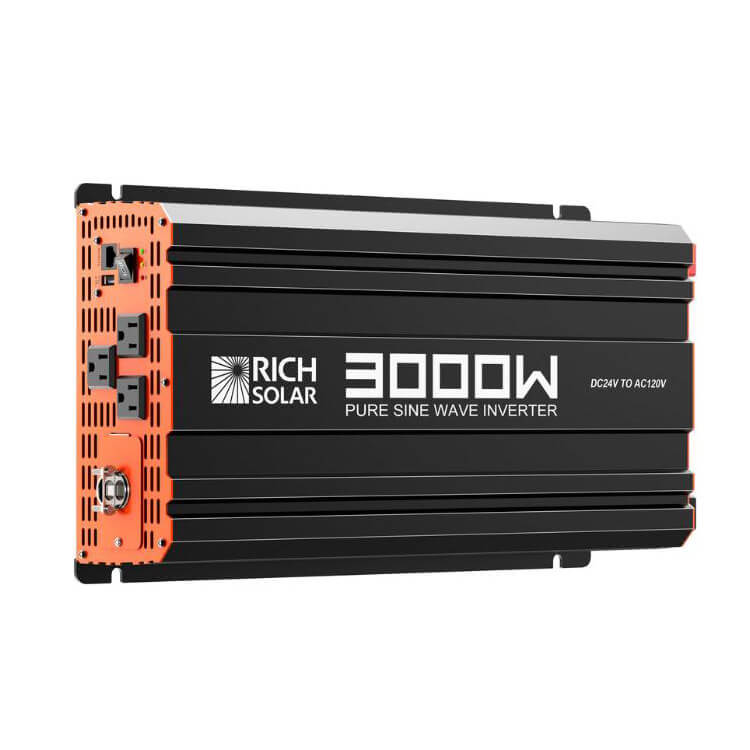

The included NOVA 3000W 24V inverter converts stored 24V DC battery power into 120V AC power. It features pure sine wave output, 6000W peak surge, three AC sockets, USB power output, and built-in protection features.

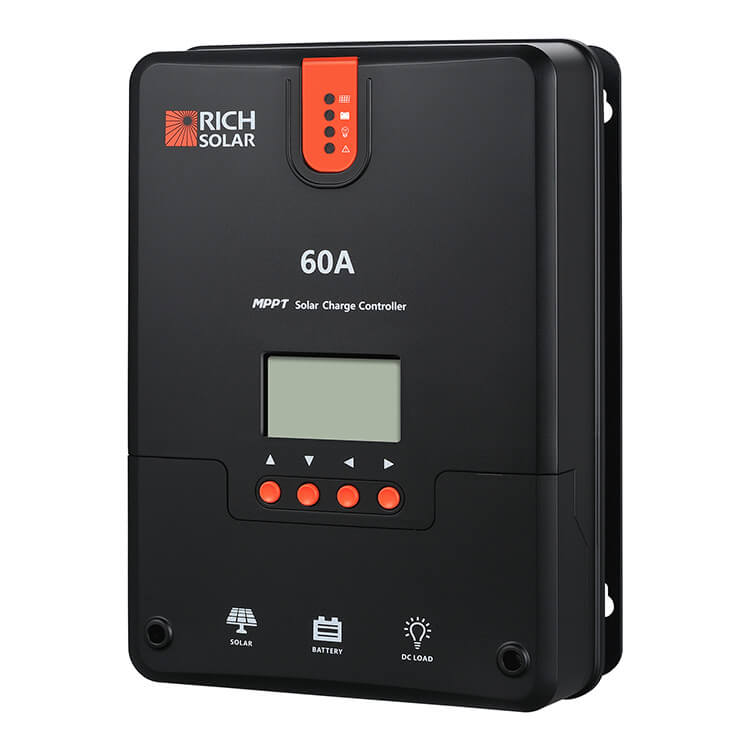

The 60A MPPT controller manages solar charging from the panel array to the battery bank. It supports automatic 12V, 24V, 36V, and 48V system detection, multiple battery types, and high-efficiency MPPT charging.
Additional Included System Components
In addition to the main panels, batteries, inverter, and charge controller, the kit includes the core mounting, cable, fuse, and adapter pieces needed to support the solar-side and battery-side installation plan.
Built for Bigger RVs, Cabins, Tiny Homes, and Off-Grid Power
This kit is made for customers who want solar production, battery storage, and 120V AC power output without piecing together every main component separately. It is much more complete than a panel/controller-only solar kit and is better suited for customers who need a practical power system foundation.
Key System Highlights
This description keeps the focus on the real buying decision: solar production, lithium battery storage, inverter output, MPPT charging, 24V architecture, and whether the system matches the customer’s actual daily energy usage.
The eight included MEGA 200 panels produce 1600W of total rated solar input. They feature anti-reflective coated tempered glass, anodized aluminum frames, pre-drilled mounting holes, and series or parallel wiring flexibility when properly designed.
The ALPHA 4 batteries give this kit a built-in storage foundation instead of requiring customers to source batteries separately. LiFePO4 chemistry, BMS protection, self-heating, Bluetooth monitoring, and IP65 protection make the battery side practical for real off-grid and mobile use.
The NOVA 3000W inverter provides 120V AC output for compatible appliances, tools, chargers, electronics, and essential loads. Pure sine wave output is better suited for sensitive electronics than modified sine wave inverter power.
The 60A controller uses MPPT charging with tracking efficiency up to 99% and peak conversion efficiency of 98%. It helps improve solar harvest and gives the system a more capable charge controller than a basic PWM setup.
Solar Panel Highlights
- 8 x MEGA 200 Watt solar panels
- 200W wattage per panel
- 1600W total panel capacity
- 10.9A maximum power current per panel
- 18.4V maximum power voltage per panel
- 21.8V open circuit voltage per panel
- Excellent low-light performance
- Anti-reflective coated tempered glass
- Anodized aluminum frame
- 14 pre-drilled mounting holes
- Works in series or parallel when properly designed
Battery, Inverter & Controller Highlights
- 2 x ALPHA 4 24V 100Ah LiFePO4 batteries
- Approx. 5120Wh total battery storage
- 5000-cycle ALPHA 4 battery platform
- Self-heating battery technology
- Bluetooth battery health monitoring
- 1 x NOVA 3000W 24V pure sine wave inverter
- 3000W continuous inverter output
- 6000W peak surge rating
- 120V AC inverter output
- 1 x 60A MPPT charge controller
- MPPT tracking efficiency up to 99%
- Max solar input power of 1600W at 24V
Best Uses
- Larger RV solar power systems
- Travel trailers, toy haulers, and camper builds
- Tiny homes and small off-grid living spaces
- Off-grid cabins and remote buildings
- Boats and compatible marine power systems
- Workshops, sheds, barns, and remote property systems
- Battery-backed essential-load power setups
- Customers who want panels, batteries, inverter, and controller in one kit
- 24V complete solar power systems with 120V AC output
Key Benefits
- Complete 1600 Watt 24V solar power kit
- 8 x MEGA 200W 12V solar panels
- 2 x ALPHA 4 24V 100Ah LiFePO4 batteries
- Approx. 5120Wh total lithium battery storage
- 1 x NOVA 3000W 24V pure sine wave inverter
- 120V AC inverter output
- 1 x 60A MPPT solar charge controller
- 8 x Z bracket sets
- 1 x 30A inline fuse holder with fuse
- 1 x Y branch parallel adapter
- 1 x 2 Gauge 1 ft red inverter battery cable
- 1 x 2 Gauge 1 ft black inverter battery cable
- 1 x 30 ft 10AWG solar cable set for panel-to-controller connection
- 1 x 10 ft 8AWG cable set for controller-to-battery connection
- 1 x 8 ft 4AWG battery cable set
- Built for RVs, cabins, tiny homes, trailers, boats, and off-grid battery systems
